3.2 Width 400*240 TFT LCM: TFT01_3.2W TFT01_3.2WD

3.2 Width 400*240 TFT LCM: TFT01_3.2W TFT01_3.2WD

Display LCD TFT con TouchScreen y zócalo SD.

COD: EF03103

Peso: 0.055 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 685.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

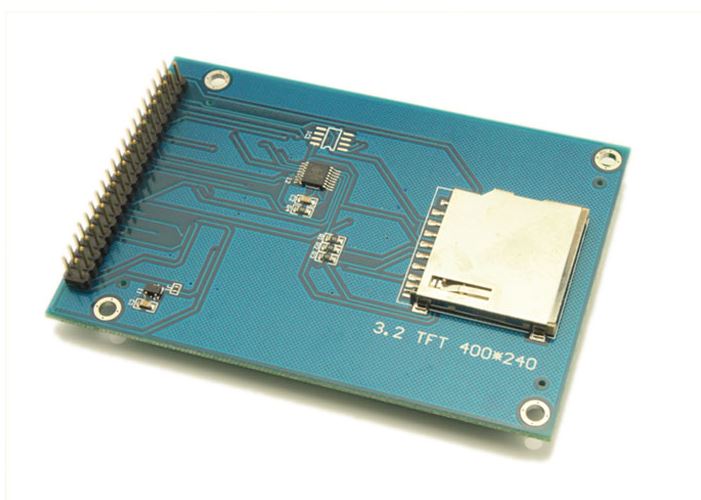

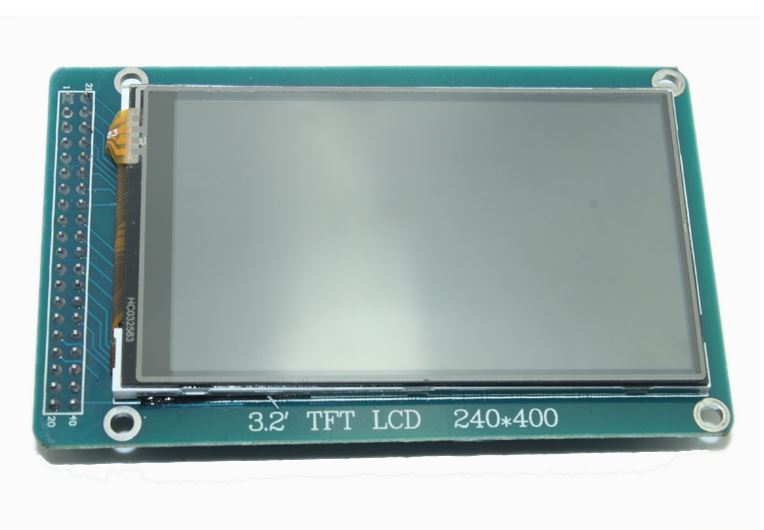

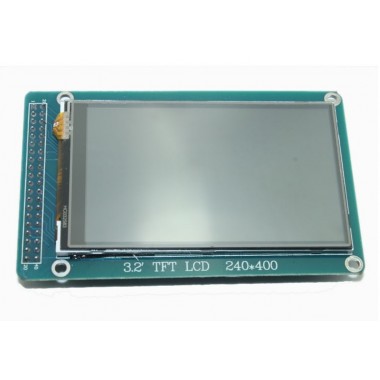

TFT01_3.2WD is a TFT LCD Screen Module, 40pins interface, not just a LCD break but include the Touch, SD card and Flash design. So it's a powerful extension module for your project

Now we provide 400x240 TFT01_3.2WD LCD module used HX8352 for driver IC to replace ILI9327. So you need to use new driver IC's init code to replace ILI9327 init code in demo and library.

Specification:

  • Screen: 262K Colors
  • Driver IC: HX8352, replace of ILI9327
  • High Quality Complete LCD Touch screen Complete Module.
  • LCD screen + Touch Screen, with LCD amp; Touch Screen Controller.
  • 8051 / AVR / PIC low power controller can also drive this LCD easily.
  • High portability! Increase development efficiency amp; lower development cost.7

And we have TFT01 Arduino MEGA shield(Recommand), you can directly plug the TFT01 LCD module in the shield and stand on the Arduino board.

There is a very excellent and powerful enhance Graphic library which written by Henning Karlsen Fully compatible with TFT01 LCD module and TFT01 Arduino Shield. The library is quite a bit faster, and also include more functions. Please reference post from here


Note: TFT01_3.2W is only 16bit mode.

Documents:

Read more: http://www.elecfreaks.com/store/32width-400240-tft-lcm-tft0132w-tft0132wd-p-116.html#ixzz48T4VROYt




Please visit our wiki page for more info about this product. It will be appreciated if you can help us improve the documents, add more demo code or tutorials.
