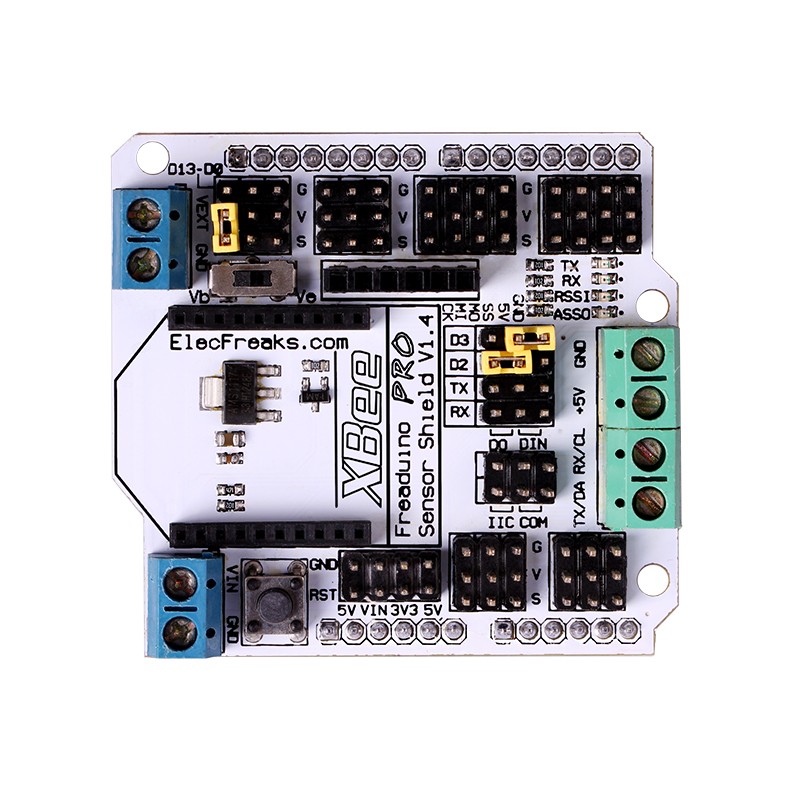

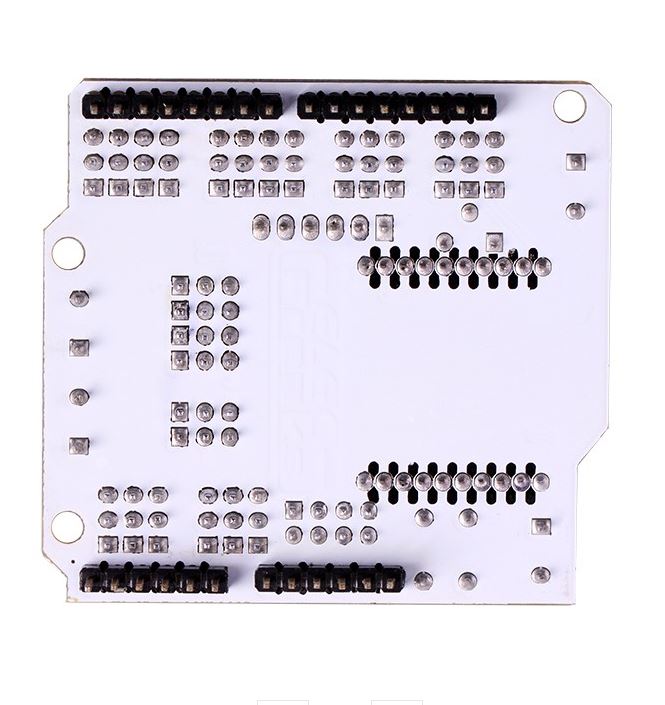

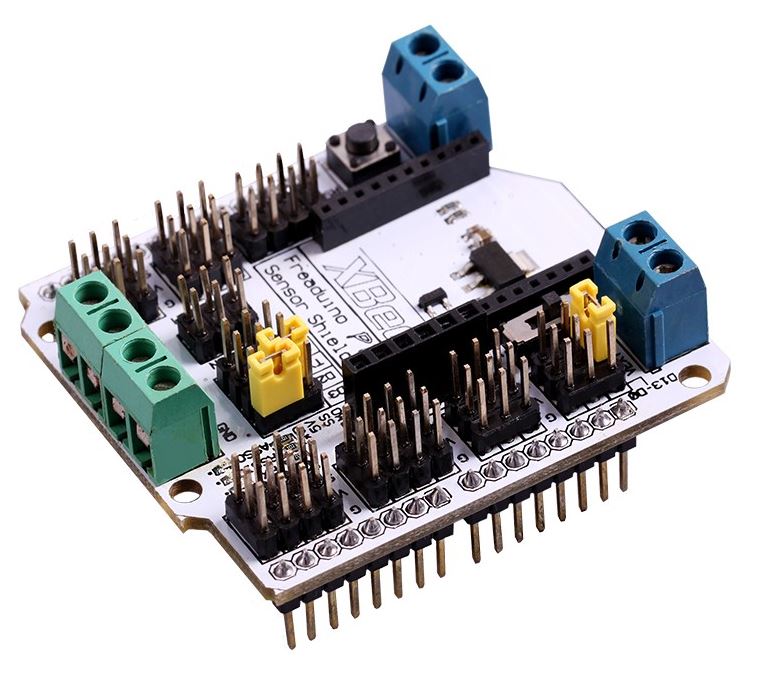

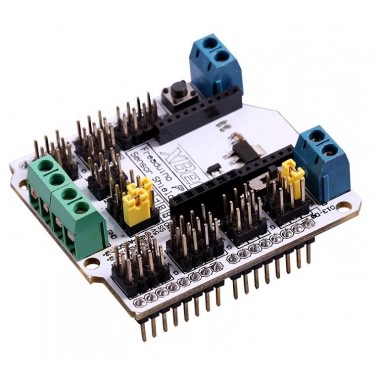

Freaduino Sensor Shield with XBee Shield SHD_SEN01

Freaduino Sensor Shield with XBee Shield SHD_SEN01

Shield expansor de I/O, con zócalo XBee y puerto para Servos.

COD: EF02011

Peso: 0.035 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 341.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Freaduino Sensor Shield is a IO expansion board. It is full compatible with Sensor Shield V4.0 and it is a enhancement version. You can control servo or all kinds of sensors through XBee or our BTBee(HC-06). And external power supply for servo allowed you to drive more powerful servos, and it is optional between 5V on board and external power supply connector.Break out for SPI,IIC and UART bus make bus connect easier.



Specification

  • Power supply for servo optional between 5V on board and external.
  • Support Xbee (Xbee pro)
  • Support BTBee(HC-06)
  • Break out for SPI,IIC,UART BUS
  • Reset button
  • Full compatible with Sensor Shield V4.0

Please visit our wiki page for more info about this product. It will be appreciated if you can help us improve the documents, add more demo code or tutorials.
