Freaduino MP3 Music Shield SHDMP3

Freaduino MP3 Music Shield SHDMP3

Shield reproductor de MP3, con zócalo SD y Joystick.

COD: EF02013

Peso: 0.030 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 521.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

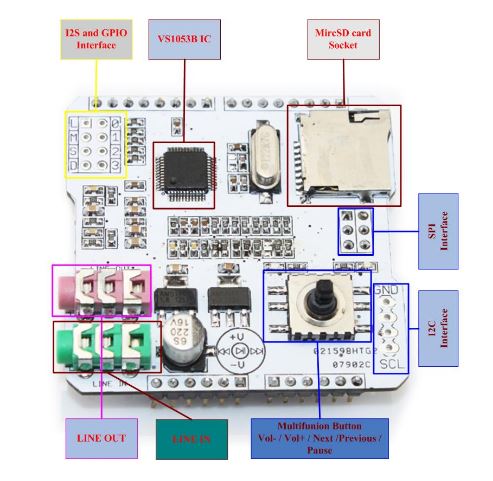

The Freaduino MP3 music player shield is based on VS1053b IC. The VS1053b chip can be used to decode MP3/WAV/MIDI/Ogg/Vorbis format audio file. The MP3 music player shield has SD card socket and a 4 direction Joystick w/ multifunction switch support Vol-/Vol+/Next/Previous/Pause. Its can play a variety of music formats stored on MicroSD cards with Arduino Library.

Its also support I2C LCD display. You can easily use it with our library.

Note :Recording is only supported on Freaduino Mega and Arduino Mega for now.


Features

  • Arduino/Freaduino, Arduino Mega, and Freaduino Mega compatible
  • 2 control-push buttons and 1 knob switch
  • Plays music from micro SD cards Decodes:MP3,WAV,MIDI,Ogg Vorbis
  • I2S interface for external DAC
  • Headphone/Line Out for playback
  • Line In for recording in OGG format
  • Excellent sound quality with +-1dB Frequency Response
  • FCC verification


Please visit our wiki page for more info about this product. It will be appreciated if you can help us improve the document, add more demo code or tutorials.
