SeeedStudio BeagleBone Green

SeeedStudio BeagleBone Green

Nueva BeagleBone Green! Basada en el diseño de la popular BeagleBone Black.

COD: SE102010027

Peso: 0.045 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 107286.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

SeeedStudio BeagleBone Green (BBG) is a joint effort by BeagleBoard.org and Seeed Studio. It is based on the open-source hardware design of BeagleBone Black and developed into this differentiated version.

The BBG has included two Grove connectors, making it easier to connect to the large family of Grove sensors. It has also updated the 5V barrel to micro USB host.

BBB VS BBG

Check the Compatible License from BeagleBoard.org.

BeagleBone Black (BBB)


BeagleBone Black (BBB)

SeeedStudio BeagleBone Green (BBG)


SeeedStudio BeagleBone Green (BBG)

• Processor: AM3358 1GHz ARM® Cortex-A8 • Processor: AM3358 1GHz ARM® Cortex-A8
• 512MB DDR3 RAM • 512MB DDR3 RAM
• 4GB 8-bit eMMC on-board flash storage • 4GB 8-bit eMMC on-board flash storage
• 3D graphics accelerator • 3D graphics accelerator
• NEON floating-point accelerator • NEON floating-point accelerator
• 2x PRU 32-bit microcontrollers • 2x PRU 32-bit microcontrollers
• USB client for power & communications • USB client for power & communications
• USB host • USB host
• Ethernet • Ethernet
• 2x46 pin headers • 2x46 pin headers
• HDMI port • 2xGrove connectors

* The software of BBG is fully compatible with that of BBB and the existing capes of BBB can also be well applied on BBG.

** BBG is both CE and FCC certified.

Basic Demo
Basic Demo

Basic Demo - Intelligent alarm system made with BBG (IoT)

It is an IoT demo which we can monitor the temperature on the internet in real time. As long as it exceeds the threshold and lasts for 1 minute, a warning email will be sent to you. Learn more at our Recipe.

Support from Grove Family

  • Grove - 3-Axis Digital Gyro (I2C)
  • Grove - 3-Axis Digital Compass (I2C)
  • Grove - IMU 10DOF (I2C)
  • Grove - Digital Light (I2C)
  • Grove - Temperature& Humidity (I2C)
  • Grove - Barometer (I2C)
  • Grove - Finger-clip Heart Rate (I2C)
  • Grove - GPS UART
  • Grove - IR Distance Interrupter (I/O)
  • Grove - Light Sensor
  • Grove - Rotary Angle Sensor
  • Grove - Sound Sensor
  • Grove - Relay
Check out the updated full list
Note: Grove - RTC is not compatible with
Beaglebone Green as it requires 5V.

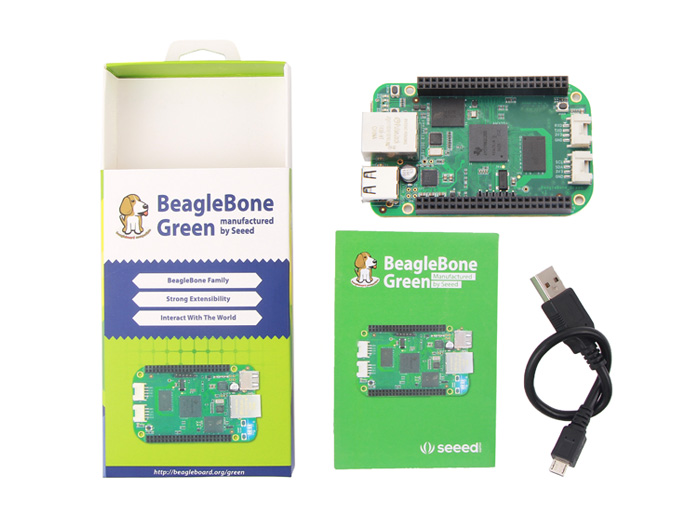

Part list
  • SeeedStudio BeagleBone Green x 1
  • USB Cable x 1
  • User Guide x 1
Documents
Please visit our Wiki page for more info about this product. It will be highly appreciated if you can help improve the documents, add demo codes or tutorials. For technical support, please post your questions to our Forum.
