BeagleBone Green HDMI Cape

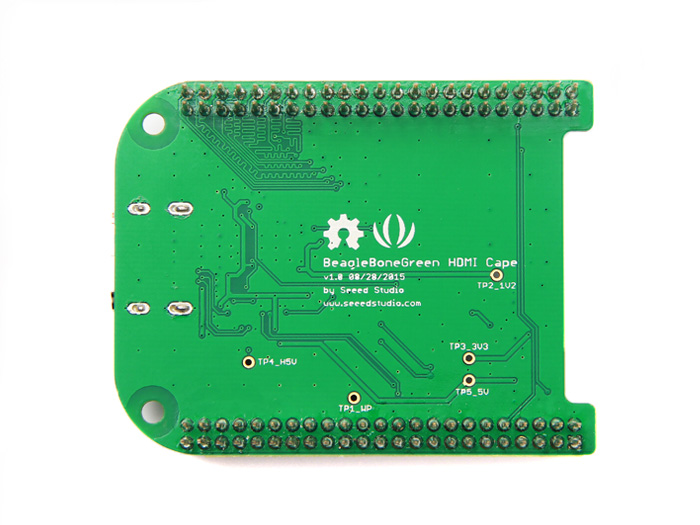

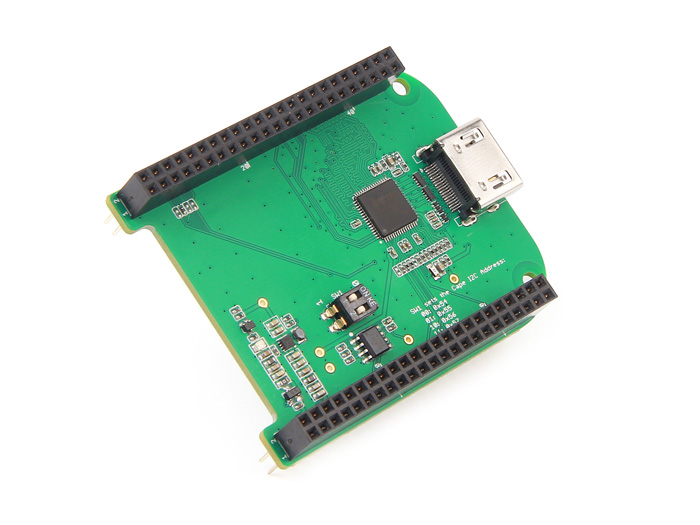

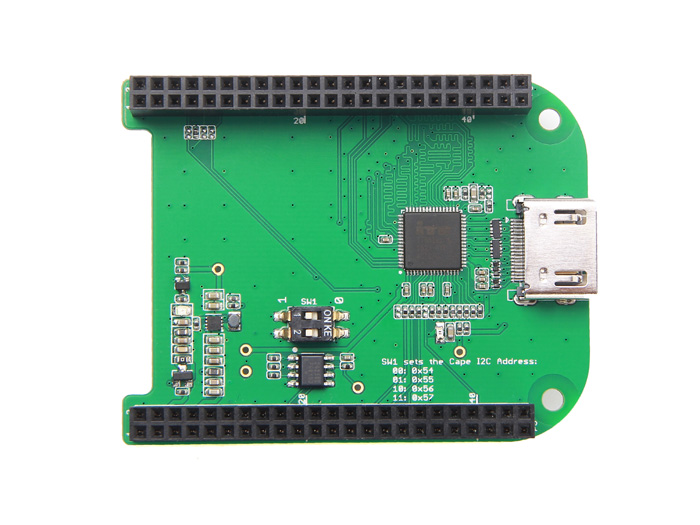

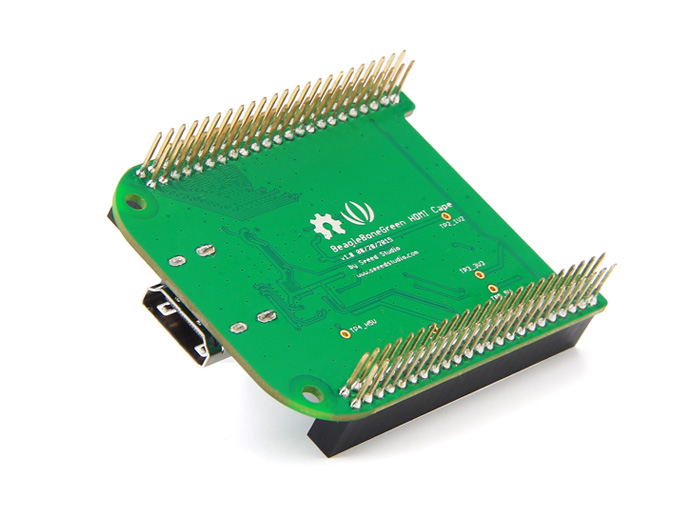

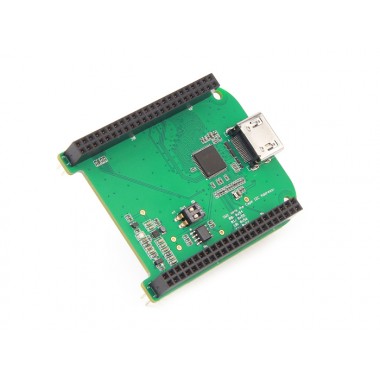

BeagleBone Green HDMI Cape

HDMI Cape para BeagleBone Green

COD: SE103030034

Peso: 0.027 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 33786.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description

BeagleBone Green HDMI Cape is a general integrated HDMI connector for expanding your BeagleBone to a rich variety of peripherals such as computer monitor, video projector, digital television, or digital audio device. This board features a standard HDMI receptacle that can be connected to a monitor with a standard HDMI-to-HDMI cable. All HD signals are supported, and the output resolution is 1280×720. It also can be used to transmit audio information. This product will make your applications based on BeagleBone board more versatile for different occasions.
Features

Plug and play.

Adapter to different input signal.

720P(1280×720) output resolution.

Specification

Input voltage: 5V/3.3V

Maxium operating current: 80 mA

HDMI version: Version 1.2

Maxium Output resolution: 1280x720 @60Hz

Audio transmission: Available

Chip: IT66121 HDMI Framer

Basic Demo

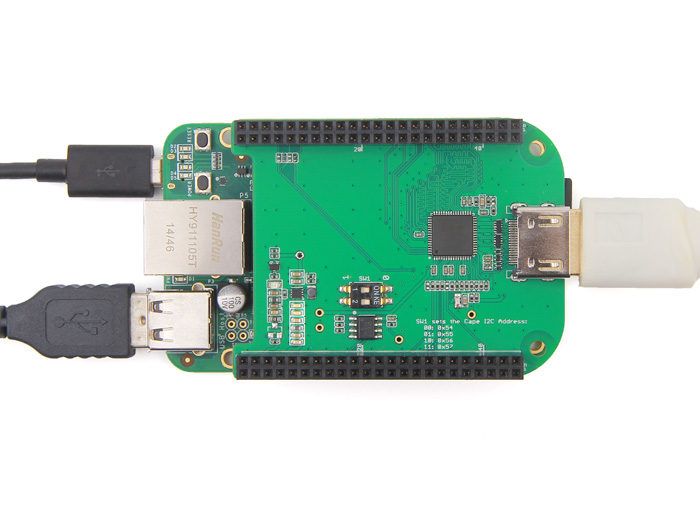

It is a demo which we plug BeagleBone Green HDMI Cape into shield of BeagleBone Green board�? and connect to our computer, then we can open Chromium browser to surf internet or play music.



Documents

Please visit our Wiki page for more information about this product. It will be much appreciated if you can help improve the documents, add more demo codes or tutorials. For technical support, please post your questions to our Forum.

Download fireware: https://www.dropbox.com/s/v5hsb2my4y4pjrl/hdmi-cape-test-2015-10-26.img.7z?dl=0
