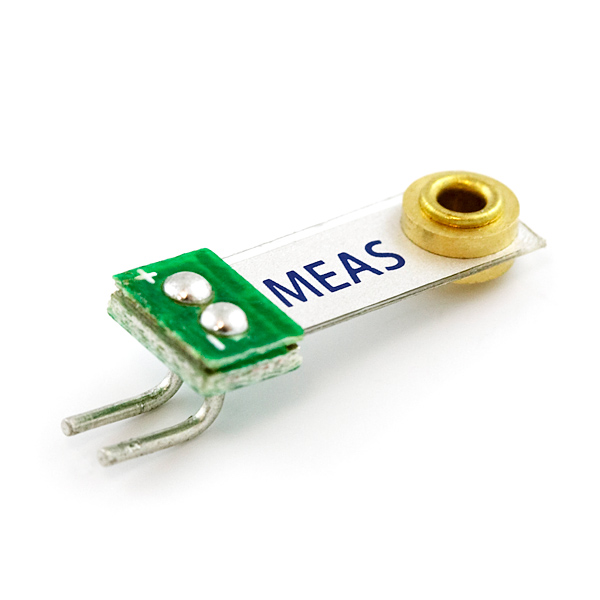

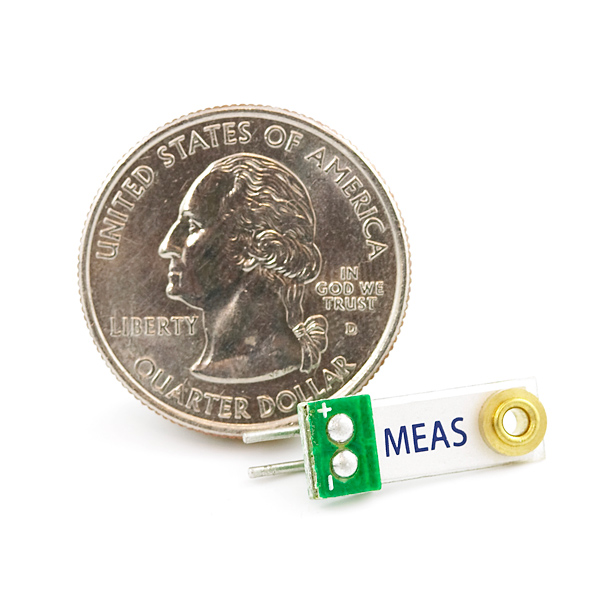

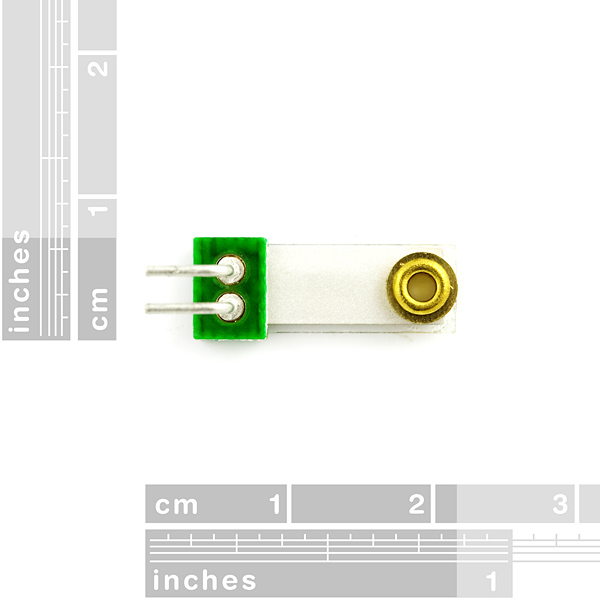

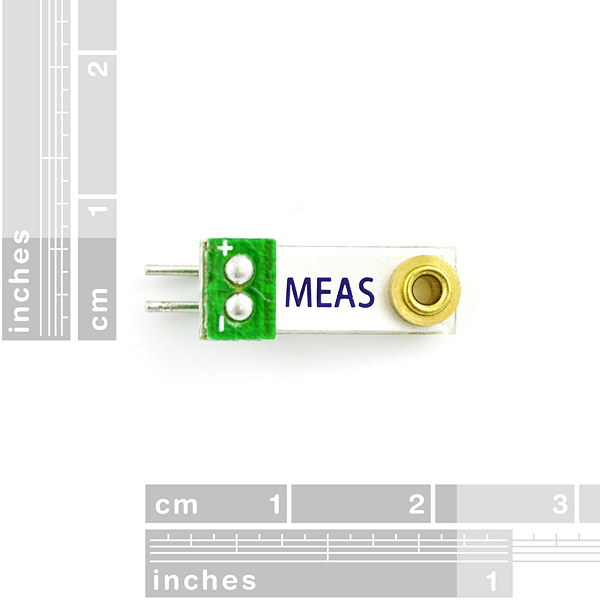

Piezo Vibration Sensor - Small Vertical

Piezo Vibration Sensor - Small Vertical

Sensor de vibración de alta sensibilidad.

COD: SFSEN09199

Peso: 0.001 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 109.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

The Minisense 100 from Measurement Specialties is a low-cost cantilever-type vibration sensor loaded by a mass to offer high sensitivity at low frequencies. Useful for detecting vibration and ‘tap’ inputs from a user. A small AC and large voltage (up to +/-90V) is created when the film moves back an forth. A simple resistor should get the voltage down to ADC levels. Can also be used for impact sensing or a flexible switch.

Comes with solder pins that allows for vertical mounting.

Features:

  • Flexible PVDF Piezo Polymer Film
  • Wide dynamic range
  • Laminated for higher voltage output
  • Breadboard friendly leads
