2-Channels Opto Sensor

2-Channels Opto Sensor

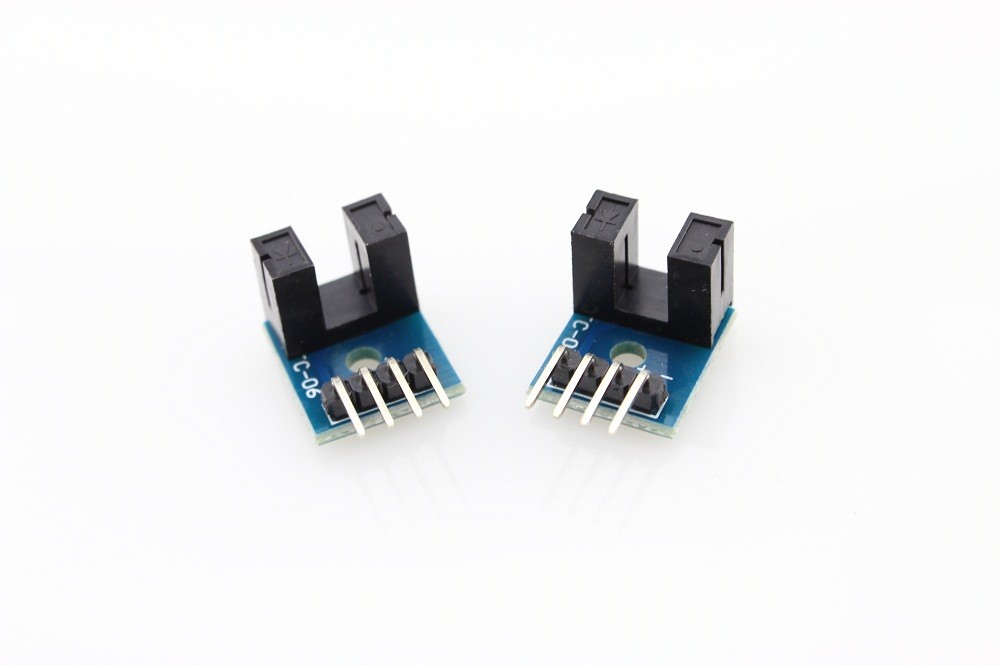

Opto interruptor ranurado de dos canales. Detecta si algo atraviesa la ranura que separa el emisor del receptor infrarojo. Puede utilizarse para construir sensores de posición sin contacto, o también para medir la velocidad de giro de un motor mediante un disco ranurado.

COD: ESPS21211S

Peso: 0.015 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 11625.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description

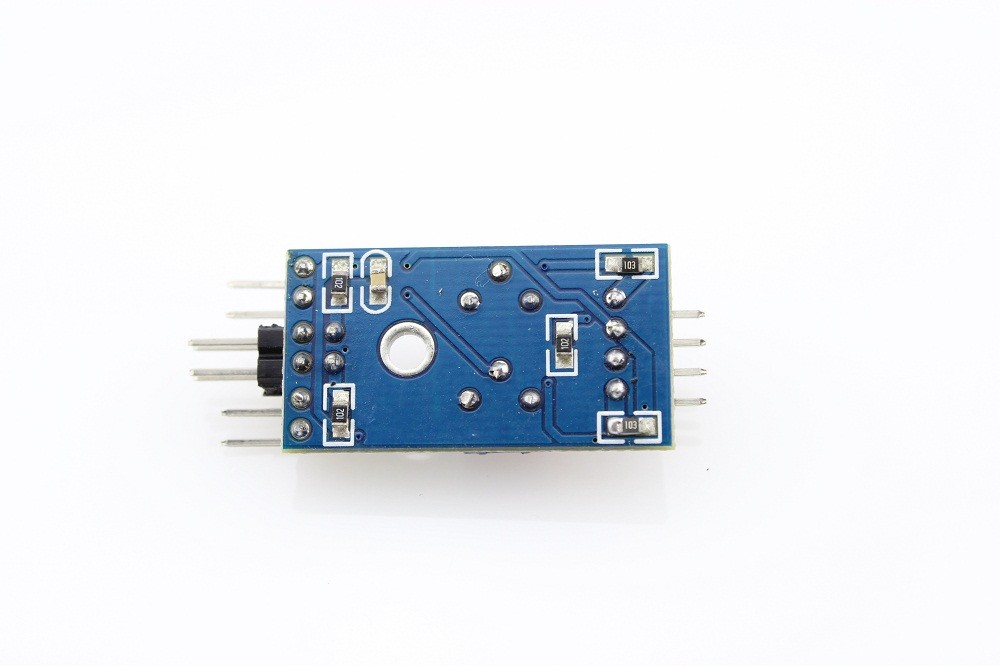

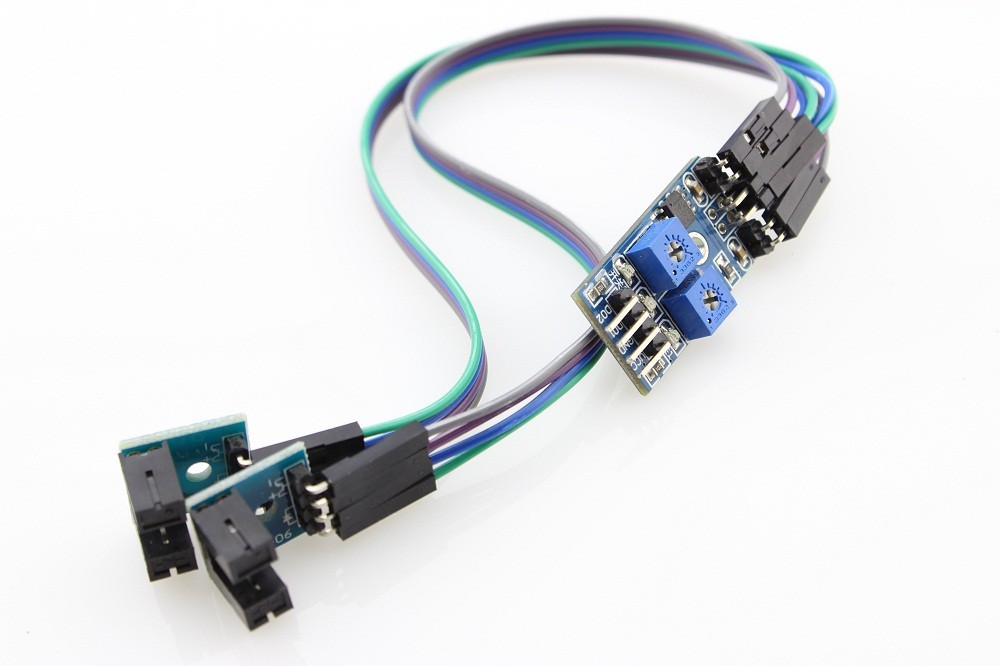

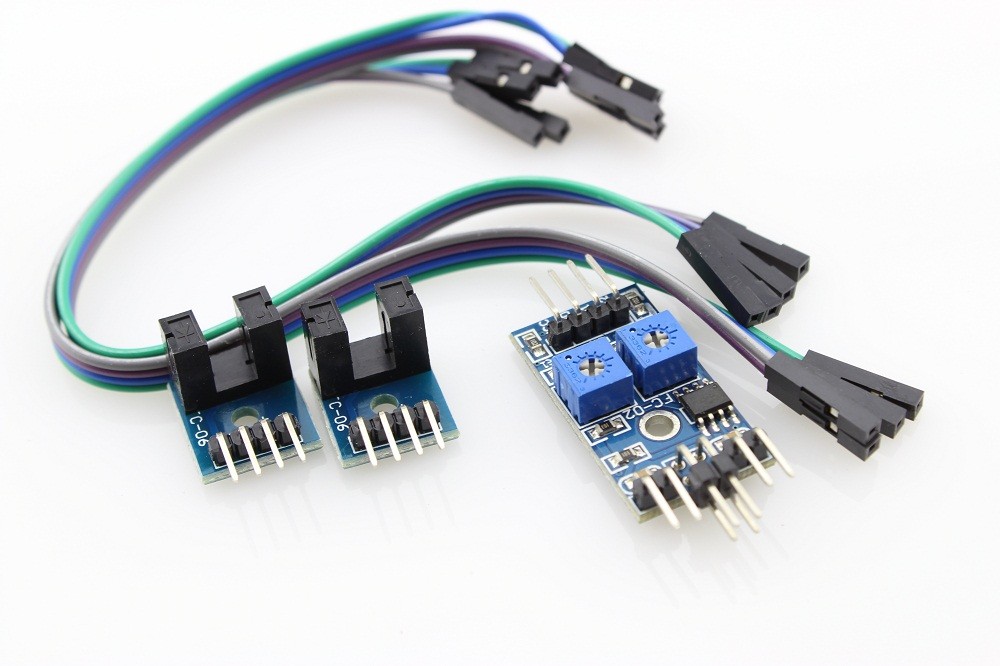

This 2-Channels Opto Sensor is consist of 3 parts: 2 opto-emitters and receivers, one PCBA to adjust the sensitivity and map out the signal. With this sensor, you can measure if there are the objects in the measuring range, eapacilly useful in applications that you need to monitor the inputs&outputs of a system.

When the opto sensor didn't covered , the D0 output logic LOW, the signal indicate LED light, when the opto sensor covered, the D0 output logic HIGH and the LED off, adjust the potentiometer can adjust the sensitivity of the sensor.

Application Idea

  • Monitoring & Measuring

Specification

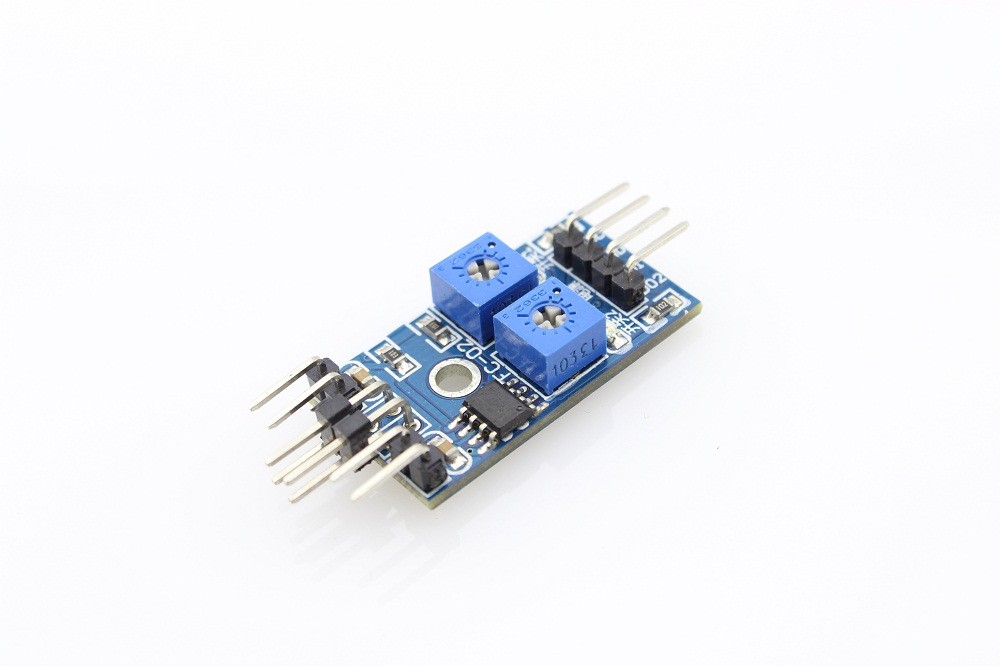

  • On-board LM393 to asjust the sensitivity
  • Voltage: 3.3V-5V
  • Digital Output
  • Covered the sensor, output 0, not covered the sensor,output 1
  • Dimension: 3.2cm x 1.7cm
