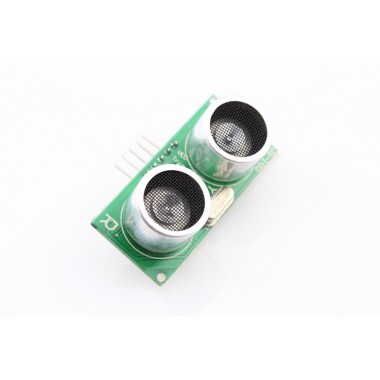

US-100 Ultrasonic Ranging Sensor

US-100 Ultrasonic Ranging Sensor

Sensor de distancia ultrasónico, con sensor de temperatura integrado para reducir error en mediciones de diferentes ambientes. Rango: 2 - 450 cm. Incorpora salida de eco tipo TTL y comunicación UART.

COD: ESUS100UL

Peso: 0.010 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 130.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

The US-100 ultrasonic sensor module is a compact, high-quality module for distance measurement. It can detect objects, obstacles, and walls up to a distance of 4.5-meters range. It is ideal for mobile robot applications. US-100 operation is based on reflective echo principle. A host microcontroller determines distance by triggering the US-100 module and then measuring the echo time indicated by the pulse width output of the sensor.

    Contrast to the other ultrasonic ranging sensor, there is a build-in temperature sensor on the US-100 for accurate ranging even on varying ambient temperatures. Selected by the jumper, this sensor can also work in UART mode (band rate 9600) or GPIO mode, which makes you more convenient when making your applications.

Specification

  • Power Input: 3V-5VDC @ 3.5mA typical
  • Technology: 40KHz Ultrasonic Sonar
  • Trigger Input: TTL
  • Induction Angle: no more than 15 degrees
  • Detection range: 2 cm-450 cm
  • High precision: up to 3 mm
  • Echo Output: TTL
  • PCB Dimensions: 20 x 45 mm

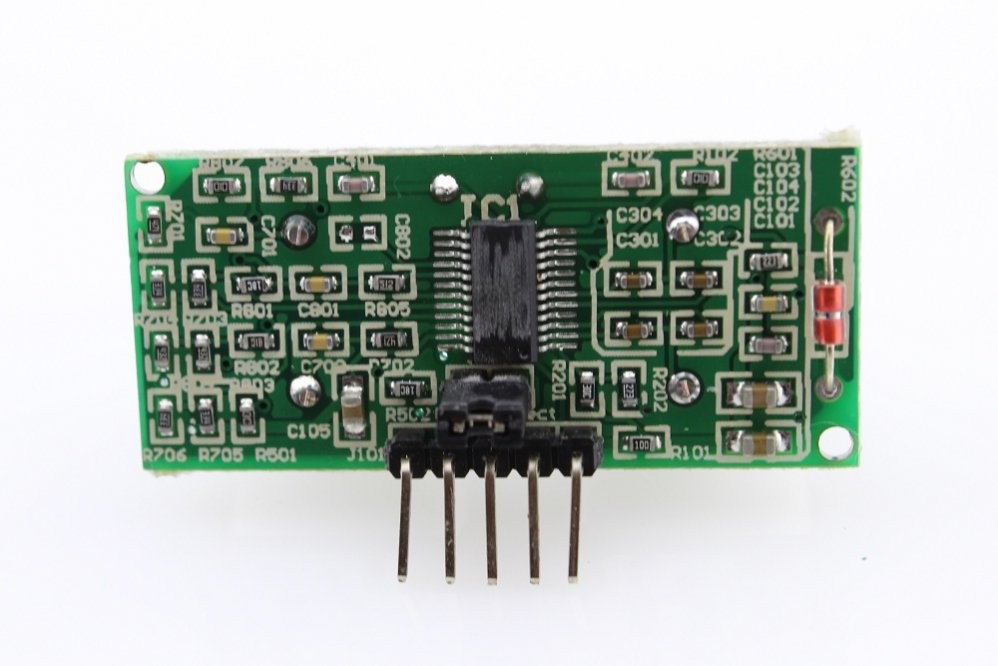

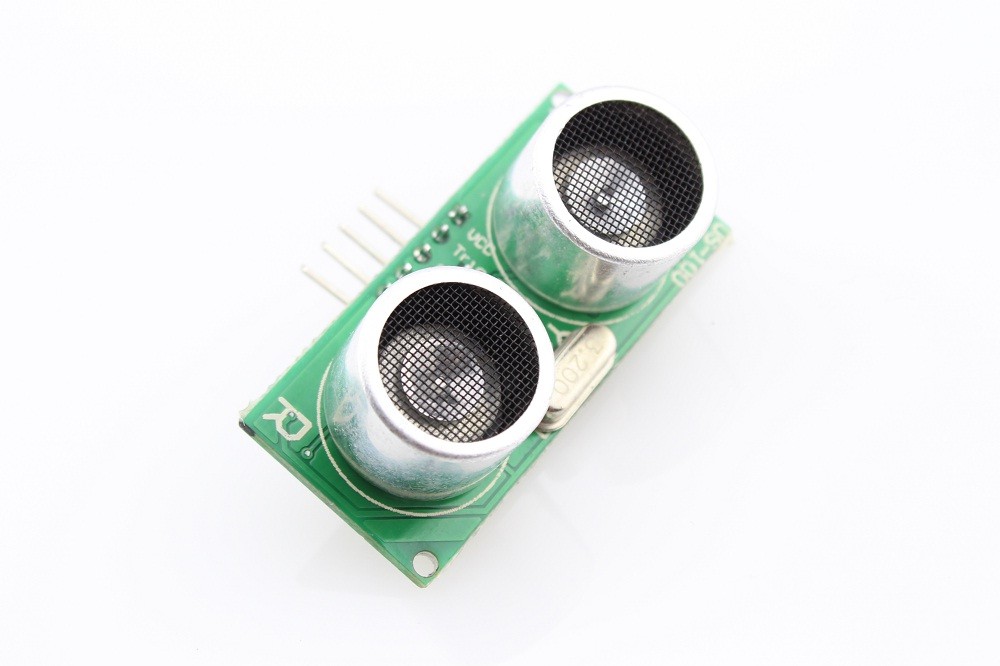

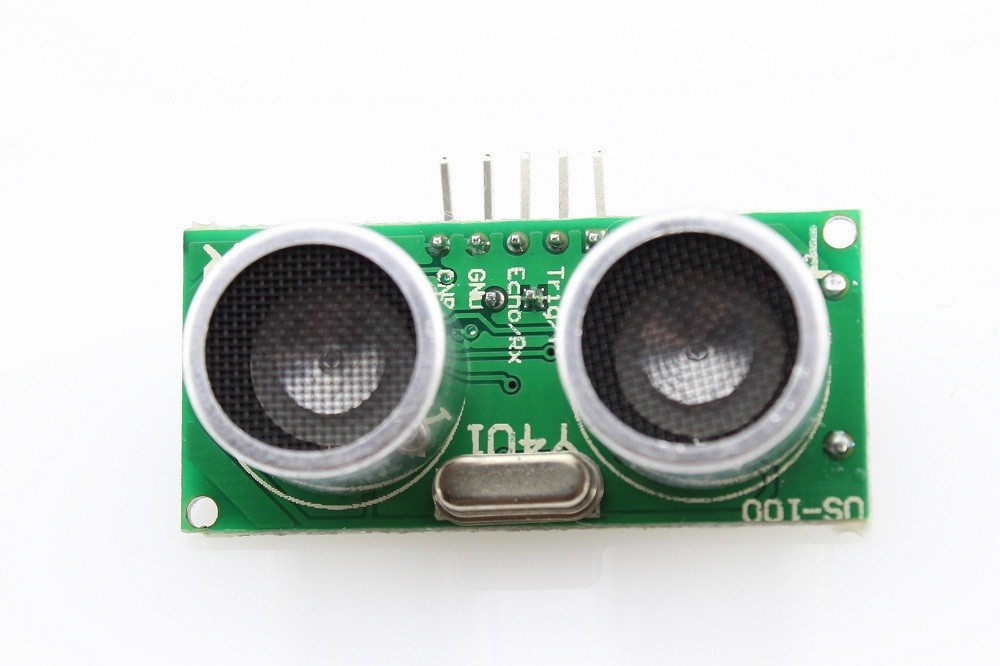

Galería de Imágenes
