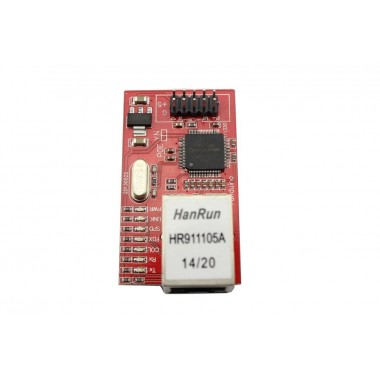

W5100 Ethernet Module

W5100 Ethernet Module

Módulo Ethernet basado en el chip W5100, para brindar Internet a tus desarrollos. Incluye regulador de tensión para permitir alimentarlo directamente con 5V.

COD: ECIA51002C

Peso: 0.013 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 60000.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

W5100 is a multifunctional Monolithic network interface chip, internal integrate a 10/100 Ethernet controller , it apply to a embedded system which is High-Integrate, high-stability, high-performance but low-cost. By using it, we can complete the internet linking without operating system supporting. W5100 compatible with IEEE802.3 10BASE-T and 802.3u100BASE-TX. W5100 internal integrate TCP/IP,MAC,PHY with full hardware control. We just need to have some simple socket programming rather than considering the control of the Ethernet when we use the W5100.

Features

  • Support Hardwired TCP/IP Protocols : TCP, UDP, ICMP, IPv4 ARP, IGMP, PPPoE, Ethernet
  • 10BaseT/100BaseTX Ethernet PHY embedded
  • Support Auto Negotiation (Full-duplex and half duplex)
  • Support Auto MDI/MDIX
  • Support ADSL connection (with support PPPoE Protocol with PAP/CHAP Authentication mode)
  • Supports 4 independent sockets simultaneously
  • Not support IP Fragmentation
  • Internal 16Kbytes Memory for Tx/Rx Buffers
  • 0.18 µm CMOS technology
  • 5V I/O signal tolerance
  • Small 80 Pin LQFP Package
  • Multi-function LED outputs (TX, RX, Full/Half duplex, Collision, Link, Speed)
  • Support Serial Peripheral Interface(SPI MODE 0, 3)

Package list

  • W5100 x1

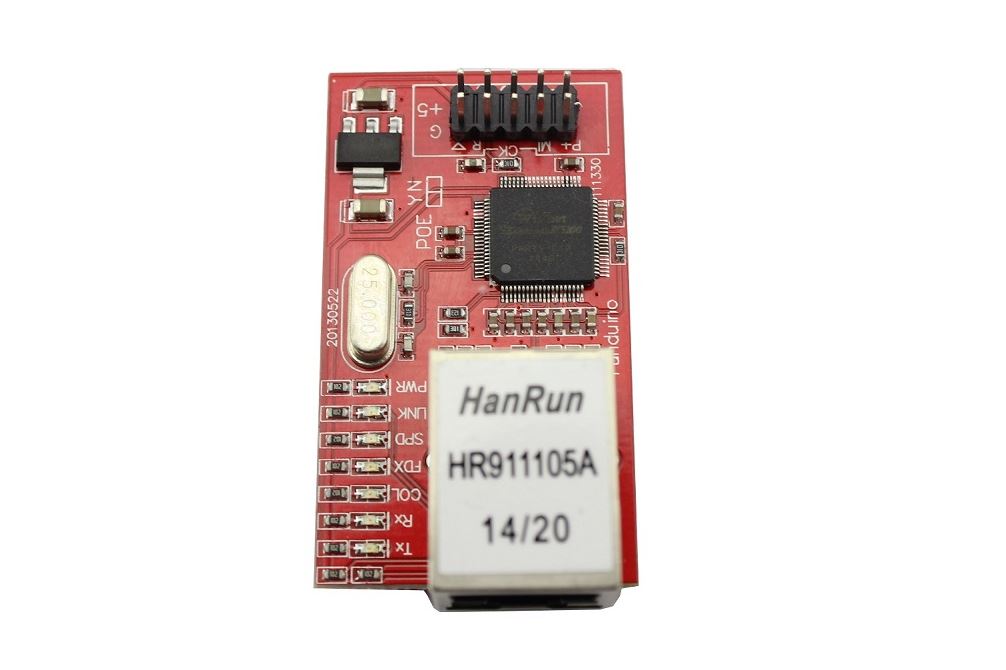

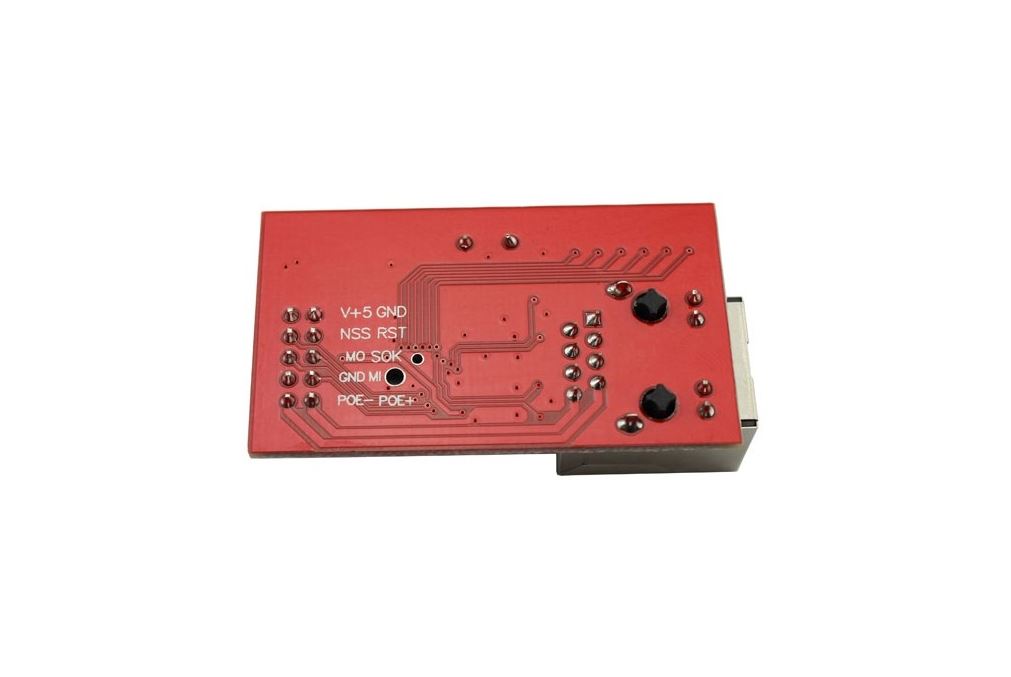

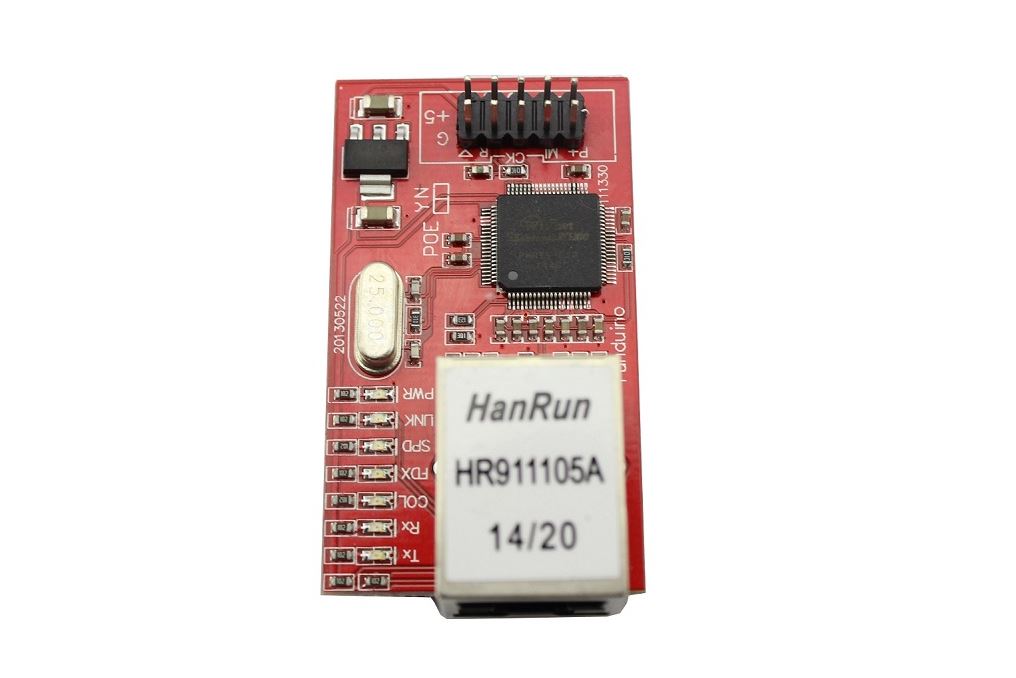

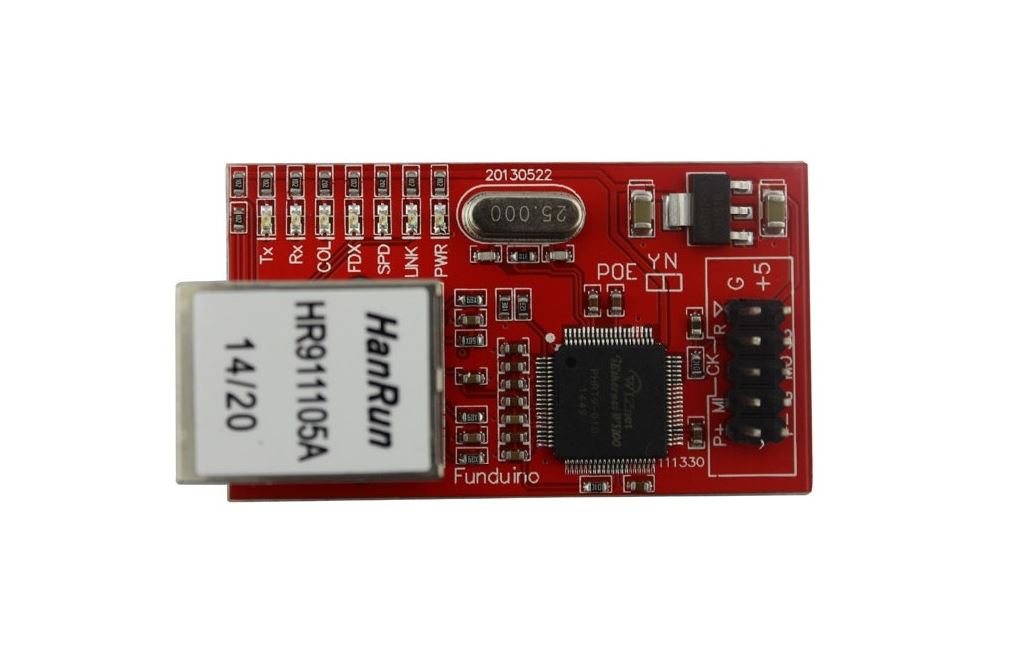

Galería de Imágenes
