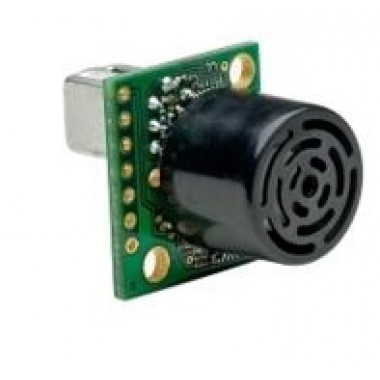

I2CXL-MaxSonar-EZ0

I2CXL-MaxSonar-EZ0

Sensor de distancia de largo alcance (25~725cm) y gran angular, con autocalibración y comunicación I2C

COD: MB1202

Peso: 0.010 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 69400.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Product Description

The I2CXL MaxSonar EZ sensors now feature an I2C bus. This allows for easy I2C integration and multisensor operation using a single bus.

The I2CXL MaxSonar EZ0 offers the widest and most sensitive beam pattern of the I2CXl MaxSonar EZ sensors that are offered. This makes the I2CXL MaxSonar EZ0 an excellent choice wherever wide beam detection, reliable people detection, or reliable small obstacle detection are required.

The sensor is small in size, yet the high output acoustic power combined with continuously variable gain, real-time background automatic calibration, real-time waveform signature analysis, and real-time noise rejection algorithms results in virtually noise free distance readings for most users. This holds true even in the presence of many of the various acoustic or electrical noise sources. The I2CXL MaxSonar EZ sensor line is factory calibrated to match the sensor beam patterns and provides a long range detection zone.



Product Specifications

Downloads:

I2C QuickStart Guide Using an I2C MaxSonar With an Arduino
Sensor Selection Guide Sensor Selection Guide
  • Resolution of 1 cm
  • Up to 40Hz reading rate
  • Simple I2C bus interface
  • Easy control of multiple sensors
  • Control up to 127 sensors using two wires
  • 42kHz Ultrasonic sensor measures distance to objects
  • RoHS Compliant
  • Virtually no dead zone, objects closer than 25 cm range as 25 cm
  • Operates from 3.0-5.5V
  • Low 4.4mA average current requirement
  • Small, light weight module
  • Designed for easy integration into your project or product
  • Operational Temperature from 0C to +65C (32F to +149F)
  • Real-time automatic calibration (voltage, humidity, ambient noise)
  • Firmware filtering for better noise tolerance and clutter rejection
  • 200,000+ Hours Mean Time Between Failure
  • Widest beam pattern in I2CXL-MaxSonar-EZ sensor family


Product Documentation

 Product 3D Models

Key Shot IGES File ACIS 7.0 File Solid Works Part
STL File STEP File ParaSolid Part
