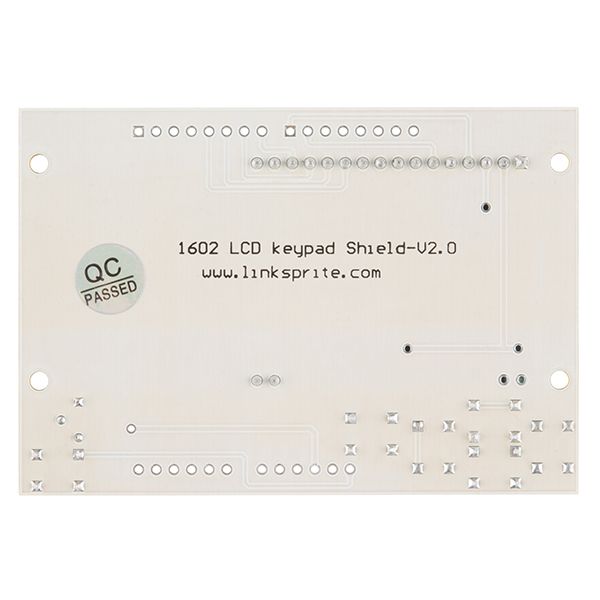

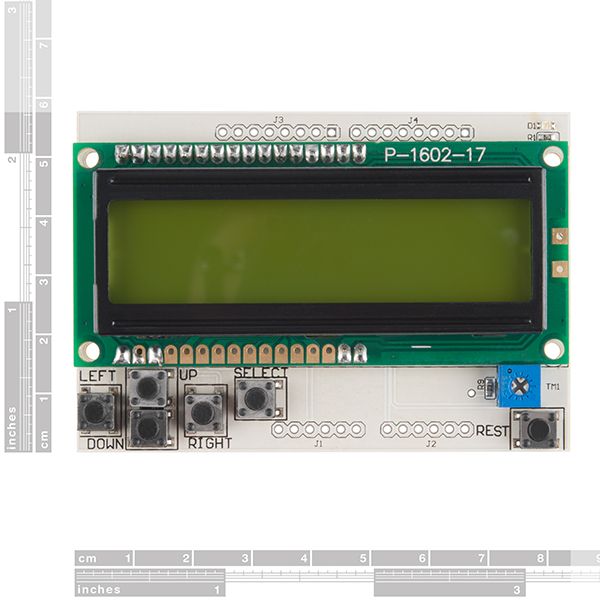

LCD Button Shield V2
Proveé a tu Arduino de un display LCD 16x2 con teclado de 5 pulsadores!
Peso: 0.105 Kg
Disponibilidad: Sin Stock
El producto no está disponible para la venta en este momento

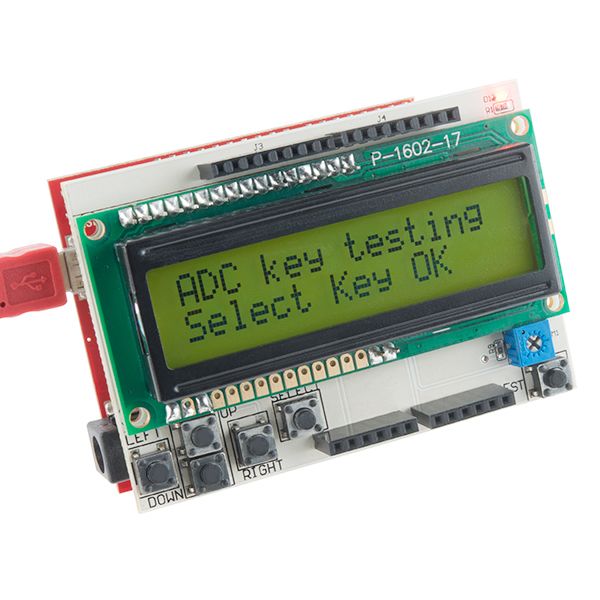

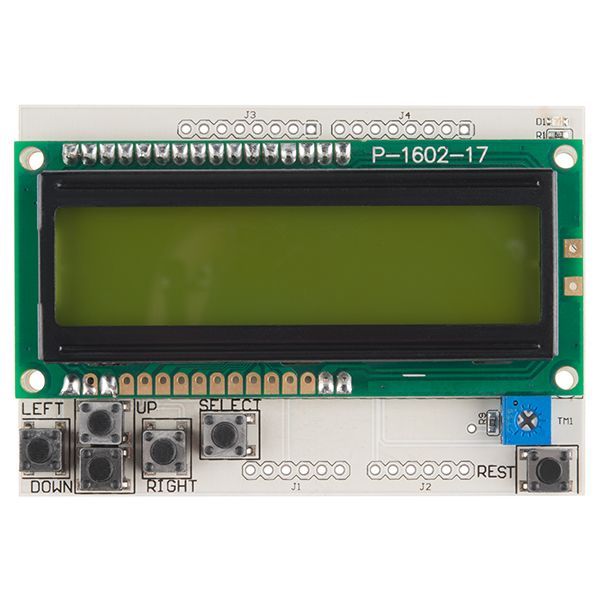

Description: Do you need an easy to use interface for your LCD screen? The LCD Button Shield V2 attaches to your Arduino to provide a 16x2, black character, green back light LCD with a keypad consisting of 5 keys — select, up, right, down and left. With this shield you will be able to move through menus and make selections straight from one board attached to your Arduino without requiring a massive tower of shields.
The LCD Button Shield V2 works perfectly in 4-bit mode with the “LiquidCrystal” library found in the Arduino IDE, using this library will allow you to control the LCD with only 6 digital I/O lines. Version 2 of this shield provides you with the capability of pushing multiple buttons at once and combining the results. No longer will you be restrained to only 5 inputs, now you have the ability to make use of 32 different button combinations!
Check the LCD Button Shield V2 Wiki link is the Documents section below for example code, schematics, and additional information.

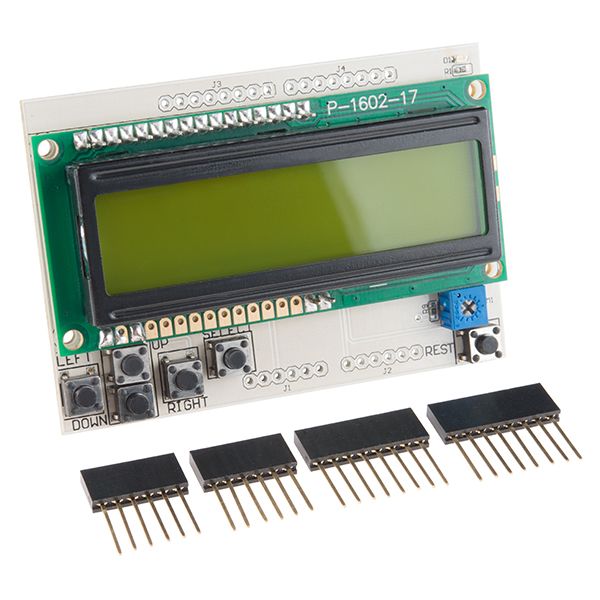

Note: Headers are included with this shield but not soldered on.
