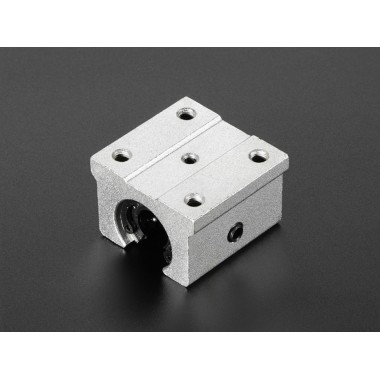

12mm Diameter Slider Platform - SBR12UU

12mm Diameter Slider Platform - SBR12UU

Plataforma deslizante de bolas recirculantes cilíndrica ranurada de 12mm de diámetro, para riel de barra cilíndrica (no incluido). Ideal para CNCs.

COD: D001183

Peso: 0.087 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 482.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

DESCRIPTION

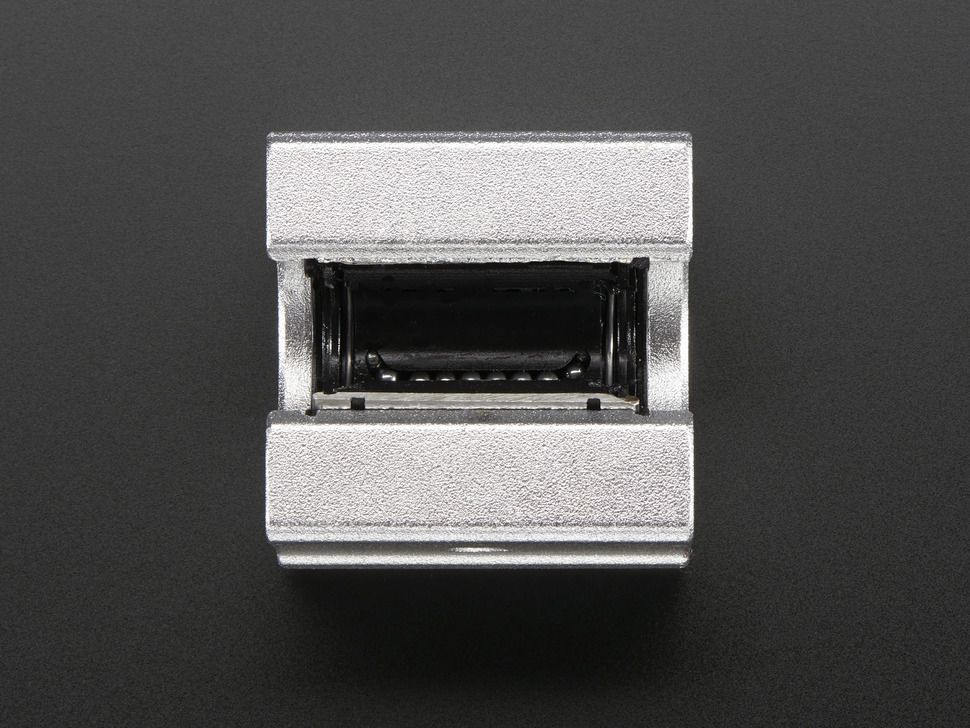

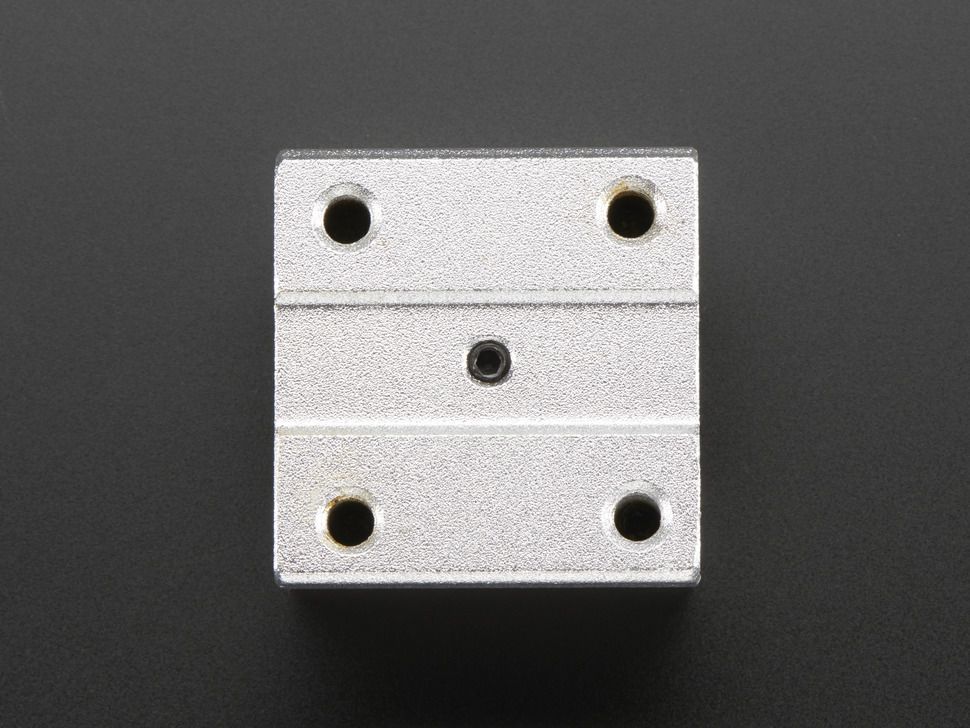

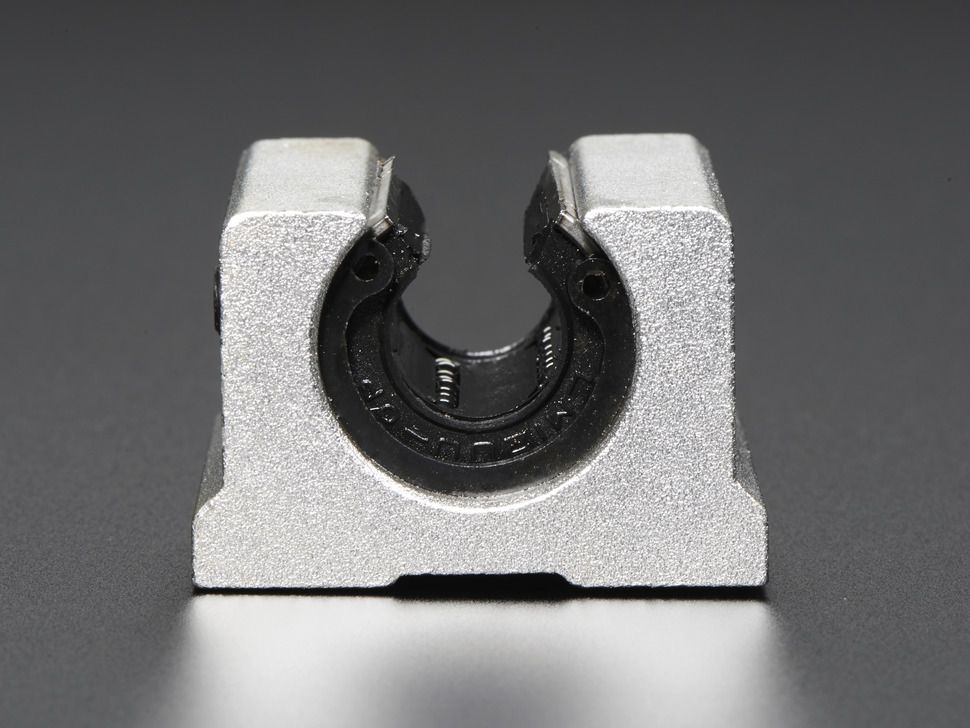

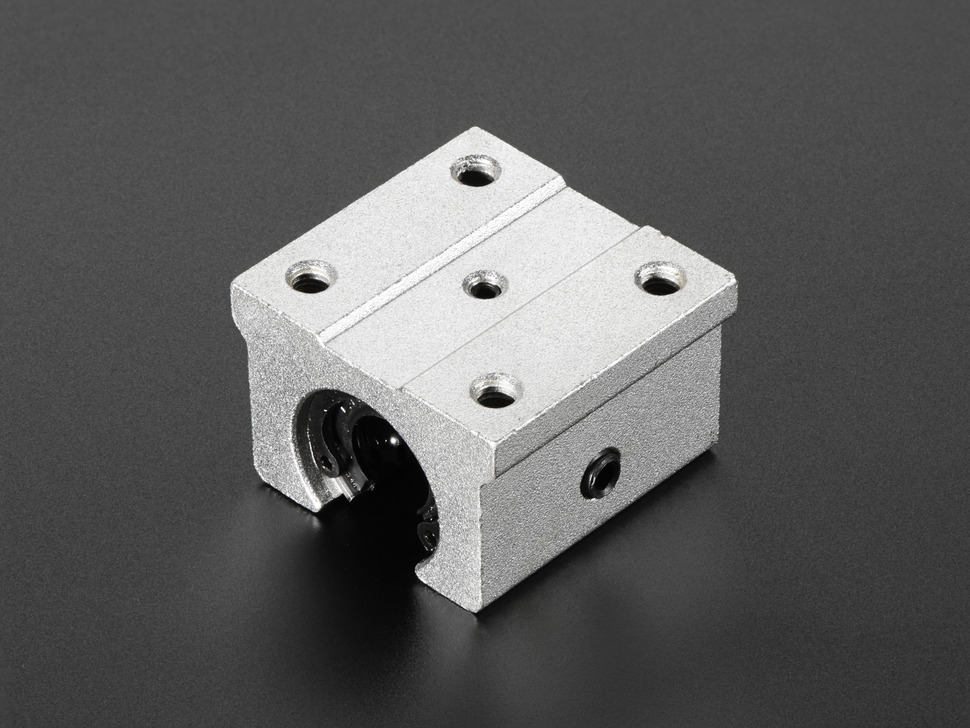

Make your robot or CNC move on our Aluminum Slide Rail with this sliding ball-bearing platform. The slider is 39mm x 36mm and has four holes tapped for M5 machine screws so you can attach pretty much anything you want. This slider has a plastic interior with small metal ball bearings to make it slide easily and smoothly.

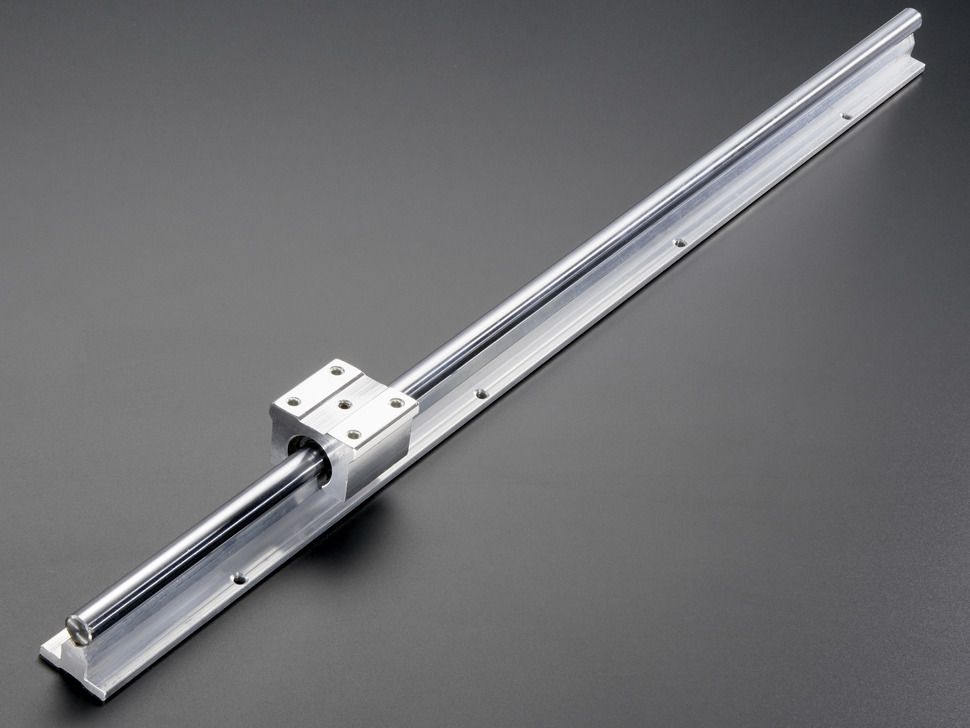

The platform won't come off the railing but it does rotate a bit around so for best stability, use two support rails. Often times, CNC projects will have two of these on opposite sides of the machine body to support a larger platform. You can also have some other support mechanism of your own devising.

Comes as a single bearing platform. You'll want to pick up at least one 12mm railing as well. We have a bunch of bearings, supports and platforms that you may want to use with an 8mm based rail system so check out our CNC category



VIDEO



TECHNICAL DETAILS

  • Load-bearing Mechanism: Hydrostatic Bearing
  • Bearing Shell Material: Plastic

Dimensions:

  • 39mm x 36mm x 27mm / 1.5" x 1.4" x 1"
  • Width of Top: 40mm / 1.6"
  • Inside Diameter: 12mm / 0.5"
  • Outer Diameter: 30mm / 1.2"
  • Mounting Hole Diameter: 4mm / 0.16"
  • Mounting Hole Distance: 28mm x 26mm / 1.10" x 1.02"
  • Weight: 87.4g

Galería de Imágenes

Comentarios

Escribir Comentario

OpenHacks (01/02/2016 - 15:04)

Hola Juan, podes ver la plataforma en acción en este video (a partir del minuto 4) https://www.youtube.com/watch?v=MLK9wk46msM . Saludos!

juan brunero (29/01/2016 - 15:50)

hola, si el eje en que esta rota la plataforma también rota o si se fija a una pared el eje puede rotar fácilmente ademas de deslizarse
