Cactus Micro Rev2 Arduino compatible plus esp8266

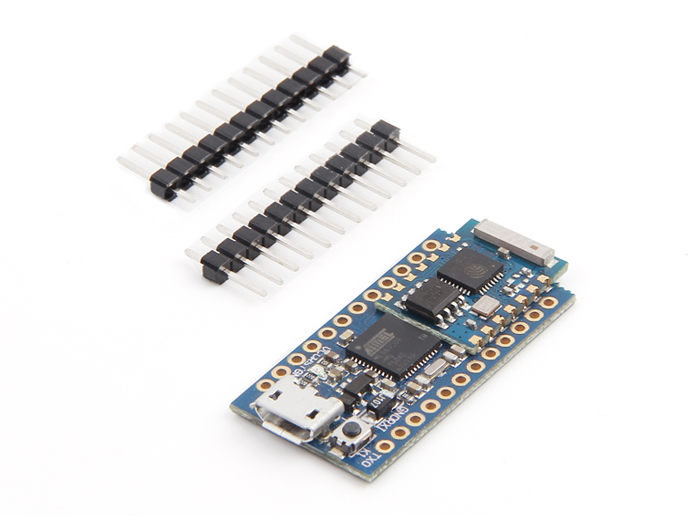

Vista_Principal

Placa integrada de desarrollo que combina Arduino y un modulo Wi-Fi (ESP8266), ideal para desarrollos de Internet of Things (IOT).

COD: SE317060018

Peso: 0.003 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 510.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Introduction

Cactus Micro is our integrated developement board, we have mixed Arduino with WI-FI into a single board. It is targeted for makers to develop low power Internet-Of-Things (IoT) projects quickly and easily.
The revision 2 use hardware serial port Serial1 as default option. It also Added some jumpers for connect esp8266 GPIO. For some usage such as I2C.

What makes it special?

Cactus Micro is tiny size Arduino compatible dev board. It's built-in a esp8266 module (esp-03).


Features

  • Built-in ESP8266 WIFI module
  • ATmega32U4 running at 3.3V/8MHz
  • Supported under Arduino IDE 1.0.6
  • On-Board micro-USB connector for programming
  • 4 x 10-bit ADC pins
  • 12 x Digital I/Os (5 are PWM capable)
  • Rx and Tx Hardware Serial Connections

Getting Started

Open Arduino IDE and choose board "LilyPad USB" to start playing with your Cactus Micro in just a few easy steps.

How it works
  • The ESP8266 chip communicates with ATMega32U4 through the hardware serial port Serial1.
  • The pin 13 is connected to pin CH_PD of ESP8266. Put the pin 13 high to enable ESP8266 chip.

Part List:
  • 1 xCactus Micro
  • 1x ESP8266 module (ESP-03)
  • 1x Male headers (Not soldering)

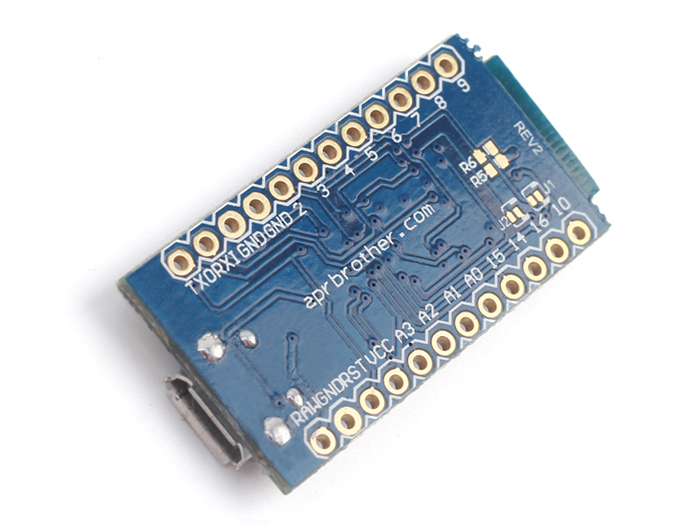

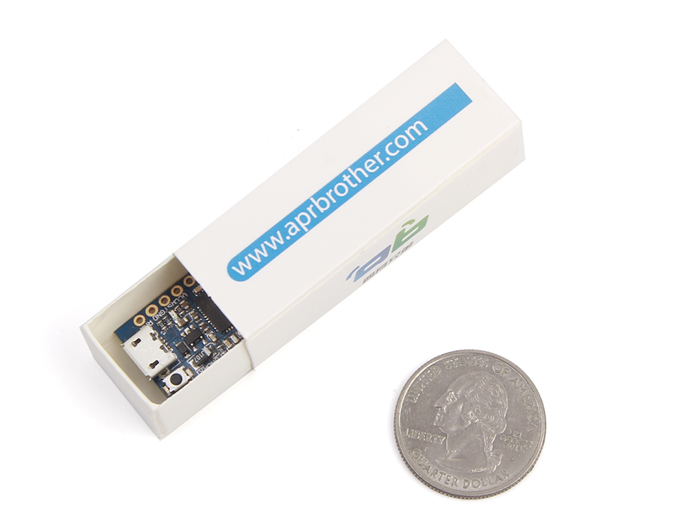

Galería de Imágenes
