DSO138 Digital Oscilloscope DIY kit

DSO138 Digital Oscilloscope DIY kit

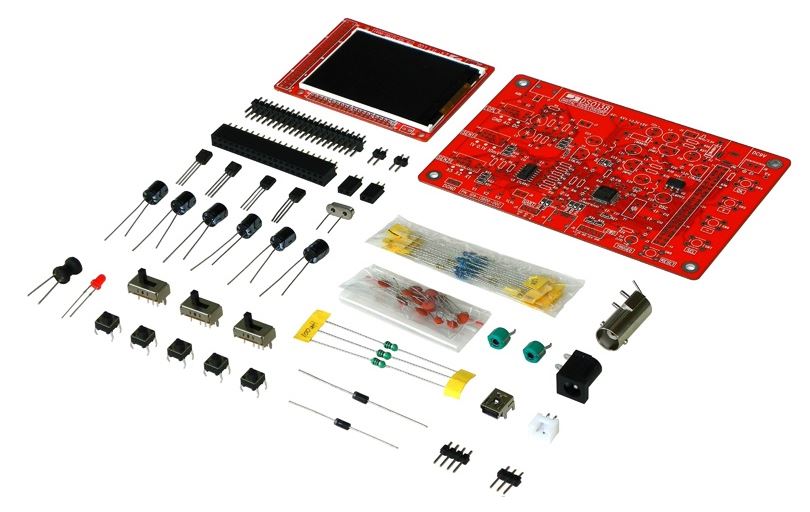

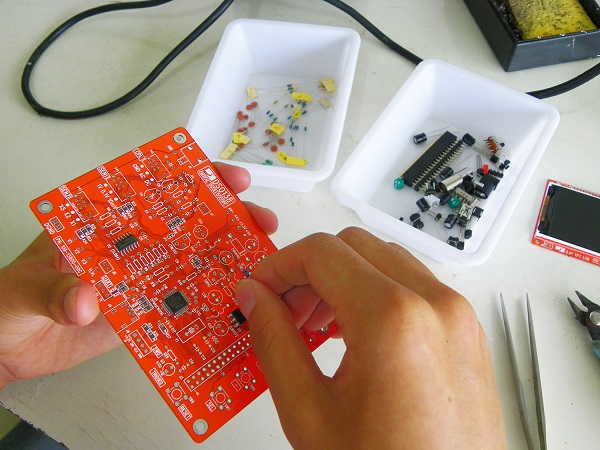

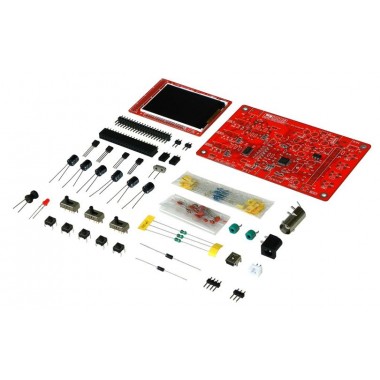

Kit para armar tu propio Osciloscopio! Basado en un ARM Cortex-M3. SE ENTREGA LA PLACA Y LOS COMPONENTES SUELTOS (los componentes SMD vienen presoldados).

COD: EAKA01381A

Peso: 0.143 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 982.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

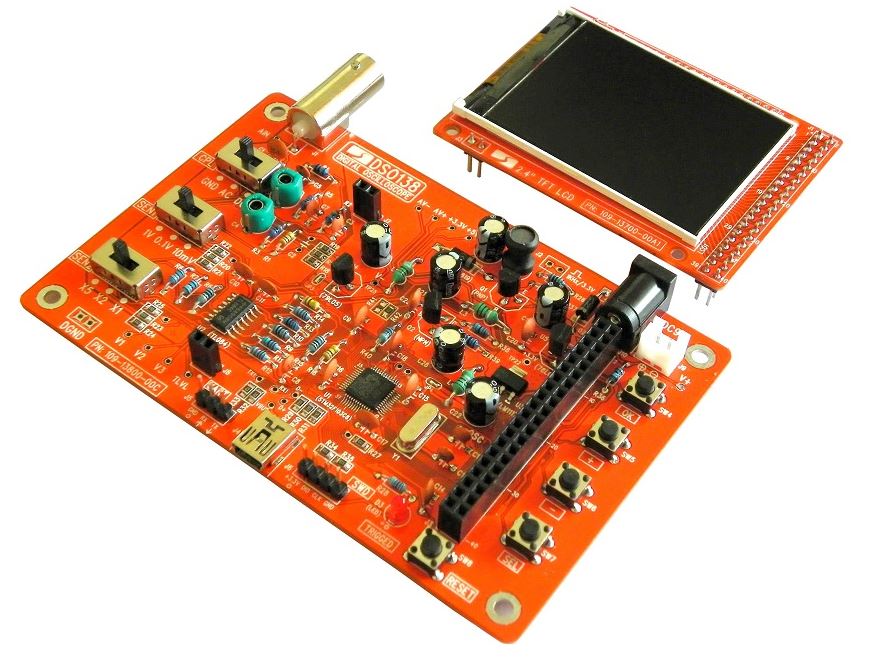

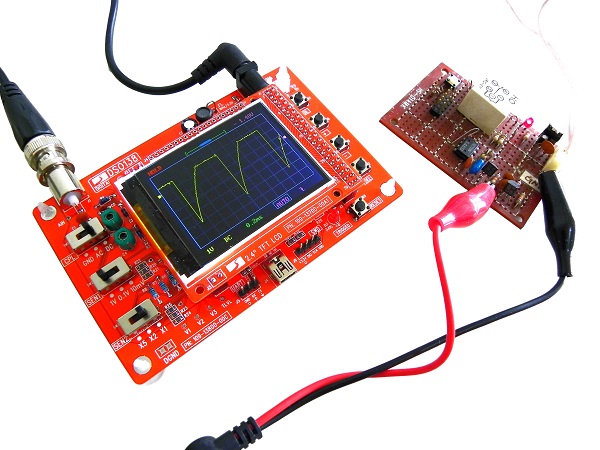

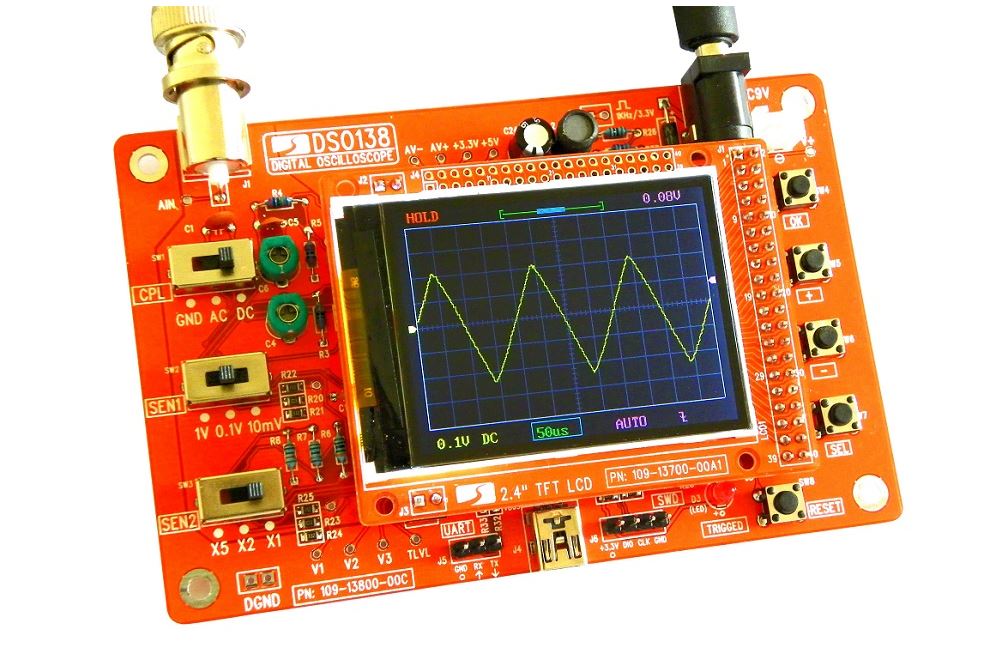

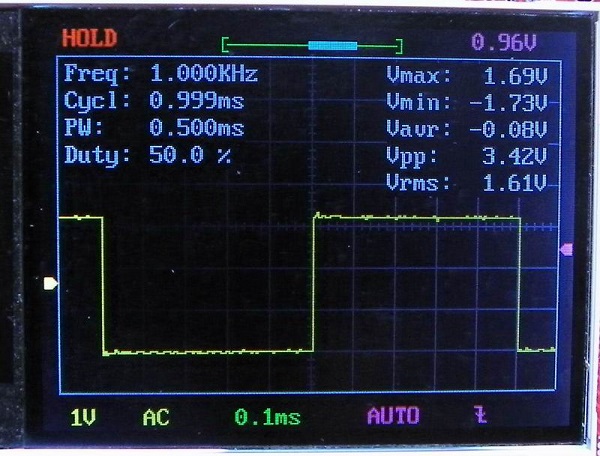

DSO138 was designed as a training oscilloscope kit. Simplicity in structure and easiness in assembly/operation are the main targets of its design. For these purposes, DSO138 applies mostly through-hole parts and the heart of DSO138 is a Cortex-M3 ARM processor (STM32F103C8) from ST. It also uses 2.4-inch TFT LCD (320 X 240 dotmatrix, 262K colors) as its display element that will display nice clear waveforms. Detailed assembly instructions are provided in combination with troubleshooting guide and schematic.
This DSO138 kit has all SMD parts pre-soldered. The MCU has been pre-programmed and no re-programming required.



Specification

  • Number of Channel: 1
  • Analog Bandwidth: 0 - 200KHz
  • Sensitivity: 10mV/Div - 5V/Div
  • Sensitivity error: < 5%
  • Resolution: 12-bit
  • Maximum Input voltage: 50Vpk
  • Coupling: DC, AC, GND
  • Max Real-time Sampling Rate: 1Msps
  • Timebase: 10us/Div - 500s/Div
  • Record Length: 1024
  • Trigger Modes: Auto, Normal, Single
  • Trigger Types: Rising/falling edge
  • Trigger Position: 1/2 of buffer size fixed
  • 2.4-inch color TFT LCD with 320 x 240 resolution
  • 9V DC (8 - 12V acceptable)
  • Supply Current: 120mA
  • Dimension: 117mm X 76mm X 15mm
  • Weight: 70 gram (not including cables)

Package list

  • DSO138 Digital Oscilloscope DIY kit x1
