14g Mini Servo
Servo con reductor de engranajes metálicos, torque 1.5kgcm.
COD: FTFS90MG
Peso: 0.014 Kg
Disponibilidad: Sin Stock
ARS 14300.00
El producto no está disponible para la venta en este momento
Características
Description:

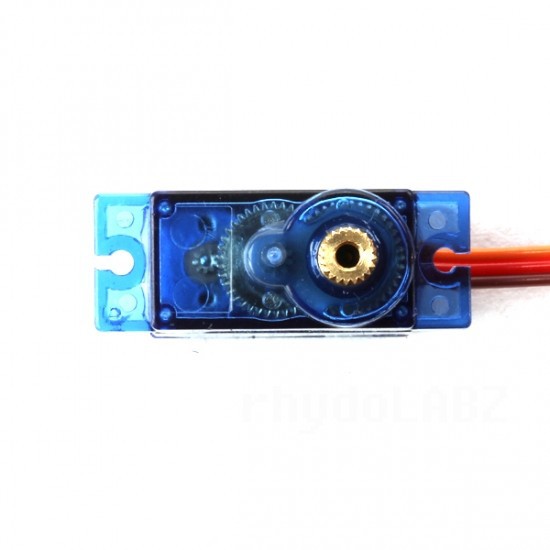

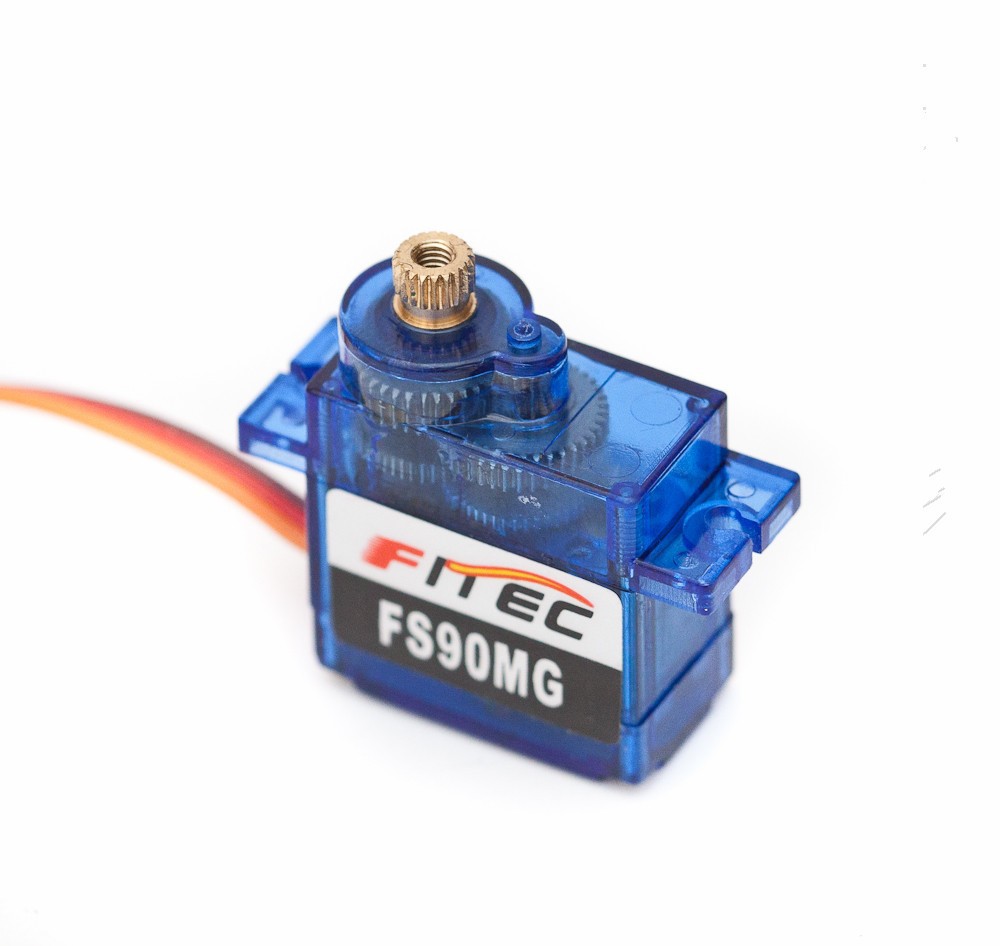

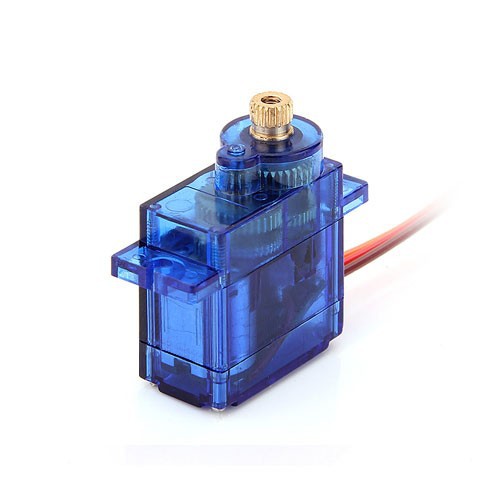

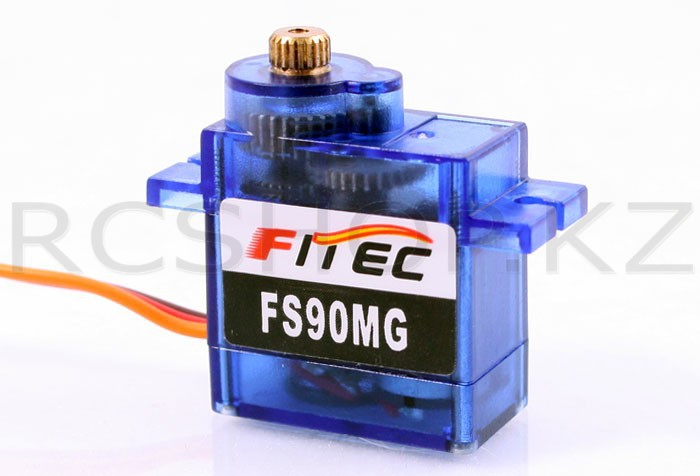

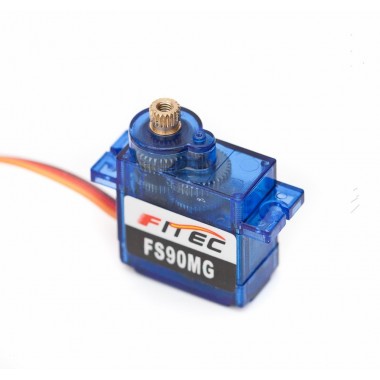

Feetech FS90MGR Metal 360 Rotation Servo 14g 1.8kg for Robot
1.9g servo metal gear
2.Best choice for RC aircplane,robot arduino
3.Accessories attached

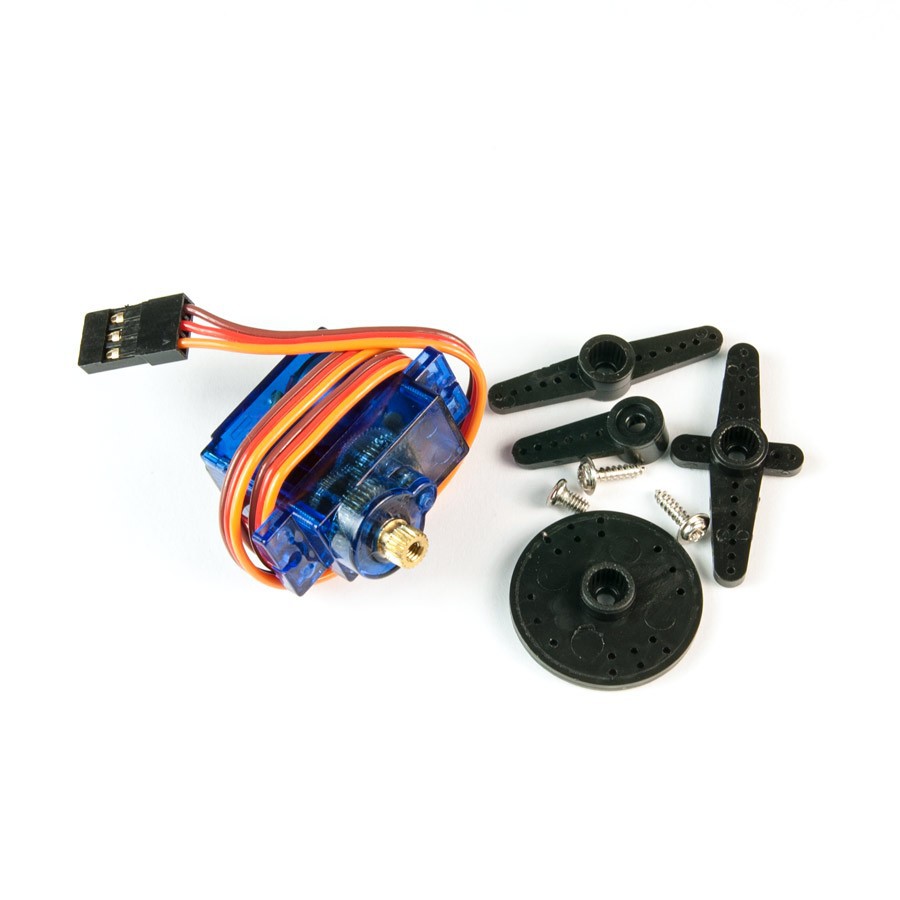

This servo is great for scanning type sensors, tiny robots, and more! Each servo comes with a variety of horns. The metal gears give this servo even more power and durability!
These servos use a standard PWM signal to control them. The Arduino does a great job of controlling PWM Servos, making it ideal for a variety of robotic projects. But sometimes powering these servos can be problematic. Powering servos from the Arduino's 5v regulator leads to underpowered servos, limited by both voltage and current. With other sensor systems, connecting a servo to an external power supply requires multiple cables or boards, defeating the purpose of a sensor shield.
| Feetech servo FS90MG SPEC | |||
| 1. Apply Environmental Conditon | |||
| No. | Feetech FS90MG | Specification | |
| 1.1 | Storage Temperature Range | -20°C~70°C | |
| 1.2 | Operating Temperature Range | -10°C~60°C | |
| 2.Standard Test Environment | |||
| No. | Item | Specification | |
| 2.1 | Temperature Range | -10°C~60°C | |
| 2.2 | Humidity Range | 65%±10% | |
| 3. Mechanical Specification | |||
| No. | Item | Specification | |
| 3.1 | Size | 23.2*12.5*22mm | |
| 3.2 | Weight | 14g | |
| 3.3 | Gear type | 5 Metal Gear | |
| 3.4 | Limit angle | 180°±5° | |
| 3.5 | Bearing | DUAL BB | |
| 3.6 | Horn gear spline | ||
| 3.7 | Horn type | Metal | |
| 3.8 | Case | Engineering plastics(Polyamide) | |
| 3.9 | Connector wire | FP: 240mm±5mm JR: 300mm±5mm | |
| 3.10 | Motor | DC motor | |
| 3.11 | Splash water resistance | No | |
| 4.Electrical Specification | |||
| No. | Operat voltage | 4.8V | 6.0V |
| 4.2 | No load speed | 0.12sec/60° | 0.10sec/60° |
| 4.4 | Peak stall torque | 1.5.kgcm | 1.8kgcm |
| 5.Control Specification | |||
| No. | Item | Specification | |
| 5.1 | Command signal | Pulse width modification | |
| 5.2 | Amplifier type | Analog controller | |
| 5.3 | Pulse width range | 900~2100us | |
| 5.4 | Neutral position | 1500usec | |
| 5.5 | Running degree | 90°±3°(when 1000~2000usec) | |
| 5.6 | Dead band width | 8 usec | |
| 5.7 | Rotating direction | Counterclockwise (when 1000~2000usec) | |
Specification:
-
- Dimensions:23.2 × 12.5 × 22 mm
- Weight:14 g
- Operating Speed :0.12sec/60degree (4.8V)0.10sec/60degree (6V)
- Small Torque: 1.5kg.cm/20.87oz.in(4.8V)1.8kg.cm/25.04oz.in(6V)
- Operating Voltage :4.8V~6V
- Control System :Analog
- Direction :CCW
- Operating Angle :360degree
- Required Pulse :900us-2100us
- Bearing Type :None
- Gear Type :Metal
- Motor Type :Metal
- Connector Wire Length :20 cm
