Adafruit FONA - Mini Cellular GSM Breakout - SMA Version - v1

Adafruit FONA - Mini Cellular GSM Breakout - SMA Version - v1

Adafruit FONA MiniGSM - Todo lo que puede hacer tu celular. Para añadir voz, texto, SMS y datos a tu proyecto. Version con conector de antena SMA.

COD: D001963

Peso: 0.009 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 1931.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

DESCRIPTION

  •
  • Ring, Ring! Who's that callin'? It's your breadboard! Introducing Adafruit FONA MiniGSM, an adorable all-in-one cellular phone module that lets you add voice, text, SMS and data to your project in an adorable little package.

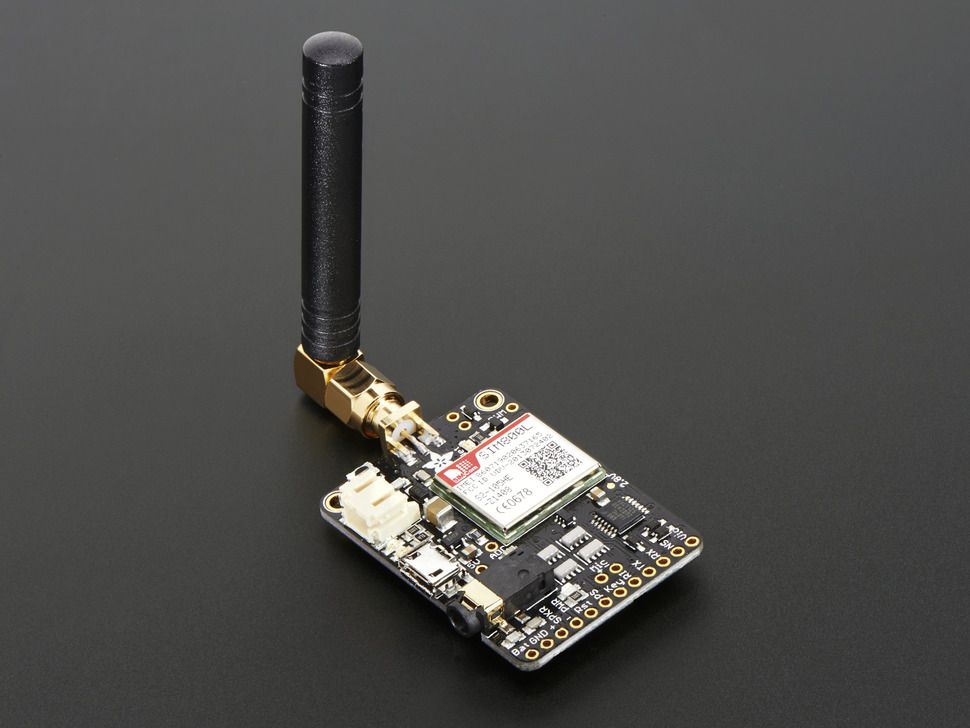

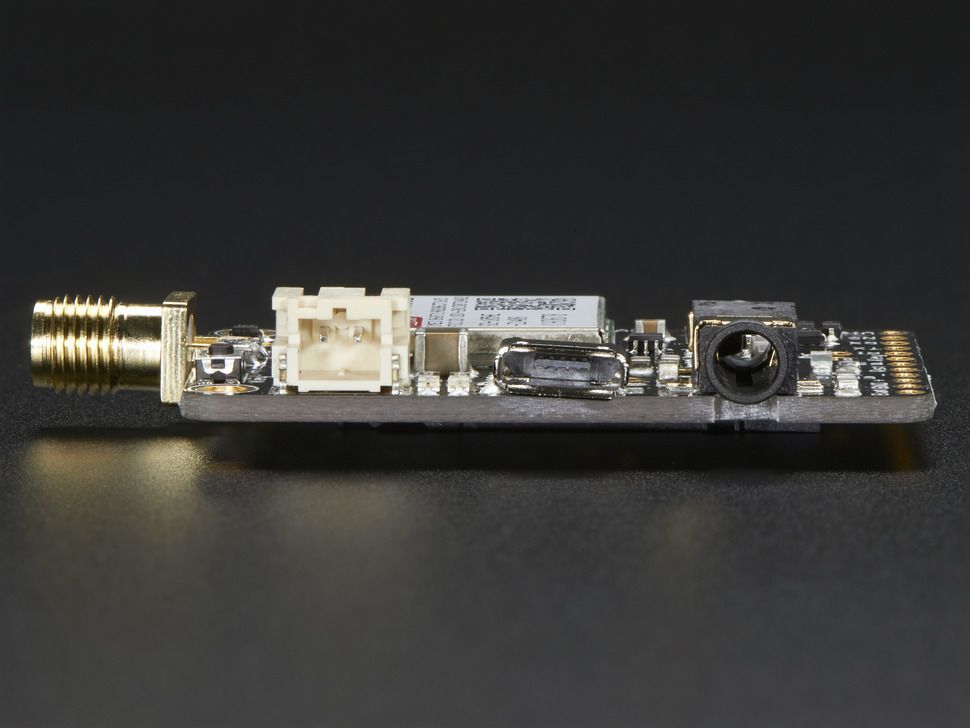

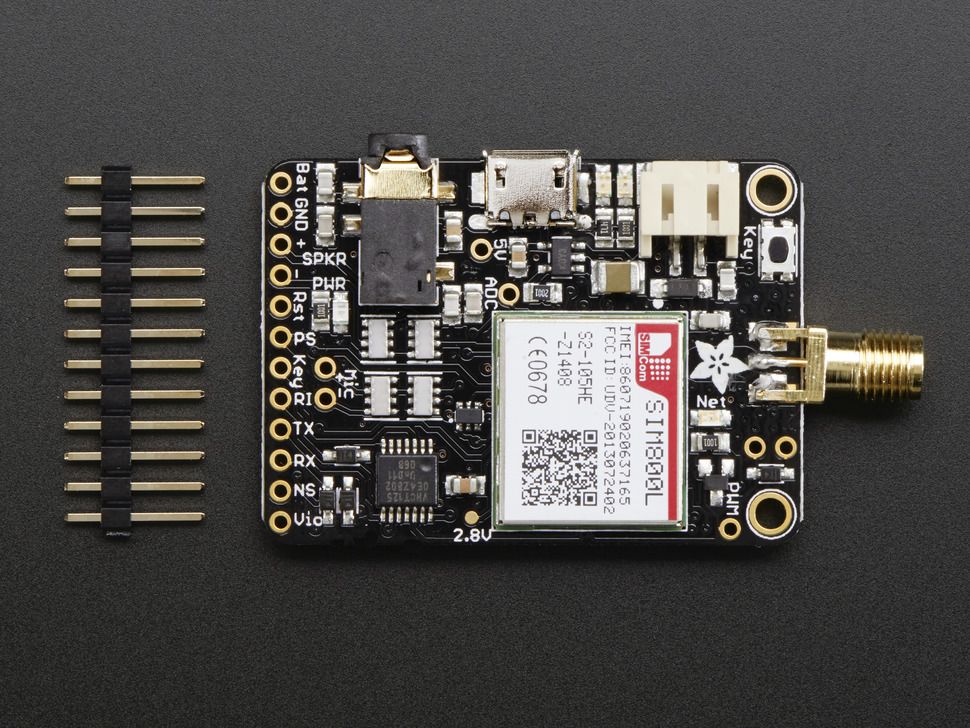

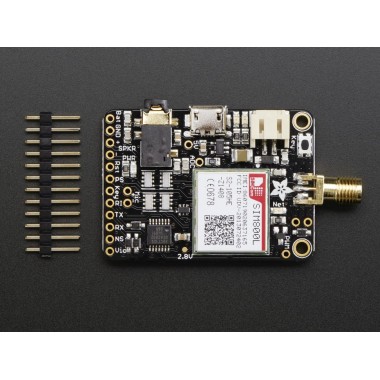

  • This module measures only 1.75"x1.25" but packs a surprising amount of technology into its little frame. At the heart is a GSM cellular module (we use the latest SIM800) the size of a postage stamp. This module can do just about everything. This version has an SMA connector. For the uFL version, click here!

    • Quad-band 850/900/1800/1900MHz - connect onto any global GSM network with any 2G SIM (in the USA, T-Mobile is suggested)

    • Make and receive voice calls using a headset OR an external 8Ω speaker + electret microphone

    • Send and receive SMS messages

    • Send and receive GPRS data (TCP/IP, HTTP, etc.)

    • Scan and receive FM radio broadcasts (yeah, we don't exactly know why this was included but it works really well)

    • PWM/Buzzer vibrational motor control

    • AT command interface with "auto baud" detection


    Sounds delicious, right? So we plated this fine module onto a little breakout with all the extras you need to make your next project shine



    • Onboard LiPoly battery charging circuitry so you can take your project on the go. Use any 500mAh+ LiPoly or LiIon battery and recharge over the MicroUSB when necessary. Two LEDs let you know when its charging and done

    • Standard 4-pole TRRS headphone jack. Use any 'Android' or 'iPhone'-compatible headset with mic

    • Breakouts for external 8Ω speaker and electret mic if you don't want to use a headphone

    • Level shifting circuitry so you can run it with 2.8V to 5V logic.

    • Vibrational motor (buzzer) driver so you can have noiseless notifications

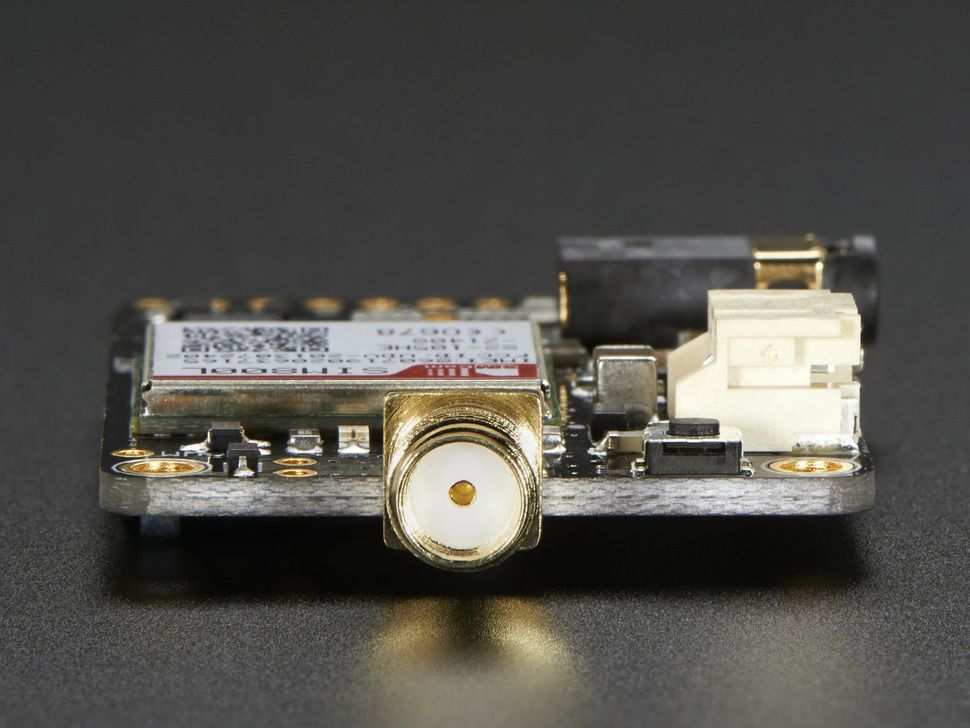

    • SMA connection for external antenna

    • Indicator LEDs for power and network connectivity

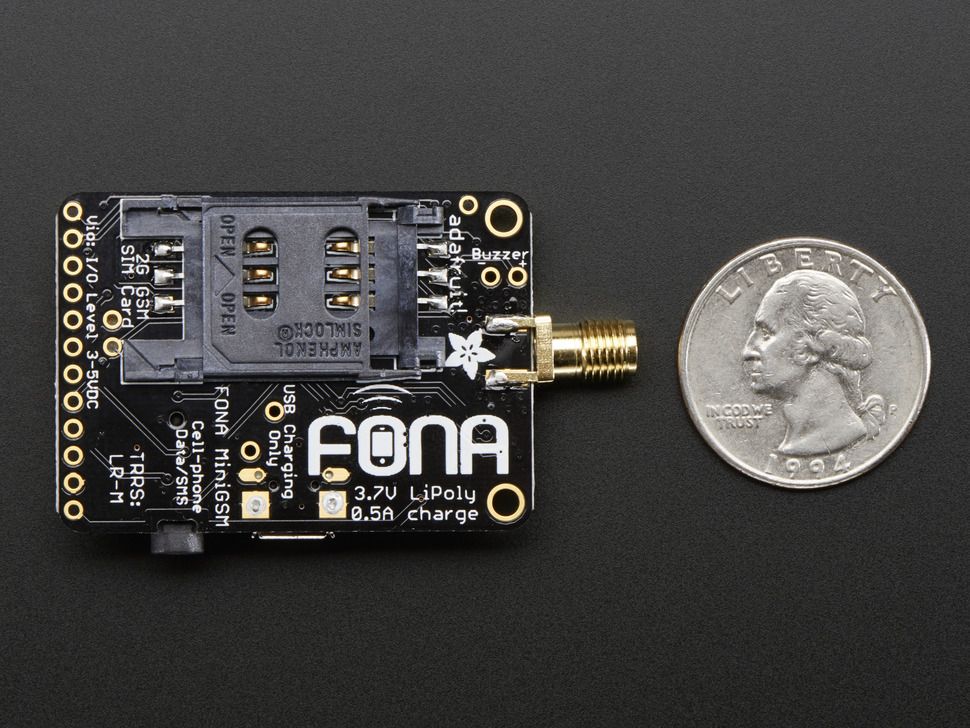

    • Standard SIM slides into the back

    This is our Release Candidate for hackers and advanced makers. We're still adding library support for all the various things the FONA can do but there may be updates as FONA is used around the world!

    On its own, this module can't do anything. It requires a microcontroller to drive it! We suggest and use an Arduino but any 3-5V microcontroller with a UART can send and receive commands over the RX/TX pins.

    You will also need some required accessories to make FONA work. These are not included!

    • SIM Card!

    • Lipoly Battery - 500mAh or larger!

    • MicroUSB cable for charging the battery.

    • External Antenna.


    There's also some recommended accessories. They are not required but chances are you'll want them!

    • TRRS 4-Pole Headset - Any 'iPhone' or 'Android' compatible (but not iPhone original) should work. We tried about 10 different ones, and basically the more expensive ones are more comfortable and louder but our official iPhone headset mic did not work.

    • External Mic & Speaker - If you want to talk directly to your FONA, an electret mic andmini 8 ohm speaker will do quite nicely.

    • Vibrating motor - the FONA can drive this directly, just solder a mini vibrating motor disc in!

    • USB console cable - the microUSB connector is for charging only, but you can wire up a console cable for direct-connection to the module if you want to send commands from a terminal (great for testing and tweaking)
