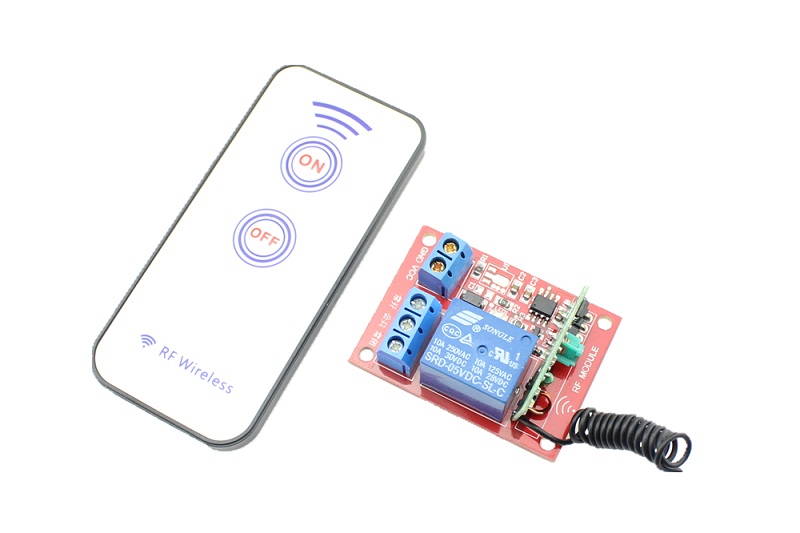

1 Channel RF Remote Control Module DC 5V

1 Channel RF Remote Control Module DC 5V

Controla un dispositivo de forma inalámbrica con éste módulo relé de 5V. Incluye un control remoto el cual tiene un alcance de hasta 30 metros. Ideal para proyectos de domótica. Se alimenta con 5V.

COD: ECRF00501C

Peso: 0.040 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 1563.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

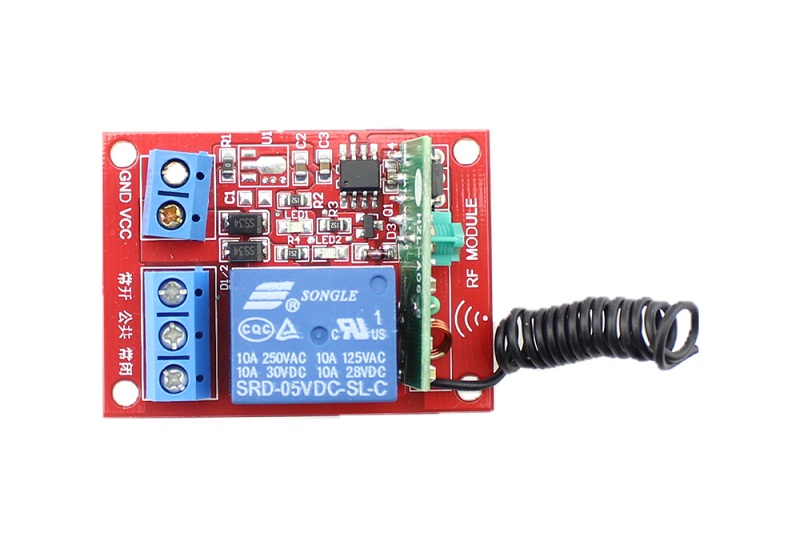

This 1 channel latching relay module whose output is passive output, can be controlled by its 2-button RF wireless controller, when the module is powered on. The module must be equipped with a suitable remote control, it also can drive most of household electrical appliances.



Features

  • Able to control various appliances and other equipments with large current.
  • Equipped with high-current relay.
  • Standard interface that can be controlled directly by microcontroller.
  • LED indication for Relay output status.

Specification

  • Working Voltage: DC 5-5.5V.
  • Working current: about 70mA.
  • Quiescent current: about 6mA.
  • MAX Load Voltage:10A 250VAC or 10A 30VDC.
  • Module size: 48 x 35 x 20mm.
  • Module type: 433m RF wireless receiving.
  • Remote control distance: 15-30 meters.
  • Work status: Self-locking.
  • The work instructions LED: LED1(power), LED2(relay).

Package list

  • 1 Channel RF Remote Control Module DC 5V x1.
