One Wire Waterproof Temperature Sensor
Sensor digital de temperatura impermeable, mide desde -55 hasta 125 ºC, con 9 a 12bits de resolución y comunicación One Wire.
COD: ESTH01102S
Peso: 0.023 Kg
Disponibilidad: Sin Stock
ARS 85.00
El producto no está disponible para la venta en este momento
Características

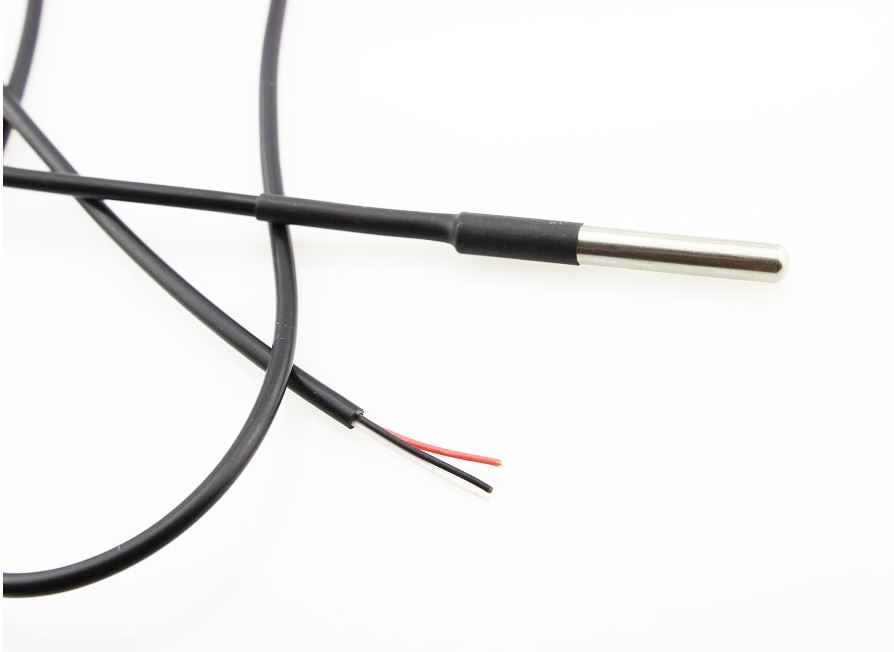

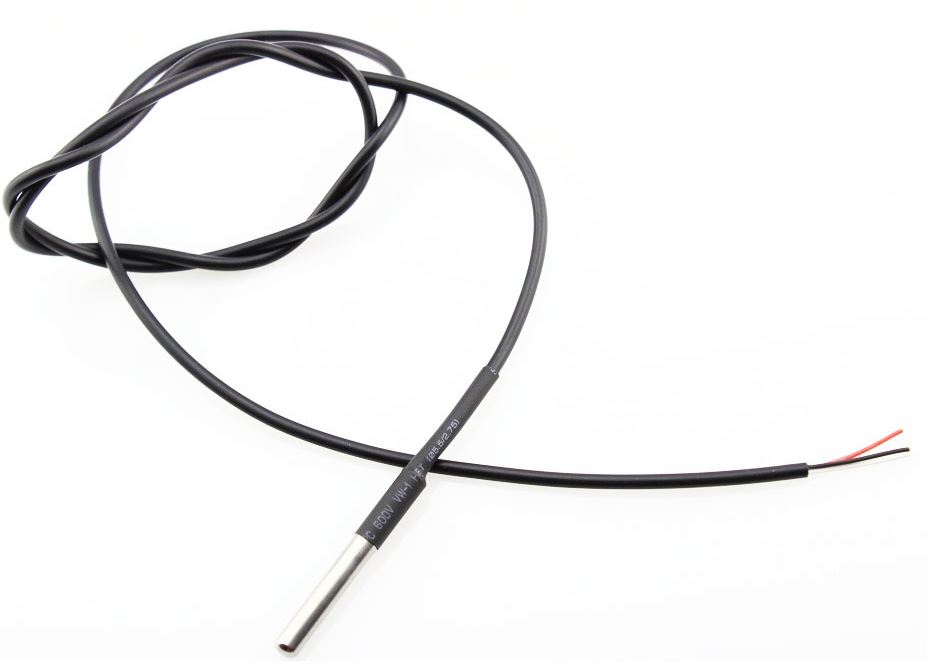

This is a waterproofed version of the DS18B20 Temperature sensor. Handy for when you need to measure something far away, or in wet conditions. While the sensor is good up to 125 degree, the cable is jacketed in PVC so we suggest keeping it under 100 degree. Because they are digital, you don't get any signal degradation even over long distances! The DS18B20 provides 9 to 12-bit (configurable) temperature readings over a 1-Wire interface, so that only one wire (and ground) needs to be connected from a central microprocessor.Usable with 3.0-5.5V systems.
Because each DS18B20 contains a unique silicon serial number, multiple DS18B20s can exist on the same 1-Wire bus. This allows for placing temperature sensors in many different places. Applications where this feature is useful include HVAC environmental controls, sensing temperatures inside buildings,equipment or machinery, and process monitoring and control.
Features
- 9 to 12 bit selectable resolution
- one digital pin for communication
- Multiple sensors can share one pin
- Query time is less than 750ms
Specification
- 3.0V to 5.5V input
- Temperature range: -55 to +125 degree
- 0.5 degree Accuracy from -10 to +85 degree
-
3 wires interface:
- Red wire - VCC
- Black wire - GND
- Yellow wire - DATA
- Stainless steel tube 6mm diameter by 30mm long
- Cable length: 90cm
Wiki & External links
Galería de Imágenes
Archivos
ds18b20_jj.pdf (390 Kb)
ds18b20_for_arduino_1_mk.zip (8 Kb)Comentarios
Escribir ComentarioOpenHacks (07/12/2016 - 11:44)
Hola Facundo, son de diferente proveedor. Saludos!
Facundo (06/12/2016 - 14:12)
Hola! cuál sería la diferencia con el otro DS18B20 impermeabilizado (cod. DF00013)? Gracias!
