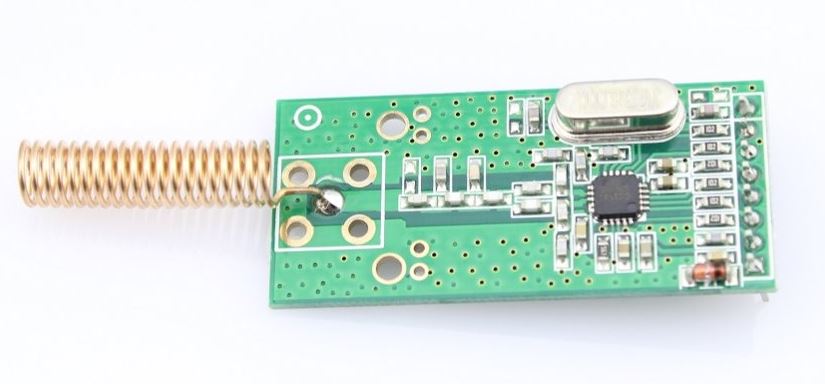

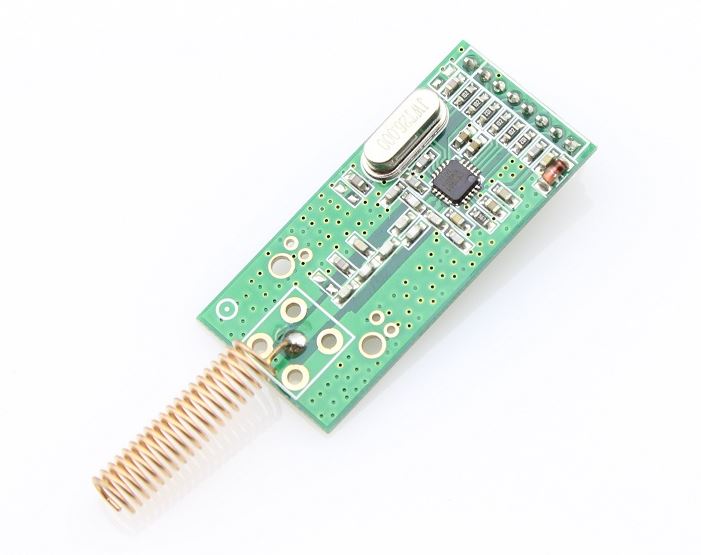

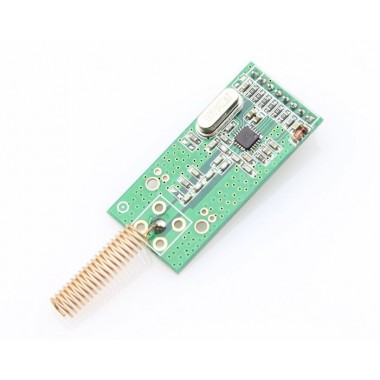

433MHz RF Transceiver CC1101 Module

433MHz RF Transceiver CC1101 Module

Transceptor Inalámbrico de RF con parámetros configurables.

COD: EWRF11010R

Peso: 0.005 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 346.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

The CC1101 is a low-cost sub- 1 GHz transceiver designed for very low-power wireless applications. The circuit is mainly intended for the ISM (Industrial, Scientific and Medical) and SRD (Short Range Device) frequency bands.

Features

  • input voltage :3.3V
  • maximum operating speed: 500kbps, support 2-FSK, GFSK and MSK modulation
  • can be modify the baud rate, power, frequency and other related parameters by software
  • high sensitivity (
  • CRC error detection and built-in hardware address multipoint communication control
  • lower current consumption (RX, 15.6mA; 2.4kbps, 433MHz)
  • programmable control of output power, maximum output power of +10dBm
  • standard 2.0mm DIP pitch interfaces for embedded applications
  • separate 64-byte RX and TX data FIFO
  • Transmission distance: 300 - 500 meters (Depending on the specific situation of the environment and communication baud rate, etc.)

Package list

  • 2.4G Wireless nRF24L01Module x1
