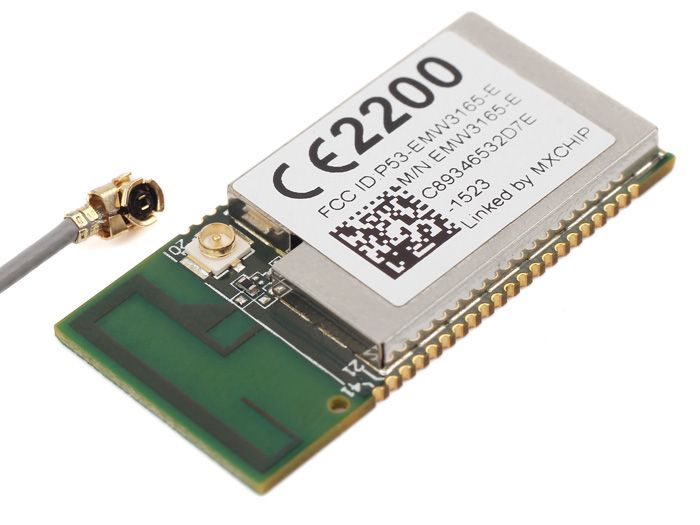

EMW3165-Cortex-M4 based WiFi SoC Module (External IPEX antenna)

EMW3165-Cortex-M4 based WiFi SoC Module (External IPEX antenna)

Este módulo incorpora WiFi. Basado en un Cortex-M4 (100Mhz), cuenta con 22 GPIOs.

COD: SE113990110

Peso: 0.050 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 452.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

EMW3165 is a low-power embedded Wi-Fi module integrates a wireless LAN MAC/baseband /radio, and a Cortex-M4 microcontroller STM32F411CE that runs a unique "self-hosted" Wi-Fi networking library and software application stack.
EMW3165 is also a MiCOTM  platform, users can  build their own embedded Wi-Fi applications based on  MiCOTM   library which manage all of the Wi-Fi MAC and TCP/IP stack processing.


Features:

Consists of a Cortex-M4 microcontroller and an IEEE 802.11™  b/g/n chip
  • Cortex-M4 core at 100MHz
  • 2M bytes on-board SPI flash and 512K bytes on-chip flash
  • 128K bytes RAM
  • Operation voltage:3.0V~3.6V
Peripherals
  • 22 GPIOs
  • JTAG/SWD debug interface
Wi-Fi connectivity
  • 802.11b, 802.11g, 802.11n (single stream)
  • WEP, WPA/WPA2 PSK/Enterprise
  • 16.5dBm@11b?14.5dBm@11g 13.5dBm@11n
  • Receiver Sensitivity: -87 dBm
  • Station, Soft AP and Wi-Fi direct
  • Support EasyLink

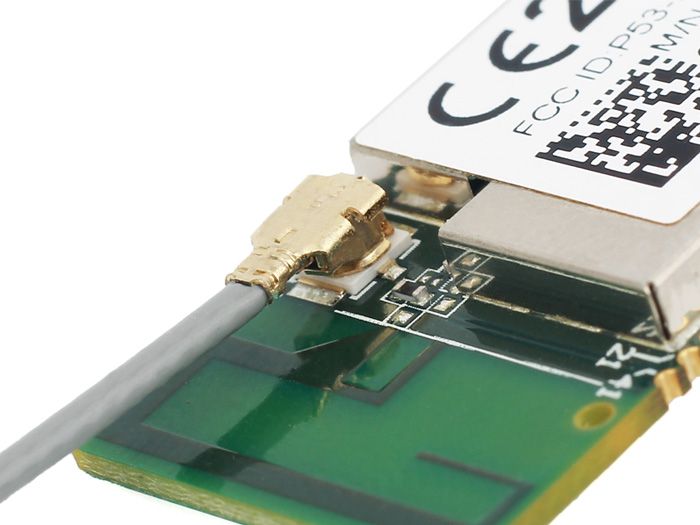

  • On-board PCB antenna?IPEX connector for external antenna
  • CE?FCC compliant

Specification:

Hardware Block

Applications?
  • Building Automation / Access Control
  • Smart home appliances
  • Medical/Health Care
  • Industrial Automation Systems
  • Point Of Sale system (POS)
  • Auto electronics

Part List:
1 x EMW3165

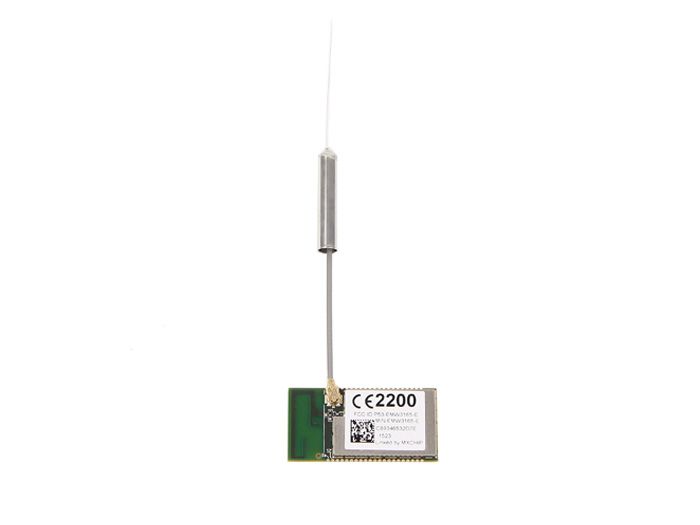

1*IPEX antenna

Documents:
Code is available on Github
