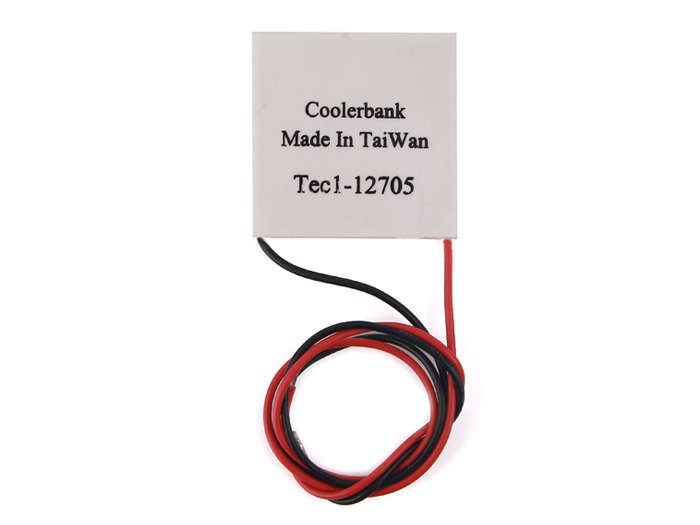

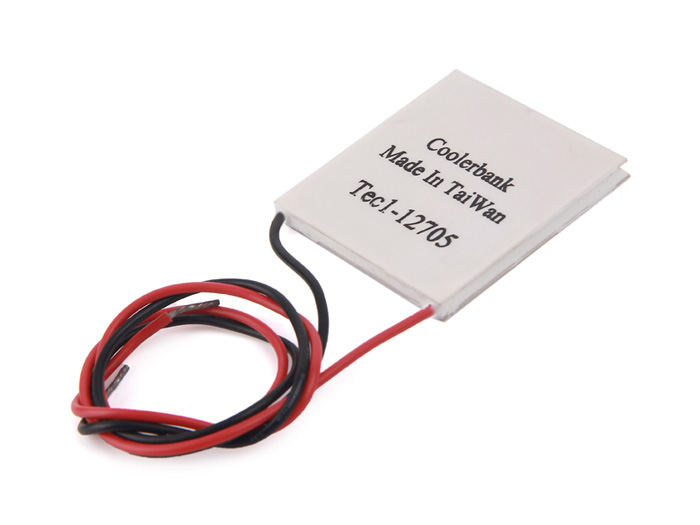

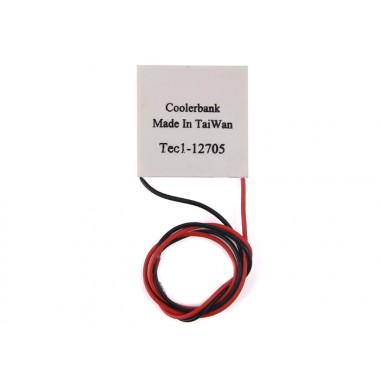

Peltier Plate-40mm*40mm

Peltier Plate-40mm*40mm

Enfriador termoeléctrico basado en el efecto Peltier (40x40mm)

COD: SE114990227

Peso: 0.010 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 22020.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Peltire Plate, also semiconductor cooler, is a heat sink device taking advantage of the Peltier effect. It’s solid, reliable, noise free and vibration free, suitable for applications that have limits on space, noise and vibration.

Typical applications for Peltier plate are cooling systems for heating parts, like LED and chips. But they are also widely used in portable cooling device, like ice box.


Features:
  • Cooling speed is controllable via adjusting the operating electricity
  • Noise free, vibration free, friction free, reliable performance
  • Tiny size and light weight
  • No cooling liquid, environmental friendly
  • Can be used as heating device by changing the direction of electricity

Specification:
  • V-Max(VDC): 15.40
  • I-Max(A): 5.00
  • Q-Max(W): 46.50
  • DT-Max(ºC): 67.00
  • Rac(Ohm): 2.51
  • Operation/storagetemperature: -40.00

Galería de Imágenes

Comentarios

Escribir Comentario

OpenHacks (26/07/2016 - 11:12)

Hola Gonzalo, podemos traer de 20x20mm, nuestro proveedor no cuenta con celdas de10x10 mm. Saludos!

Gonzalo (26/07/2016 - 10:06)

Hola, quisiera saber si se pueden adquirir celdas de 10x10mm por encargo. Saludos!
