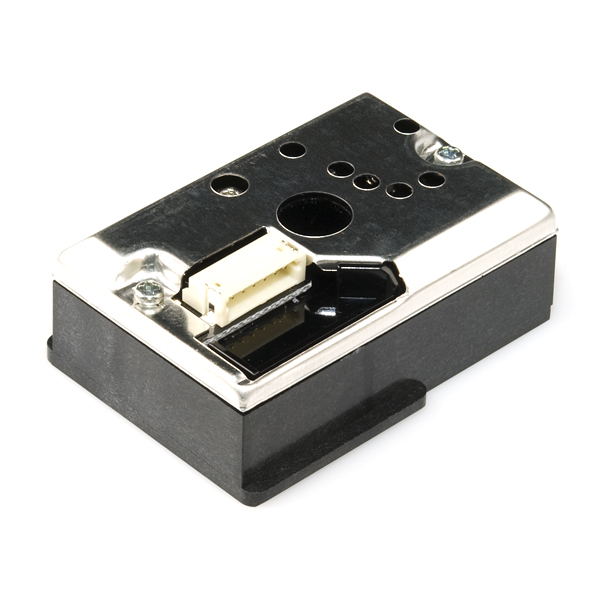

Sensor de Polvo Ambiental - GP2Y1010AU0F

Optical Dust Sensor - GP2Y1010AU0F

Sensor óptico de polvo ambiental GP2Y1010AU0F, ideal para monitoreo de calidad de aire

COD: SFCOM09689

Peso: 0.020 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 573.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description: Sharp's GP2Y1010AU0F is an optical air quality sensor, designed to sense dust particles. An infrared emitting diode and a phototransistor are diagonally arranged into this device, to allow it to detect the reflected light of dust in air. It is especially effective in detecting very fine particles like cigarette smoke, and is commonly used in air purifier systems.

The sensor has a very low current consumption (20mA max, 11mA typical), and can be powered with up to 7VDC. The output of the sensor is an analog voltage proportional to the measured dust density, with a sensitivity of 0.5V/0.1mg/m3.

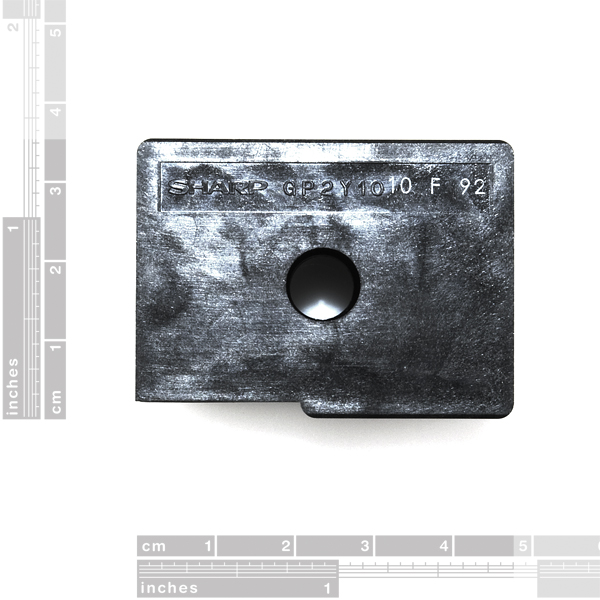

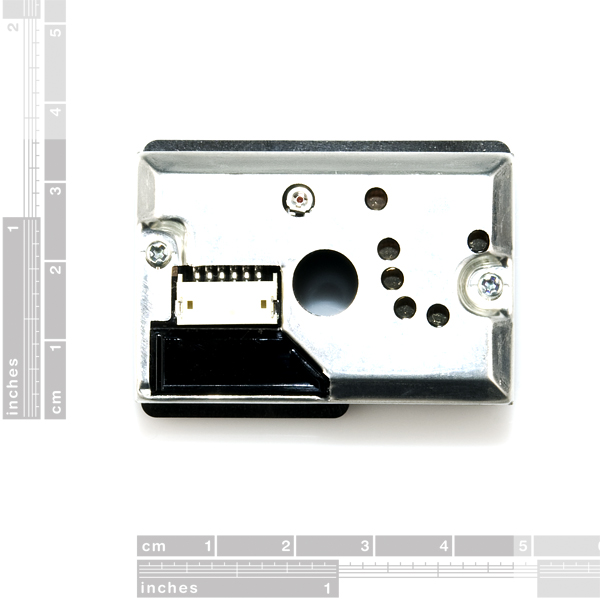

Dimensions: 1.81 x 1.18 x 0.69" (46.0 × 30.0 × 17.6 mm)

Documents:

  • Datasheet

Galería de Imágenes

Comentarios

Escribir Comentario

OpenHacks (06/04/2015 - 16:47)

Federico, lamentablemente no tenemos el conector ( S6B-ZR-SM4A-TF). Saludos!

Federico (01/04/2015 - 18:22)

¿Tienen el conector y cables para vincular este sensor a la electronica de medicion? Saludos.
