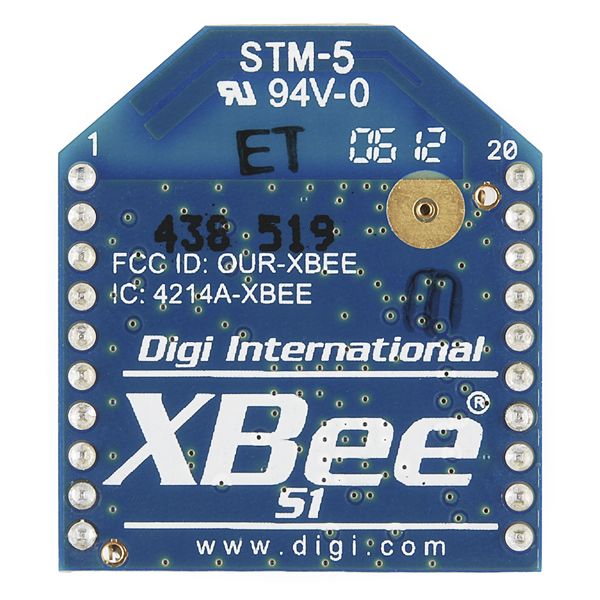

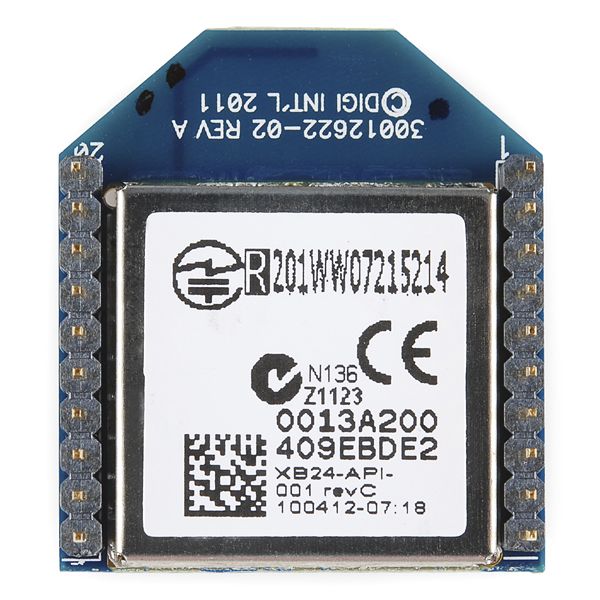

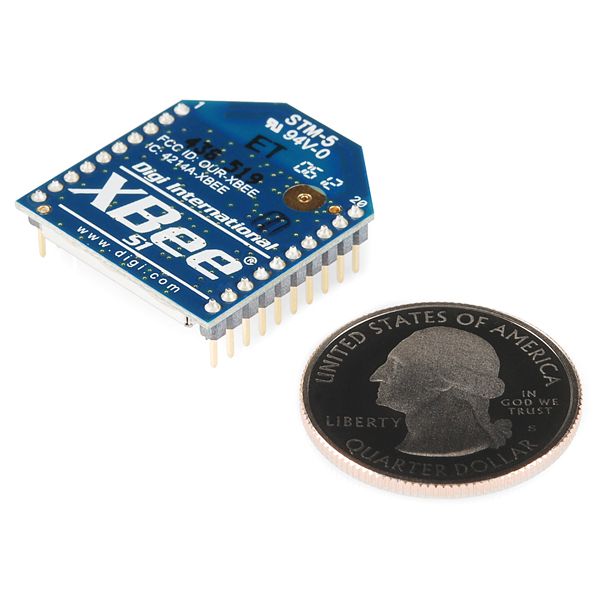

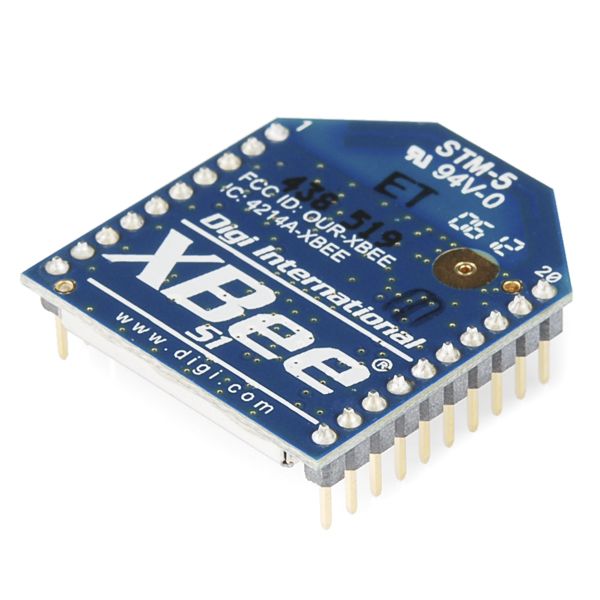

XBee 1mW Trace Antenna - Series 1 (802.15.4)

XBee 1mW Trace Antenna - Series 1 (802.15.4)

Permite una comunicación muy fiable y simple entre microcontroladores, ordenadores, sistemas, realmente cualquier cosa con un puerto serie!

COD: SFWRL11215

Peso: 0.004 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 812.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

This is the very popular 2.4GHz XBee module from Digi. These modules take the 802.15.4 stack (the basis for Zigbee) and wrap it into a simple to use serial command set. These modules allow very reliable and simple communication between microcontrollers, computers, systems, really anything with a serial port! Point to point and multi-point networks are supported.

Not sure which XBee module or accessory is right for you? Check out our XBee Buying Guide!

Note: If you are using these outside of the United States, please check with your local laws regarding radio communication.

Features:

  • 3.3V @ 50mA
  • 250kbps Max data rate
  • 1mW output (+0dBm)
  • 300ft (100m) range
  • Fully FCC certified
  • 6 10-bit ADC input pins
  • 8 digital IO pins
  • 128-bit encryption
  • Local or over-air configuration
  • AT or API command set
  • Trace Antenna

Documents:

Replaces:WRL-08664
