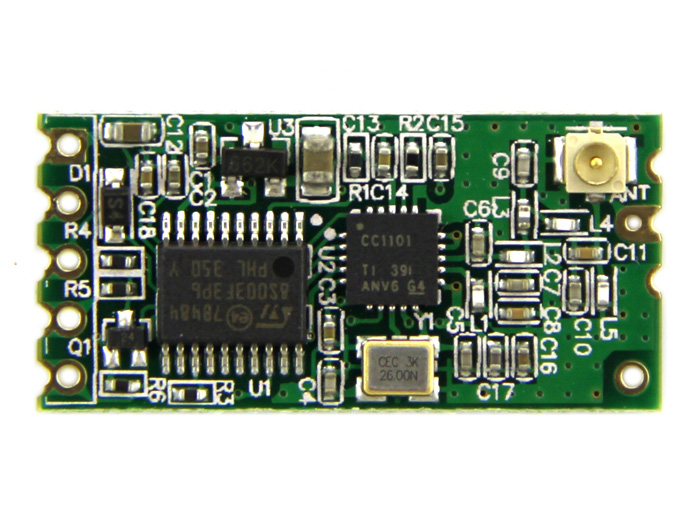

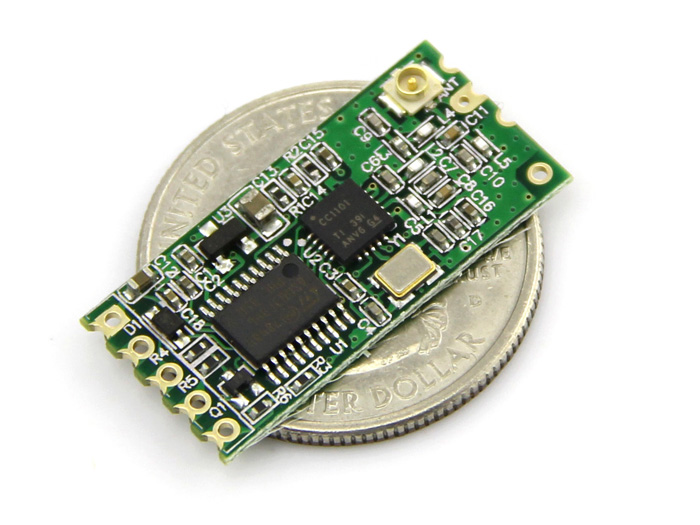

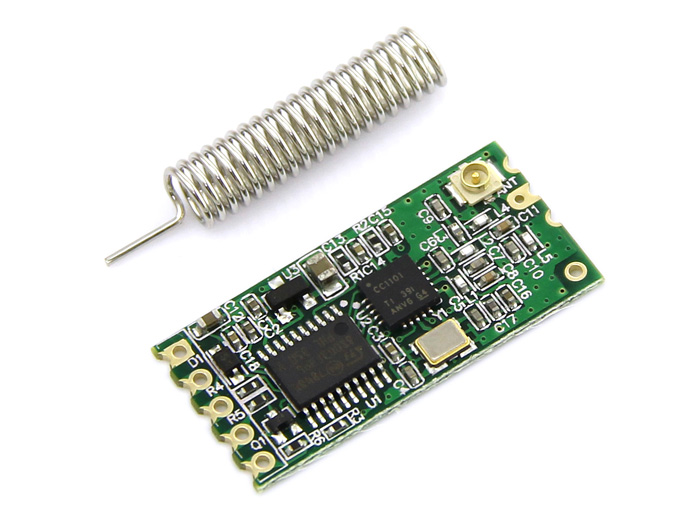

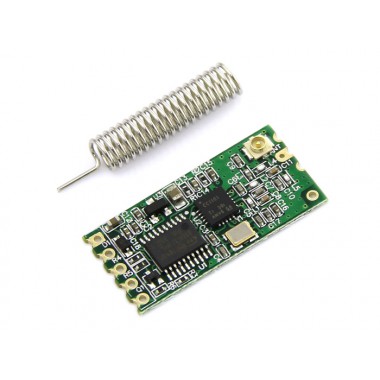

434Mhz Wireless Serial Transceiver Module - 40 Meters

434Mhz Wireless Serial Transceiver Module - 40 Meters

Módulo Transceptor de 434Mhz (modulación por desplazamiento de frecuencia)

COD: SE800131001

Peso: 0.005 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 20857.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Serial transceiver module is a low cost, high performance transparent FSK transceiver with operating at 434 MHz. It features small size, high output power, high sensitivity, long transmission distance and high communication data rate with auto set up for communication change and data receiving and transmission control. There is UART interface, it is easy to realize the wireless data transmission with only providing the UART data. It is flexible for the users to set the UART baud rate, frequency, output power, data rate, frequency deviation, receiving bandwidth etc parameters. It is your ideal choice for designing wireless data transmission products which can be widely used on wireless data transmission field.

The single module can not work, please get two or more of these modules. And please note that this module do not work with the 433Mhz Wireless Serial Transmitter Module - 1 Kilometer.

Features:
  • Wireless communication frequency band is 434M
  • Multiple types of serial port transparent transmission modes have respective features, and the mode is changed by command
  • User needn't program the modules, and four modes are only responsible for receiving and sending serial port data, and are convenient to use
  • Low current consumption; the idle current is 80μA, 3.5mA or 22mA, depending on the selected mode
  • The number of bytes sent to serial port of module unlimited to one time
  • All functions and parameters are changed by command, and can be saved in case of power failure

Specification:
  • Working frequency: 434Mhz
  • Supply voltage: 3.3V to 5VDC
  • Communication distance: 1m to 40m indoor
  • Serial baud rate: 1.2Kbps to 115.2Kbps (default 9.6Kbps)
  • Receiving sensitivity: -112dBm to -95dBm
  • Transmit power: -30dBm to 10dBm

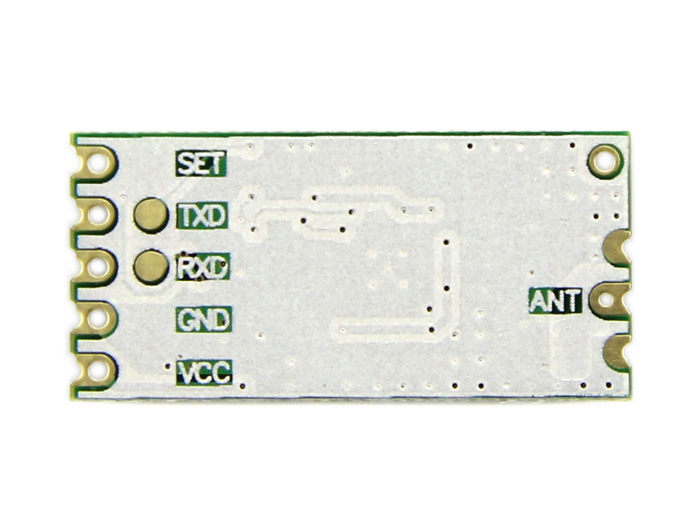

  • Interface protocol: UART/TTL
  • Operating temperature: -40°C to +85°C
  • Dimensions: 27.8 x 14.4 x 4mm
