RFID Reader ID-12LA (125 kHz)

RFID Reader ID-12LA (125 kHz)

Lector de tarjetas RFID de 125kHz, 25x26mm.

COD: SFSEN11827

Peso: 0.008 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 62525.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

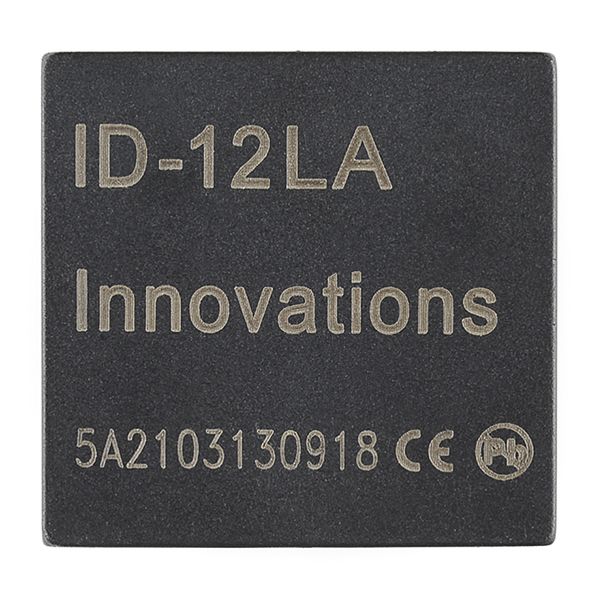

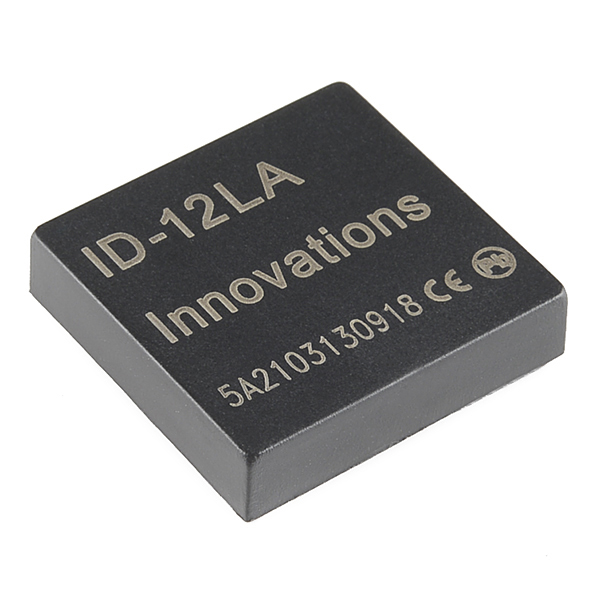

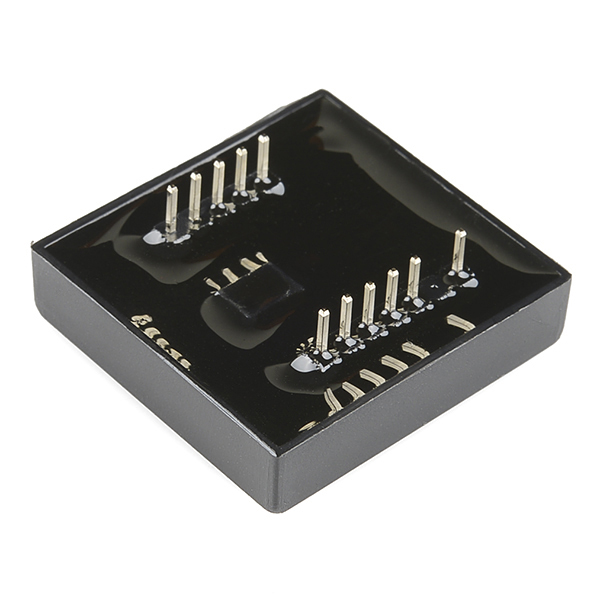

RFID (radio-frequency identification) is the wireless non-contact use of radio-frequency electromagnetic fields, for the purposes of identifying and tracking tags attached to objects. This is the ID-12LA, a very simple to use RFID reader module from ID Innovations. With a built in antenna, the only holdup is the 2mm pin spacing. Power the module, hold up a 125kHz card, and get a serial string output containing the unique ID of the card.

Note: The new ID-12LA is essentially the same as the ID-12, but has a lower voltage input.

VIDEO

Features:

  • 2.8 - 5V supply
  • 125kHz read frequency
  • EM4001 64-bit RFID tag compatible
  • 9600bps TTL and RS232 output
  • Magnetic stripe emulation output
  • 120mm read range

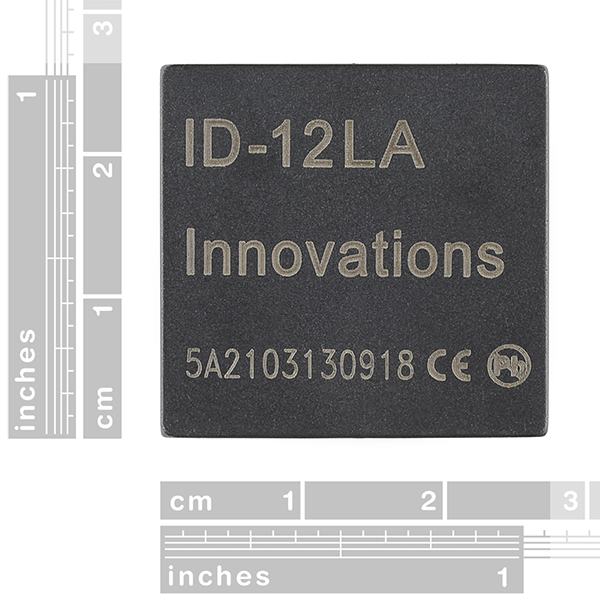

Dimensions: 25x26mm

Documents:
