Temperature Sensor - Waterproof (DS18B20)
Sensor de temperatura DS18B20 encapsulado a prueba de agua - Comunicación one wire
COD: SFSEN11050
Peso: 0.042 Kg
Disponibilidad: Sin Stock
ARS 23111.00
El producto no está disponible para la venta en este momento
Características
Description: This sealed digital temperature probe lets you precisely measure temperatures in wet environments with a simple 1-Wire interface. The DS18B20 provides 9 to 12-bit (configurable) temperature readings over a 1-Wire interface, so that only one wire (and ground) needs to be connected from a central microprocessor.

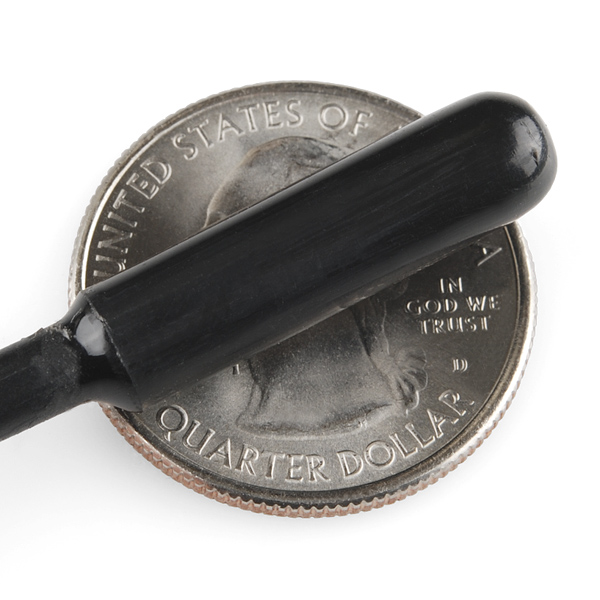

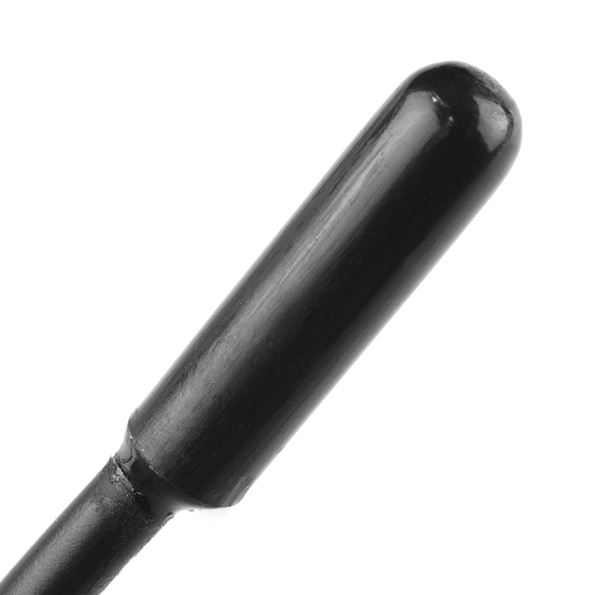

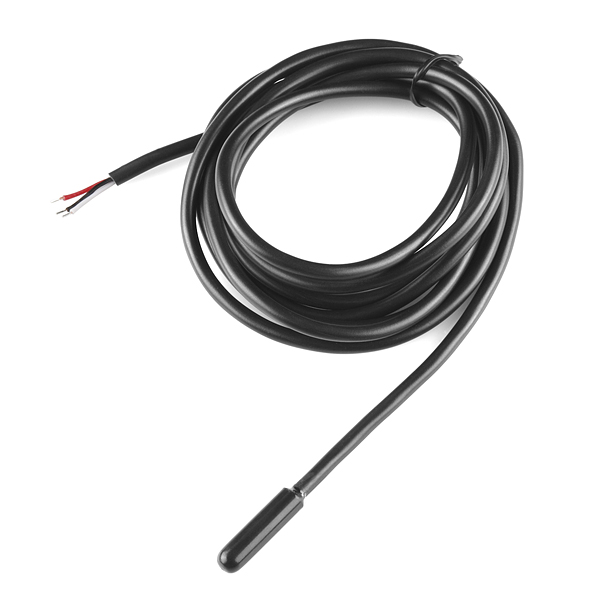

Dimensions: Probe is 7mm in diameter and roughly 26mm long. Overall length (including wire) is 6 feet.
Features:
- 3.0-5.5V input voltage
- Waterproof
- -55°C to+125°C temperature range
- ±0.5°C accuracy from -10°C to +85°C
- 1 Wire interface
Documents:
ds18b20_d5.pdf (390 Kb)
