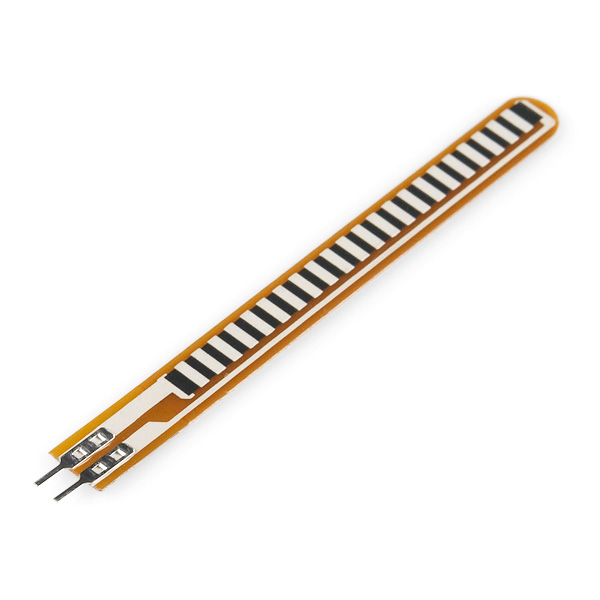

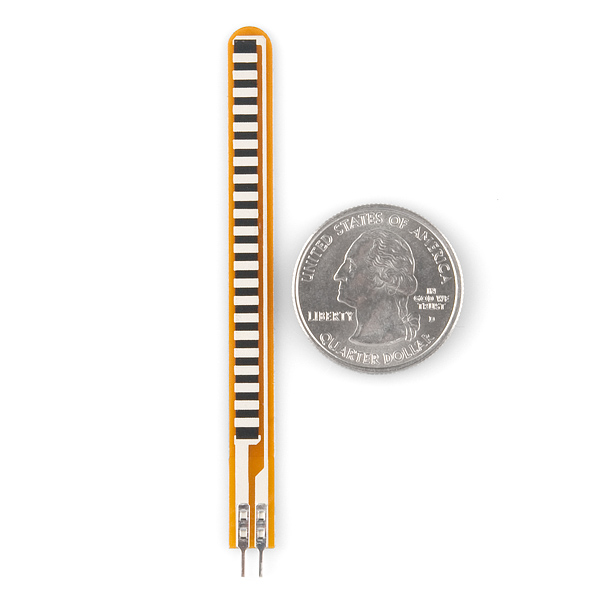

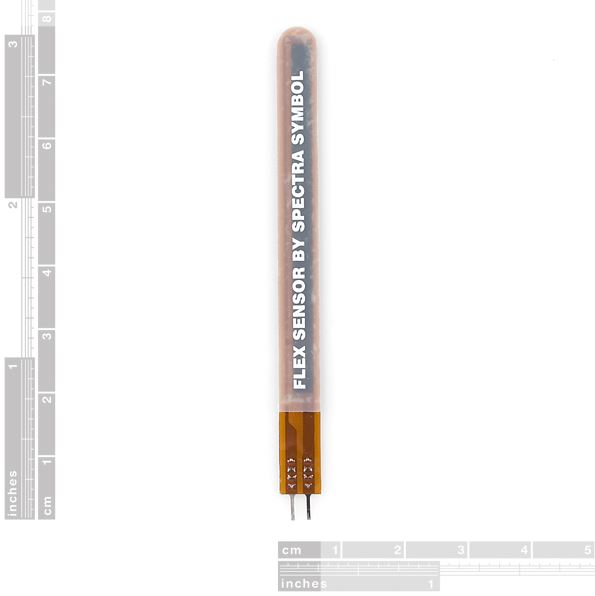

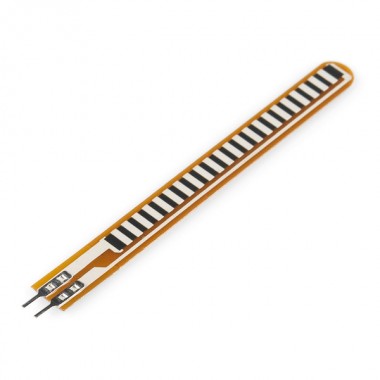

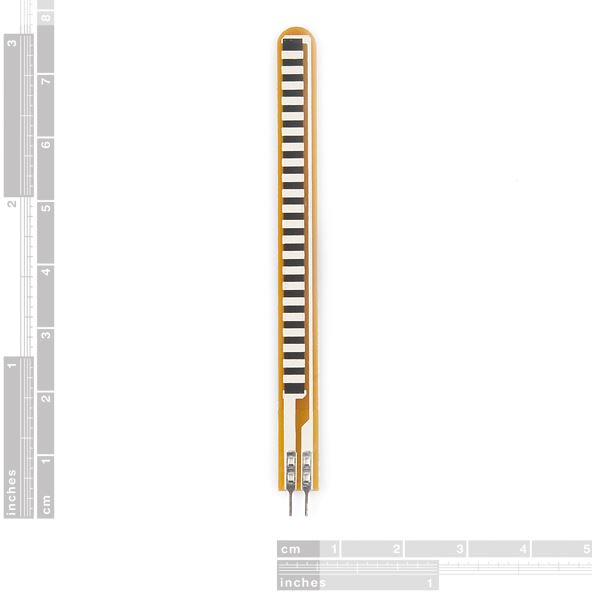

Flex Sensor 2.2

Flex Sensor 2.2

Sensor de flexión resistivo de 2,2" de largo.

COD: SFSEN10264

Peso: 0.000 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 435.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description: A simple flex sensor 2.2" in length. As the sensor is flexed, the resistance across the sensor increases. Patented technology by Spectra Symbol - they claim these sensors were used in the original Nintendo Power Glove. I love the Nintendo Power Glove. It’s so bad!

The resistance of the flex sensor changes when the metal pads are on the outside of the bend (text on inside of bend).

Connector is 0.1" spaced and bread board friendly. Check datasheet for full specifications.

Note: Please refrain from flexing or straining this sensor at the base. The usable range of the sensor can be flexed without a problem, but care should be taken to minimize flexing outside of the usable range. For best results, securely mount the base and bottom portion and only allow the actual flex sensor to flex.

VIDEO

Documents:

Galería de Imágenes

Comentarios

Escribir Comentario

OpenHacks (07/12/2016 - 11:39)

Hola Facundo, solo cambia el proveedor. Saludos!

Facundo (06/12/2016 - 14:05)

Hola! cuál sería la diferencia con el otro Flex (cod. DF00009)? Gracias!
