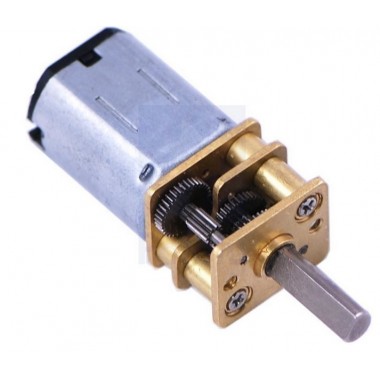

30:1 Micro Metal Gearmotor HP

30:1 Micro Metal Gearmotor HP

Motor miniatura del motor DC de alta potencia, con una relación de reducción de 29.86:1.

COD: P001093

Peso: 0.009 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 528.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

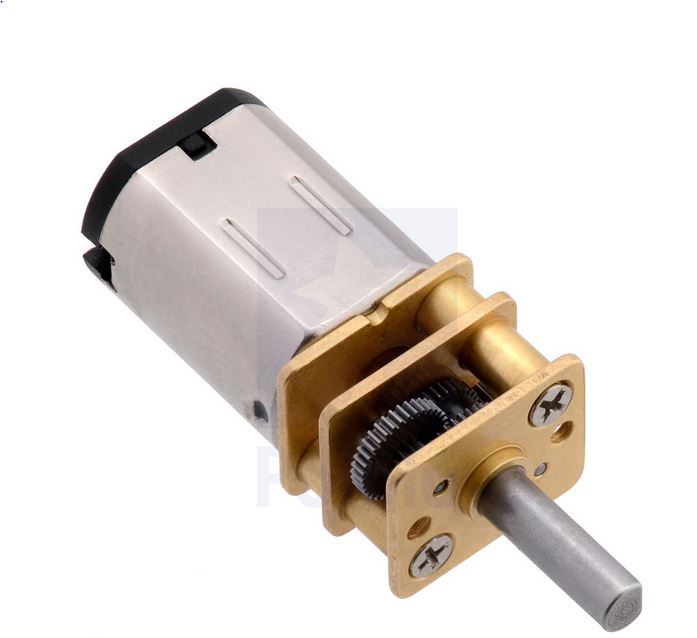

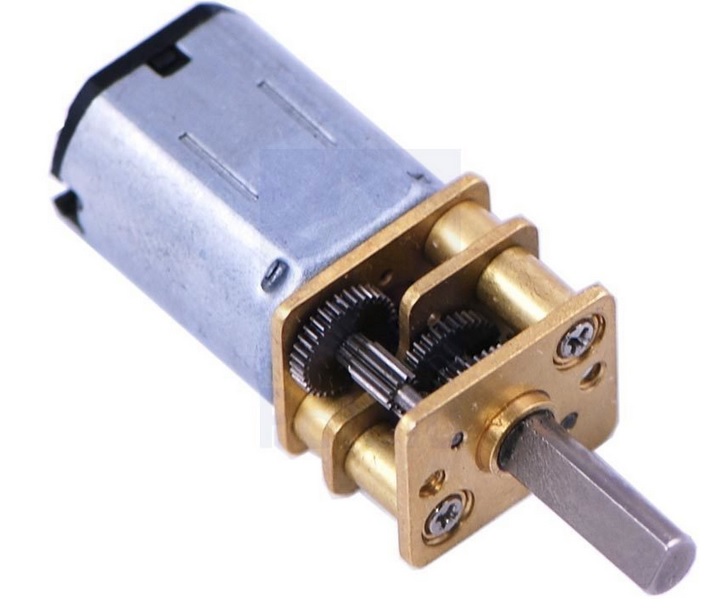

This gearmotor is a miniature high-power brushed DC motor with a 29.86:1 metal gearbox. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter.

Key specs at 6 V: 1000 RPM and 120 mA with no load, 9 oz-in (0.6 kg-cm) and 1.6 A at stall.

Overview

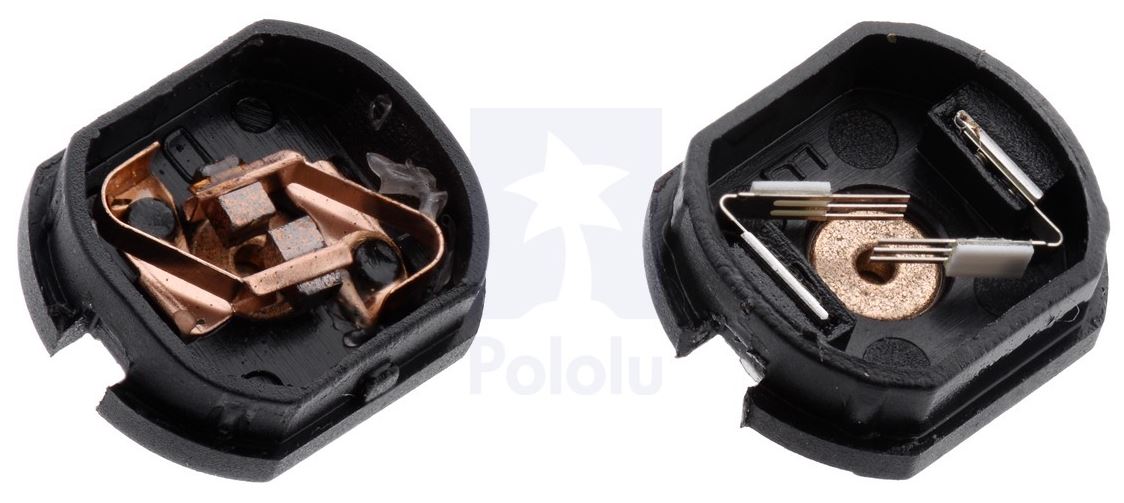

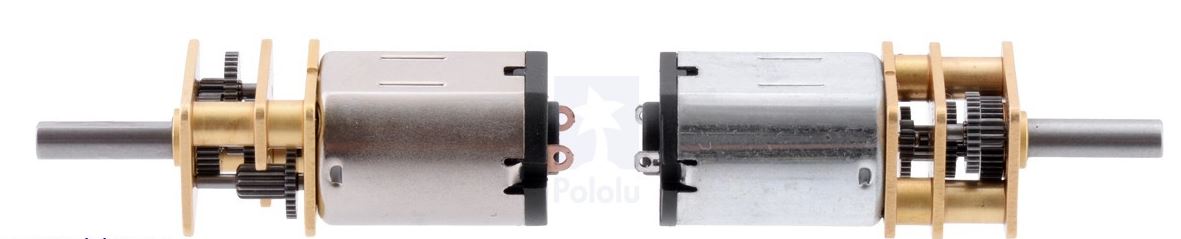

These tiny brushed DC gearmotors are intended for use at 6 V, though in general, these kinds of motors can run at voltages above and below this nominal voltage, so they should comfortably operate in the 3 – 9 V range (rotation can start at voltages as low as 0.5 V). Lower voltages might not be practical, and higher voltages could start negatively affecting the life of the motor. The micro metal gearmotors are available in a wide range of gear ratios—from 5:1 up to 1000:1—and with four different motors: high-power with long-life carbon brushes (HPCB), high-power with shorter-life precious metal brushes (HP), medium-power (MP), and low-power. The HPCB version (shown on the left in the picture below) can be differentiated from versions with precious metal brushes (shown on the right) by its copper-colored terminals and slightly less shiny case. Note that the HPCB terminals are 0.5 mm wider than those on the other micro metal gearmotor versions (2 mm vs. 1.5 mm), and they are about 1 mm closer together (6 mm vs. 7 mm).

With the exception of the 1000:1 gear ratio versions, all of the micro metal gearmotors have the same physical dimensions, so one version can be easily swapped for another if your design requirements change. Please see the micro metal gearmotor comparison table for detailed specifications of all our micro metal gearmotors. This dynamically-sortable table can help you find the gearmotor that offers the best blend of speed, torque, and current-draw for your particular application. A more basic comparison table is available below.

Dimensions

Size: 10 × 12 × 26 mm1
Weight: 9.5 g
Shaft diameter: 3 mm2

General specifications

Gear ratio: 29.86:1
Free-run speed @ 6V: 1000 rpm
Free-run current @ 6V: 120 mA
Stall current @ 6V: 1600 mA
Stall torque @ 6V: 9 oz·in
Extended motor shaft?: N
Motor type: 1.6A stall @ 6V (HP)

Notes:

1
Output shaft adds 9 mm to the 26 mm length.
2
D shaft.

Galería de Imágenes

Comentarios

Escribir Comentario

OpenHacks (08/08/2016 - 14:37)

Hola Franco, la velocidad es 1000rpm con la caja reductora incluida. Hacemos envíos a Tucuman a través de OCA y Correo Argentino. Saludos!

Franco (06/08/2016 - 09:03)

Buenas, quería saber si la velocidad del motor es 1000rpm con la caja reductora incluida. Hacen envíos a Tucuman? Saludos

OpenHacks (12/07/2016 - 11:06)

Hola Ivan, de momento no contamos con este motor a 12V. Saludos!

ivan (11/07/2016 - 19:35)

Hola queria saber si tienen este mismo motor de 1000rpm pero a 12VDc. Gracias

OpenHacks (14/12/2015 - 15:52)

Hola Giuliano, de momento no tenemos este motor con esa relación. Este tiene 47:1 : https://www.openhacks.com/page/productos/id/185/title/Motorreductor-250RPM-con-Encoder#.Vm8OnkrhCM8 . Saludos!

Giuliano Scaglioni (12/12/2015 - 18:47)

Hola, queria saber si tienen estos motores pero 50:1 o 75:1 . Saludos!.

OpenHacks (24/09/2015 - 15:40)

Alberto, en aproximadamente 45 días tendremos nuevamente. Saludos!

Alberto (24/09/2015 - 12:56)

Estimados, cuando creerían que tendrán stock de esos motores?

OpenHacks (04/09/2015 - 14:56)

Hola Micael, por el momento solo estamos trayendo el 30:1 Micro Metal Gearmotor HP. Saludos!

Micael (04/09/2015 - 14:21)

Hola, queria consultarte si van a venir unos motores como estos https://www.pololu.com/product/3063 (50:1-carbon brushes)
