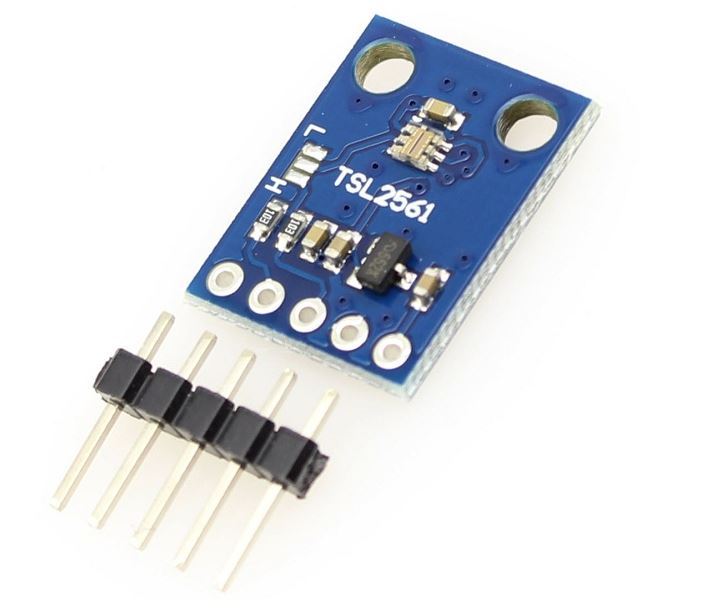

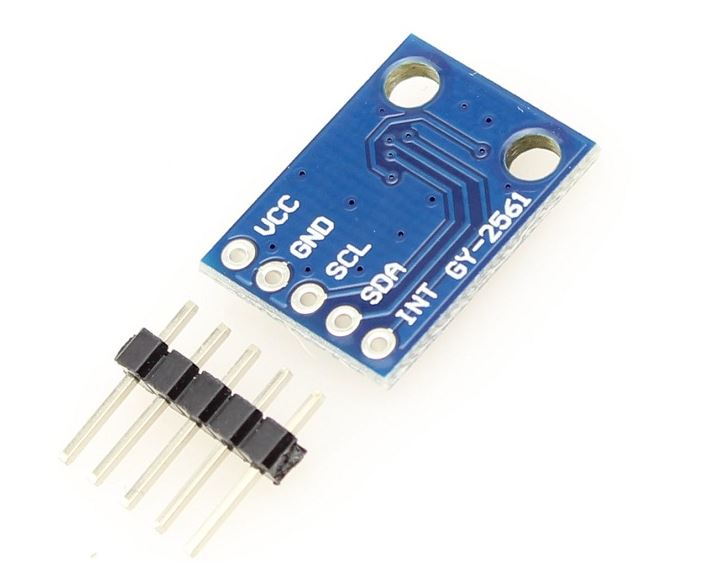

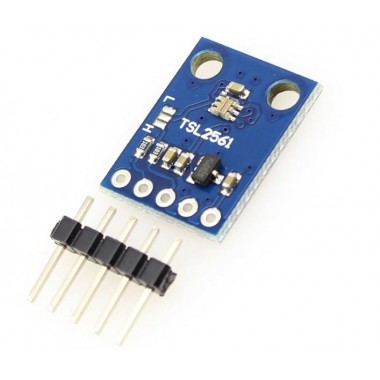

Luminosity Sensor- TSL2561 Breakout

Luminosity Sensor- TSL2561 Breakout

Sensor de luminosidad basado en TSL2561, con respuesta plana para casi todo el espectro luminoso. También mide parte del espectro infrarrojo, para mejor aproximación a la respuesta del ojo humano. Comunicación I2C.

COD: ESM2561TSL

Peso: 0.003 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 132.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

The TSL2561 Luminosity Sensor Breakout is a sophisticated light sensor which has a flat response across most of the visible spectrum. Unlike simpler sensors, the TSL2561 measures both infrared and visible light to better approximate the response of the human eye. And because the TSL2561 is an integrating sensor (it soaks up light for a predetermined amount of time), it is capable of measuring both small and large amounts of light by changing the integration time.
     The TSL2561 is capable of direct I2C communication and is able to conduct specific light ranges from 0.1 - 40k+ Lux easily. Additionally, the TSL12561 contains two integrating analog-to-digital converters (ADC) that integrate currents from two photodiodes, simultaneously.

Feature

  • I2C interfaces
  • Power supply:3.3v ~ 5v
  • a low supply current max of 0.6mA
