GBoard

GBoard

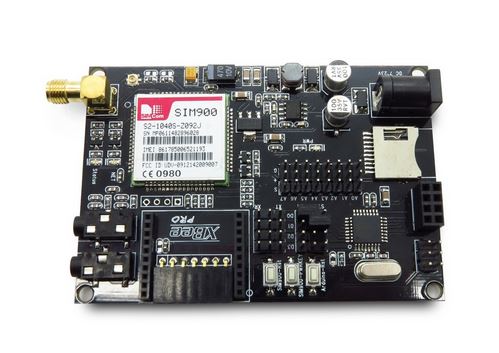

Placa compatible con Arduino que incorpora un módulo SIM900 GSM/GPRS, zócalo XBee, interfaz para nRF24L01+ y el micro ATMega328P.

COD: IM120411004

Peso: 0.000 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 126608.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Overview

Gboard is a unique Arduino board which features a SIM900 GSM/GPRS module, an XBee socket, nRF24L01+ module interface and an ATMega328P controller. This board will add wireless XBee / nRF24L01+ control as well as GSM/GPRS connectivity to your projects. It’s great for anything from home automation to robot control. The possibilities are endless!

Gboard can be used as a GSM/GPRS data transfer or wireless communication project development platform. Gboard support wide range power supply and Micro SD for mass storage. There are some 3pin electronic brick/ sensor brick interface breakout on board, it offer an easy way for a quick prototyping. The board requires FTDI basic board to upload sketch, you can use our Foca board to do it.

Note:

  • 1. There is no USB connector on the board nor is there any USB hardware, you have to use a serial connection or ICSP.
  • 2. When you upload sketch to Gboard, please choose the board Arduino Duemilanove w/ ATmega328Bootloader.
  • 3. The bootloarder file is ATmegaBOOT_168_atmega328.hex, you can find it in the directory arduinohardwarearduinoootloadersatmega
