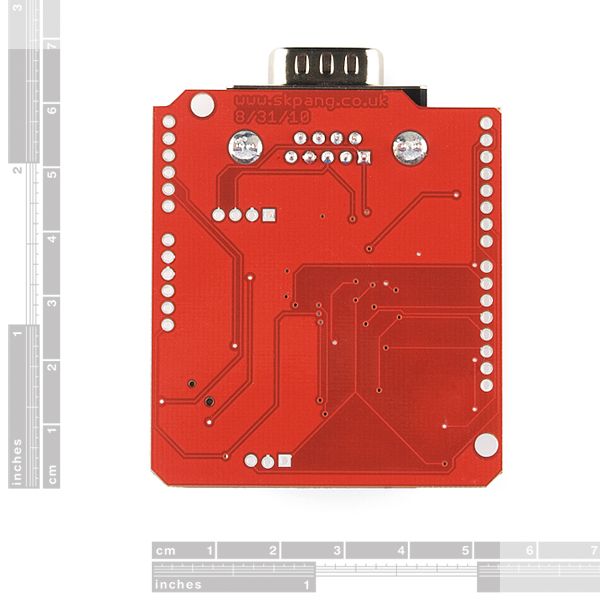

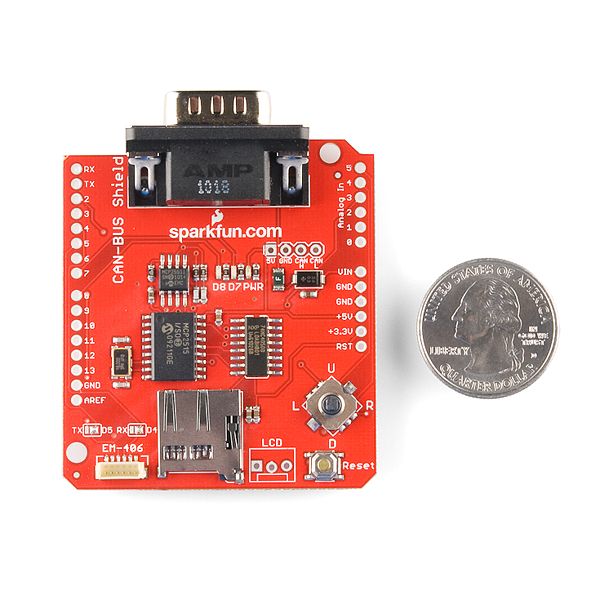

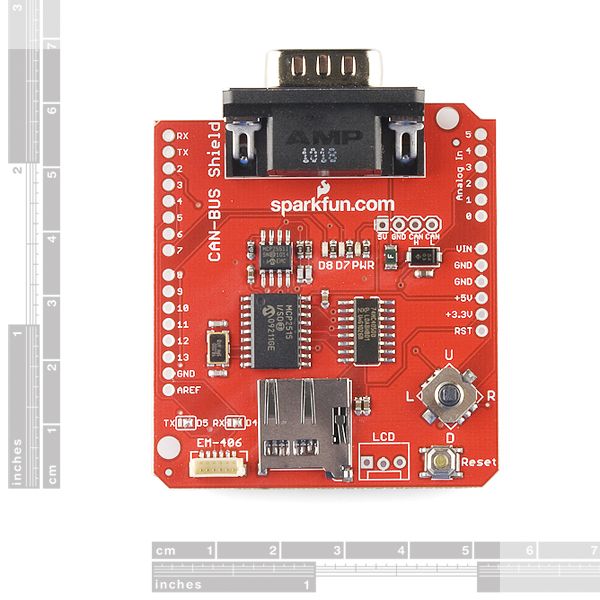

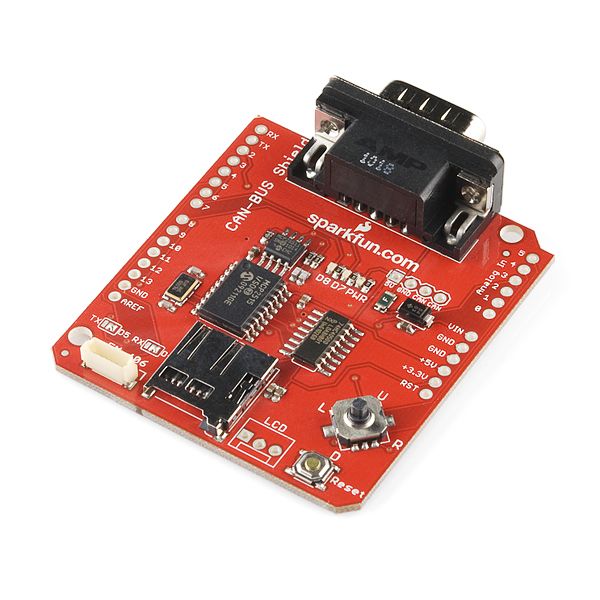

CAN-BUS Shield
Shield Arduino para comunicación con protocolo CAN-Bus
COD: SFDEV10039
Peso: 0.020 Kg
Disponibilidad: En Stock
ARS 71529.00
El producto no está disponible para la venta en este momento
Características
Description: This shield gives the Arduino CAN-Bus capability. It uses the Microchip MCP2515 CAN controller with MCP2551 CAN transceiver. CAN connection is via a standard 9-way sub-D for use with OBD-II cable. Ideal for automative CAN application. The shield also has a uSD card holder, serial LCD connector and connector for an EM406 GPS module. Making this shield ideal for data logging application.
-Cable not included - View the related products for a recommended cable to use with this board
Note: This product is a collaboration with SK Pang Electronics. A portion of each sales goes back to them for product support and continued development.
Features
- CAN v2.0B upto 1 Mb/s
- High speed SPI Interface (10 MHz)
- Standard and extened data and remote frames
- CAN connection via standard 9-way sub-D connector
- Power can supply to Arduino by sub-D via resettable fuse and reverse polarity protection.
- Socket for EM406 GPS module
- Micro SD card holder
- Connector for serial LCD
- Reset button
- Joystick control menu navigation control
- Two LED indicator
Documents:
- Schematic
- Eagle Files
- Datasheet (MCP2515)
- Datasheet (MCP2551)
