SparkFun Block for Intel Edison - 9 Degrees of Freedom

SparkFun Block for Intel Edison - 9 Degrees of Freedom

Este chip combina acelerómetro, giróscopo y magnetómetro de 3 ejes cada uno, para un completo sensado de movimiento. Comunicación I2C o SPI.

COD: SFDEV13033

Peso: 0.003 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 49428.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

The Intel� Edison is an ultra small computing platform that will change the way you look at embedded electronics. Each Edison is packed with a huge amount of tech goodies into a tiny package while still providing the same robust strength of your go-to single board computer. Powered by the Intel� Atom� SoC dual-core CPU and including an integrated WiFi, Bluetooth LE, and a 70-pin connector to attach a veritable slew of shield-like “Blocks” which can be stacked on top of each other. It’s no wonder how this little guy is lowering the barrier of entry on the world of electronics!

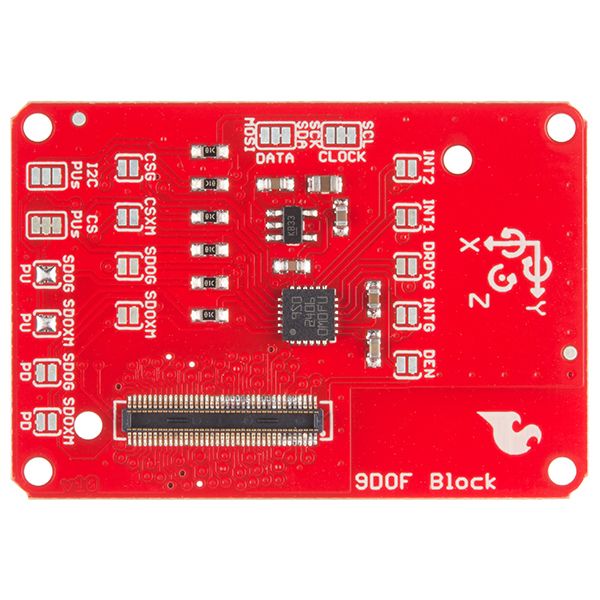

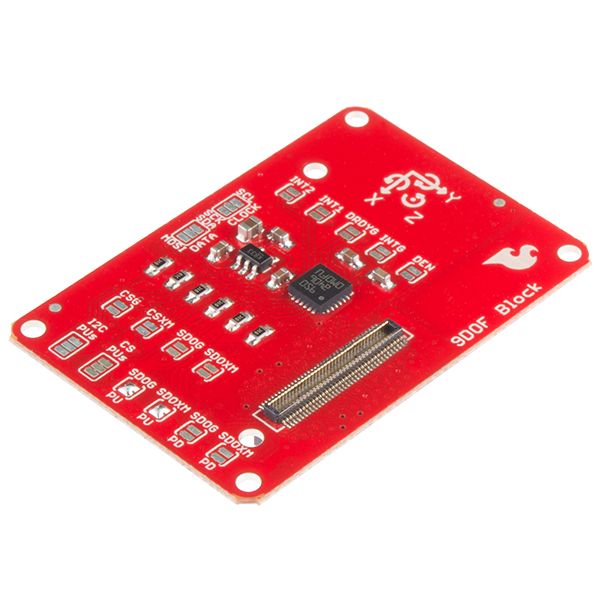

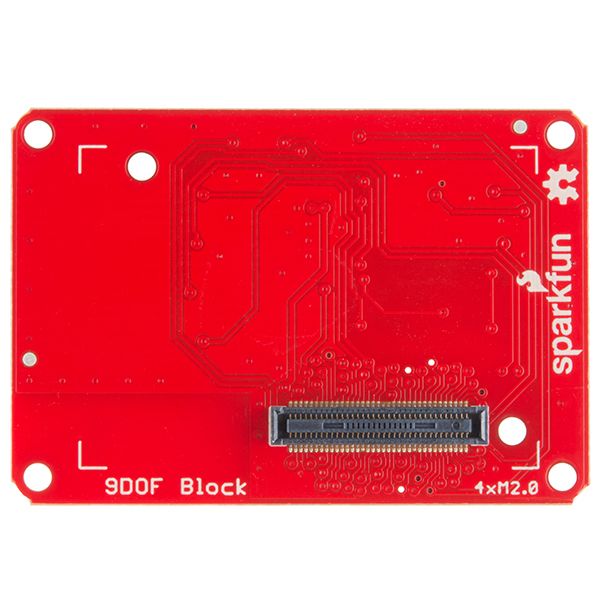

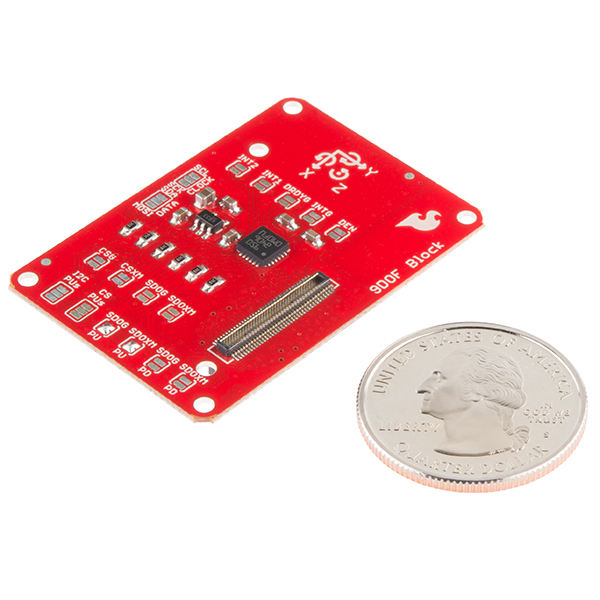

The 9 Degrees of Freedom Block for the Intel� Edison uses the LSM9DS0 9DOF IMU for full-range motion sensing. This chip combines a 3-axis accelerometer, a 3-axis gyroscope, and a 3-axis magnetometer. By default, the IMU is connected to the Edison through the I2C bus but it can be configured to use the SPI bus. Each sensor in the LSM9DS0 supports a wide range of, well, ranges: the accelerometer�s scale can be set to � 2, 4, 6, 8, or 16 g, the gyroscope supports � 245, 500, and 2000 �/s, and the magnetometer has full-scale ranges of � 2, 4, 8, or 12 gauss. Additionally, the LSM9DS0 includes an I2C serial bus interface supporting standard and fast mode (100 kHz and 400 kHz) and an SPI serial standard interface.

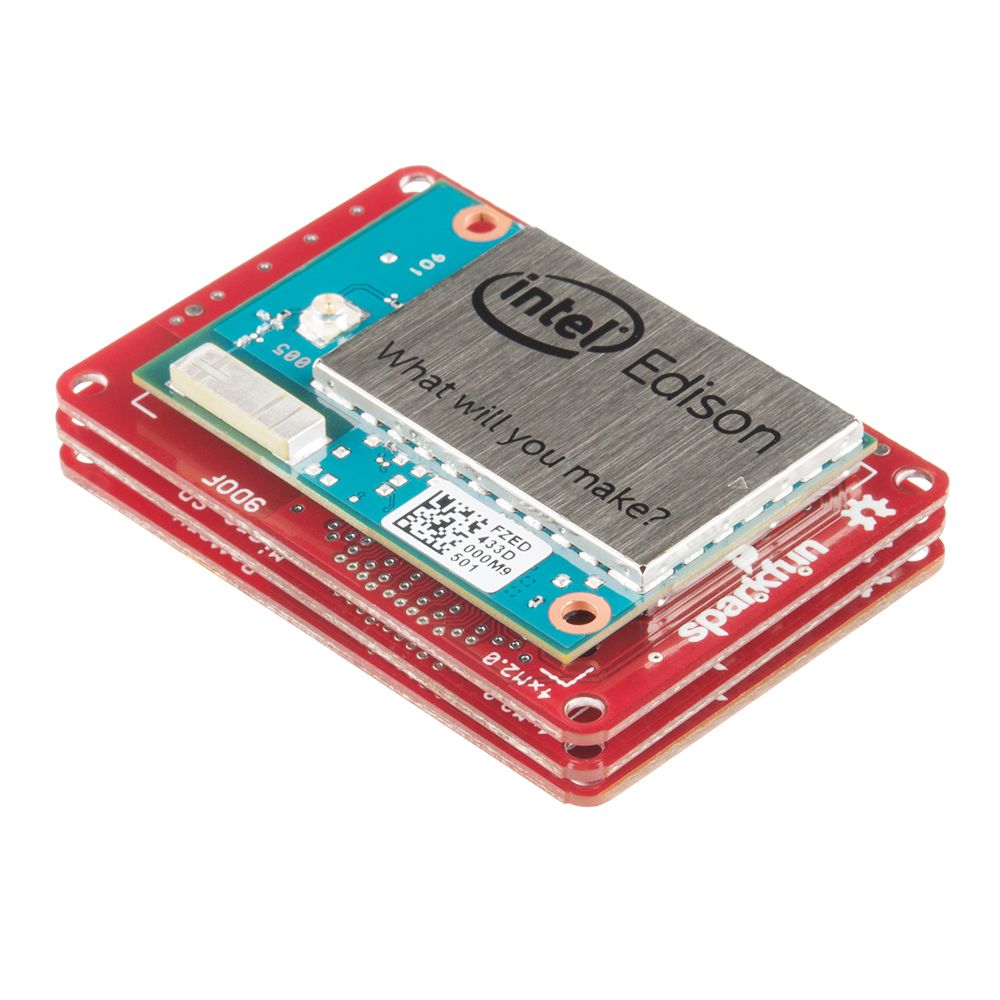

If you are looking to add a little more stability to your Intel� Edison stack, check out this Hardware Pack. It will provide you with increased mechanical strength for stacking Blocks on your Edison!

Note: This product is available for pre-order. We expect to have these built and shipping by late November. Adding a pre-order product to an order may cause a delay. Be sure to uncheck ‘ship complete order’ in your cart to avoid delays in shipping in-stock items.

Note: This product may have minor design or layout changes. Once the design is fully solidified, we will post the schematic and Eagle files. Functions and features will not change.
