MSP430F5529 LAUNCHPAD EVALUATION BOARD

MSP430F5529 LAUNCHPAD EVALUATION BOARD

Provee una manera fácil de empezar a desarrollar en el micro MSP430, con un emulador on board para programación y debug, además de botones y LEDs para una simple interfaz de usuario.

COD: N06X2931

Peso: 0.100 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 44554.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Product Information

  • Core Architecture: MSP430
  • Core Sub-Architecture: MSP430
  • Features: (Not Applicable)
  • Kit Contents: MSP-EXP430F5529LP LaunchPad, USB Cable, Quick Start Guide
  • No. of Bits: 16bit
  • SVHC: No SVHC (17-Dec-2014)
  • Silicon Core Number: MSP430F5529
  • Silicon Family Name: MSP430F5xx
  • Silicon Manufacturer: Texas Instruments
Description

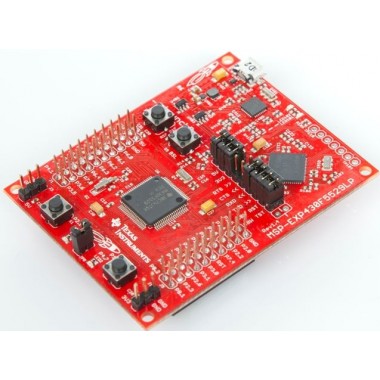

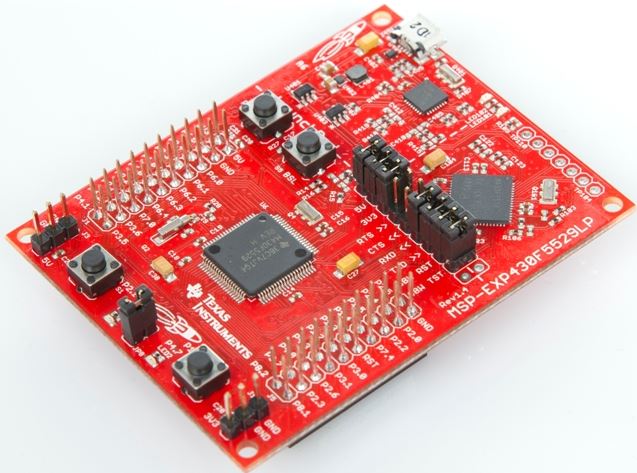

Develop low power, PC-connected applications with integrated Full-speed USB 2.0 (HID/MSC/CDC).  The MSP-EXP430F5529LP LaunchPad is an inexpensive, simple microcontroller development kit for the MSP430F5529 USB microcontroller. It’s an easy way to start developing on the MSP430 MCU, with an on-board emulation for programming and debugging, as well as buttons and LEDs for simple user interface.

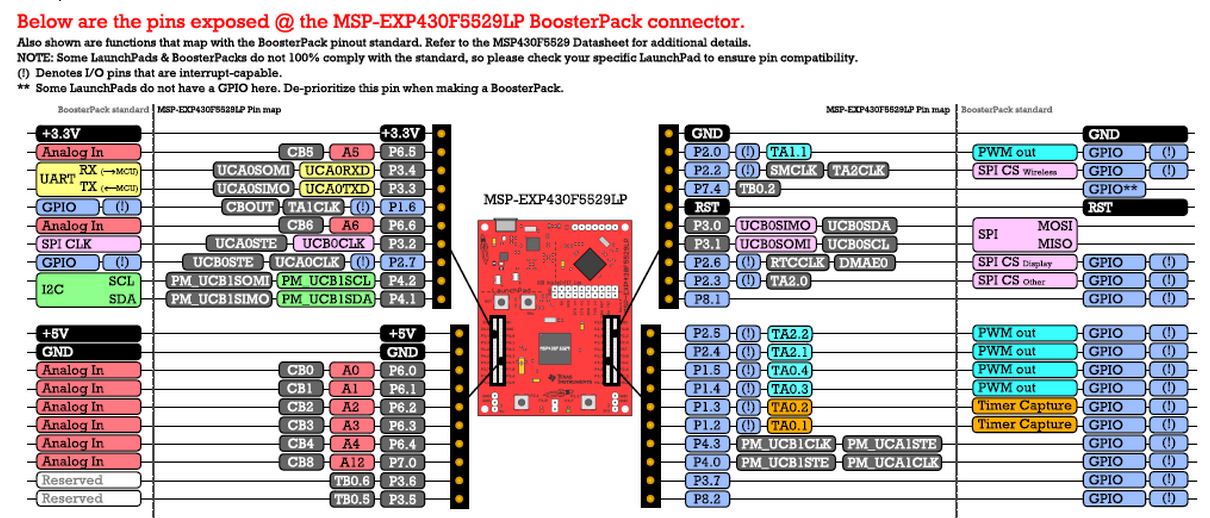

Rapid prototyping is a snap, thanks to 40-pin BoosterPack expansion headers, as well as a wide range of available BoosterPack plug-in development board modules. You can quickly add features like wireless, displays, sensors, and much more. You can either design your own BoosterPack, or choose among many already available from TI and elsewhere. The 40-pin interface is compatible with any 20-pin BoosterPack that is compliant with the standard.

The MSP-EXP430F5529LP LaunchPad includes the MSP430F5529 16-bit MCU with 128KB Flash, 8KB RAM, up to 25MHz CPU speed, integrated USB 2.0 PHY, 12-bit analog-to-digital converter (ADC), timers, serial communication (UART, I2C, SPI) and more!

You can browse all documentation online with TI Resource Explorer and start development with the online CCS Cloud IDE. Other professional development environments are also available, such as TI's Eclipse-based Code Composer Studio and IAR Embedded Workbench.

More information about the LaunchPad, as well as supported BoosterPacks, can be found at theTI LaunchPad website.

Galería de Imágenes

Comentarios

Escribir Comentario

OpenHacks (19/08/2015 - 15:28)

Tenemos stock, saludos!

Gustavo Rodriguez (18/08/2015 - 17:06)

Hola buenas tardes, queria consultarles si actualmente tienen en stock el MSP430F5529 LAUNCHPAD EVALUATION BOARD de Texas Instruments; como para poder realizar la compra. Desde ya muchas gracias!!!
