EMW3162 WiFi Module (External IPEX antenna)

EMW3162 WiFi Module (External IPEX antenna)

Módulo WiFi con antena IPEX externa

COD: SE101990071

Peso: 0.010 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 504.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

EMW3162 WiFi Module(External IPEX antenna)is the new module that design by MXCHIP in the 2013. For the embedded products applications, it focus on the ultra-low power low cost. This Wi-Fi wireless LAN module. It combines the latest Wi-Fi technology and microcontroller technology, within IEEE802.11b/g/n wireless communications and a variety of energy-saving mode, widely used in a variety of new intelligent electronic products. It has the latest features EMW316x series modules, but also keep the pin is fully compatible with EMW3280 module.

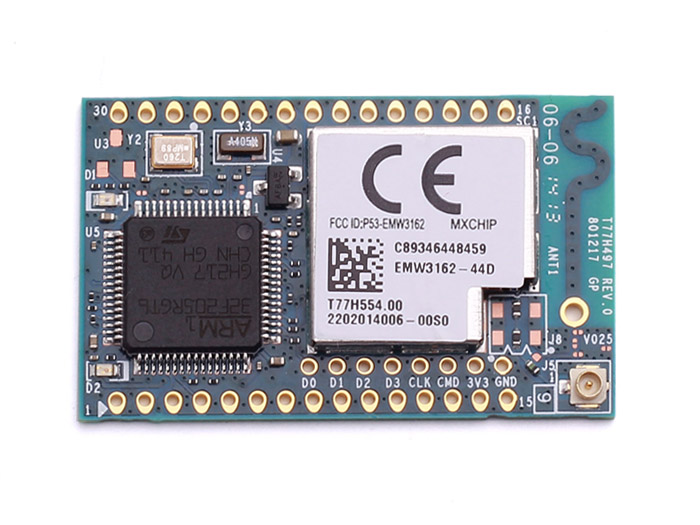

EMW3162 built-in frequency up to 120MHz Cortex-M3 microcontroller STM32F205RG, 1M byte of Flash, 128k bytes of SRAM and extensive peripheral functions with the MxchipWnet embedded Wi-Fi firmware.

Users can easy and quick add Wi-Fi network communications capabilities for embedded devices. You can use MxchipWNet software library developed directly on a variety of embedded Wi-Fi module applications.



Features:

  • Easy Link a key configuration
  • Ultra-low power consumption, keep the network connection only 7mA
  • Seamless roaming switch
  • Network transmission speed, the actual up to 20Mbps
  • Built-in real-time operating system, the new software system



Specification:

Typical applications:

  • Building automation / access control, security control systems
  • Automatic House appliances
  • Medical and personal care system
  • Mobile point of sale system (POS)
  • Automotive Electronics

We also have another product, EMW3162 WiFi Module (with antenna inside)please click here to check.

If you have any technical problem, please contact (sales(at)mxchip.com )

Galería de Imágenes

Comentarios

Escribir Comentario

OpenHacks (15/10/2015 - 09:32)

Hola Federico, la información que tenemos del producto es la especificada en la descripción. No hemos tenido todavía tiempo para probarlo. Saludos!

Federico Garcia Cruz (13/10/2015 - 12:09)

Hola que tal? Mi pregunta es como se programa el micro que tiene?
