Analog Electrical Conductivity Meter (With Temperature Compensation)

Analog Electrical Conductivity Meter (With Temperature Compensation)

Medidor de electroconductividad (EC) con compensación por temperatura, para conocer la salinidad de suelos, sistemas de riego o soluciones de fertilizantes. Es un parámetro importante que afecta las raíces de las plantas y por consiguiente el rendimiento y salud de las mismas.

COD: DFR0300

Peso: 0.200 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 2822.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

INTRODUCTION


Why measure EC? The salinity of the soil, irrigation water systems or fertilizer solutions is an important parameter affecting the root zone environment of your plants. Any of these factors can have a significant effect on plant growth and quality. The presence of high salt levels is your warning sign to make adjustments. Low-salt levels could lead to nutrient deficiencies. Don’t wait for trouble, measure before the damage shows in your plants. In terms of liquid, we often use the reciprocal of resistance, which is conductance, as a measurement. The conductivity of water can reflect the level of electrolytes present in the water. Depending on the concentration of the electrolyte, the conductivity of the aqueous solution is different.

This Analog EC Meter is unique. It is designed specially for Arduino controllers and has built-in simple, convenient and practical features. After simple connections according to our diagram and uploading the program, you will be able to measure the EC value easily.






APPLICATIONS

  • Water quality monitoring.
  • Aquaculture.
  • Hydroponic & Aquaponic.

SPECIFICATION

  • Operating Voltage: +5.00 V
  • PCB Size: 45 × 32mm
  • Measuring Range: 1ms/cm -- 20ms/cm
  • Operating Temperature: 5 - 40 �??
  • Accuracy: < ±5% F.S (using Arduino 10 bits ADC)
  • PH2.0 Interface (3-pin SMD)
  • Conductivity Electrode (Electrode Constant K = 1,BNC connector)
  • Cable Length of the Electrode: about 60cm
  • DS18B20 Temperature Sensor(Waterproof)
  • Power Indicator

DOCUMENTS

  • WiKi Doc
  • Schematic
  • Electrode User Manual

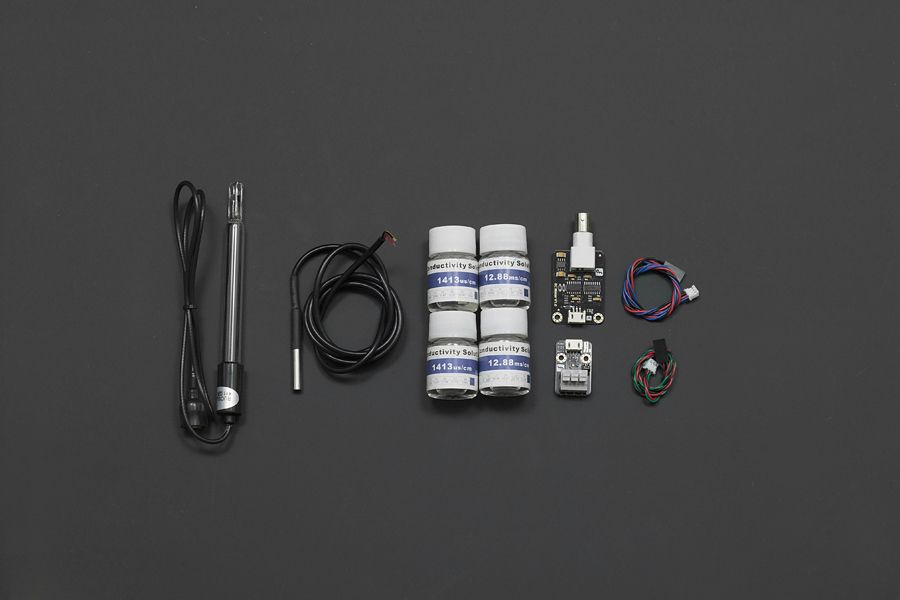

SHIPPING LIST

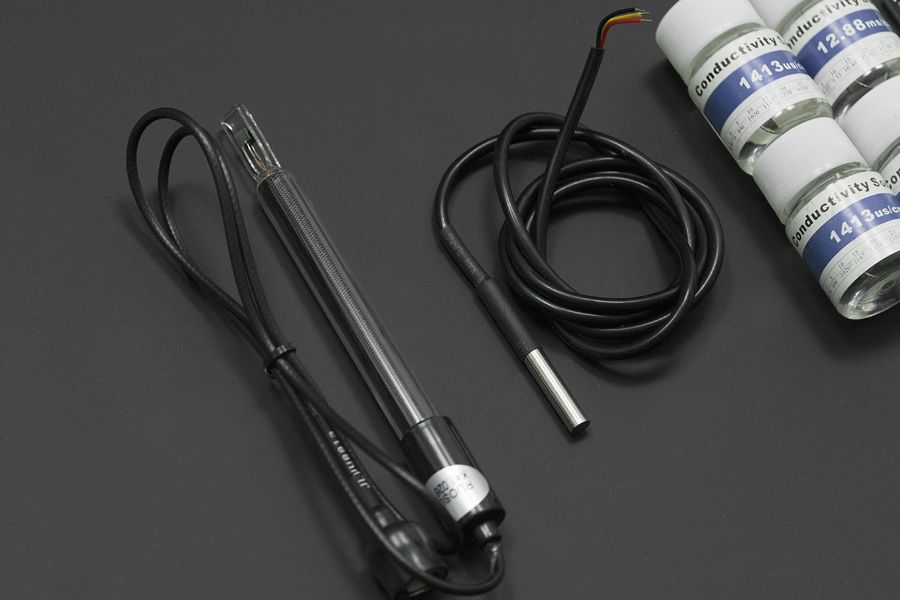

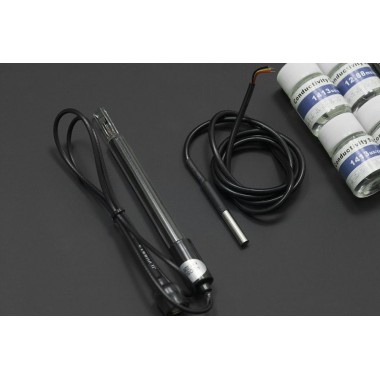

  • Conductivity Electrode (BNC Connector)

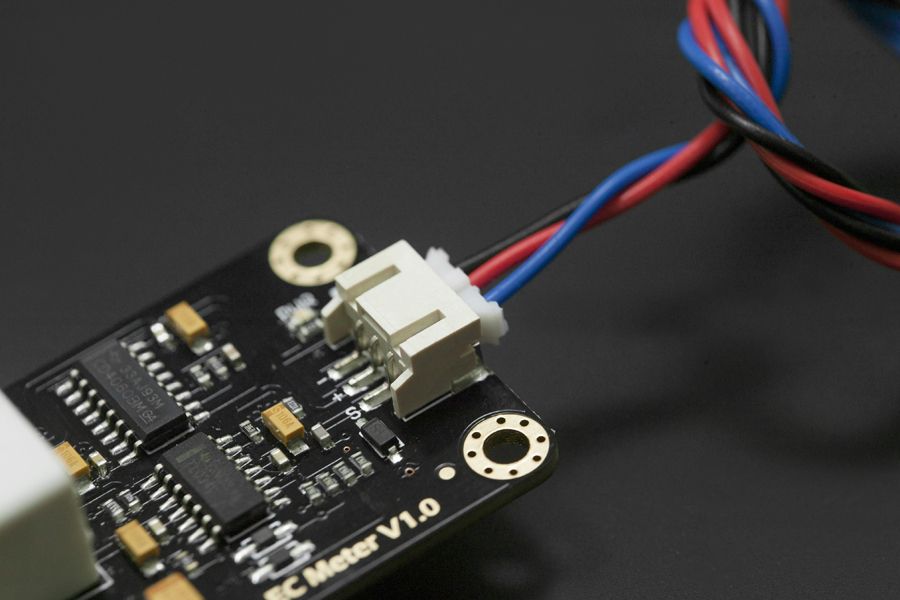

  • EC Meter V1.0 and Cable
  • DS18B20 Temperature Sensor (waterproof)
  • Plugable Terminal Adapter V2 and Cable
  • Conductivity Standard Solution (1413us/cm and 12.88ms/cm)
