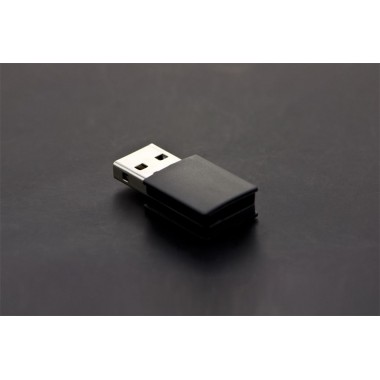

USB BLE-Link (Support Wireless Programming)

USB BLE-Link (Support Wireless Programming)

Añade bluetooth 4.0 a tu PC o Mac, directamente con este USB BLE-Link.

COD: DFTEL0087

Peso: 0.010 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 395.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

INTRODUCTION

Add bluetooth 4.0 to your PC, Mac directly with this USB BLE-Link. It uses the USB package which is compact and compatible with v2.1 and earlier, and also supports the latest v4.0/Bluetooth Low Energy. Now you could use this adapter to receive/transmit data.

With two USB-BLE Link users can do point-to-point wireless transparent transmission, master-slave machine setting, and wireless programming. It can also work as a PC BLE wireless programming adapter. Comaptible all DFRobot BLE series modules: i.e. BlunoRomeo BLE, etc

SPECIFICATION

  • Bluetooth chip: TI CC2540
  • Frequency: 2.4GHz
  • Pin Layout: Compatible with Xbee pinout
  • Transfer rate: ≤1Mbps
  • Modulation: GFSK, bluetooth low power, V4.0
  • Sensitivity: -93dB
  • Input Voltage: +3.3 DC
  • Operating temperature�? -10 �?? ~ +85 �??
  • Transmission distance: 5~15m in free space
  • Size: 32mm * 16mm
  • support AT command to debug the BLE
  • support master-salve switch
  • support transparent transmission serial port
  • support bluetooth remote update the Arduino program

DOCUMENTS

SHIPPING LIST

  • USB BLE-LINK x1
