BLE Bee Compatible Xbee And Wiressless program

BLE Bee Compatible Xbee And Wiressless program

Módulo BLE Bluetooth 4.0 con formato Xbee. Se puede usar con Arduino y otros MCU, para controlar facilmente robots y drones entre otros.

COD: EF03152

Peso: 0.008 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 649.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description?

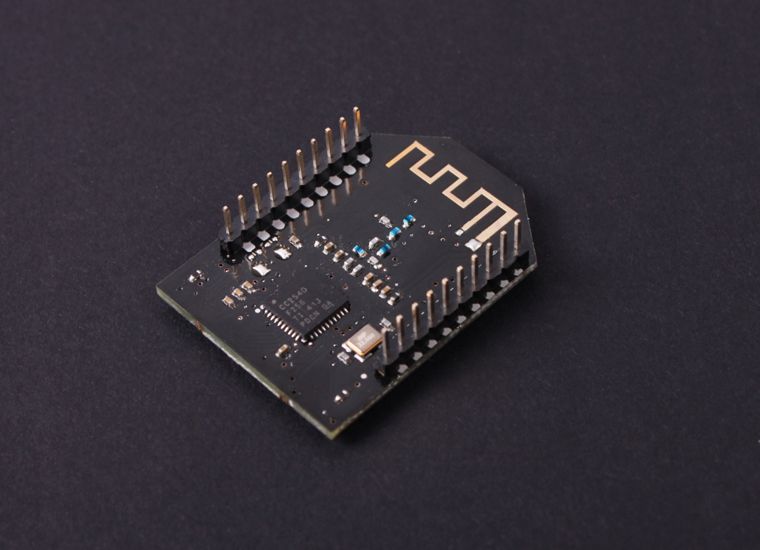

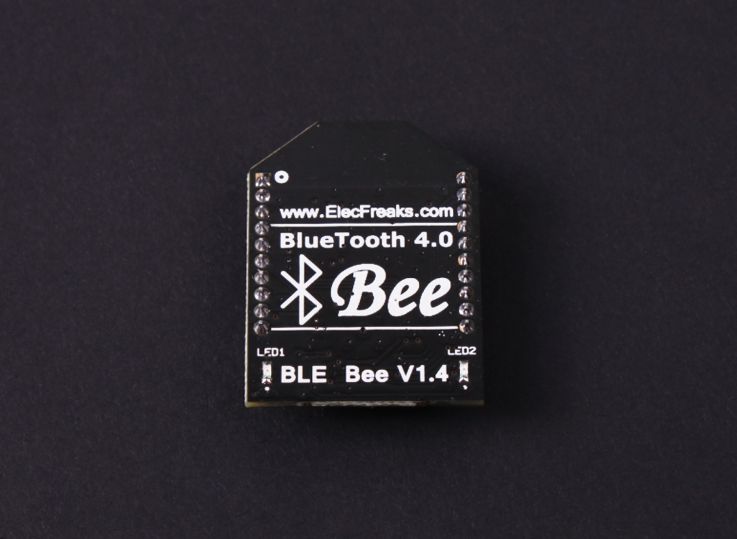

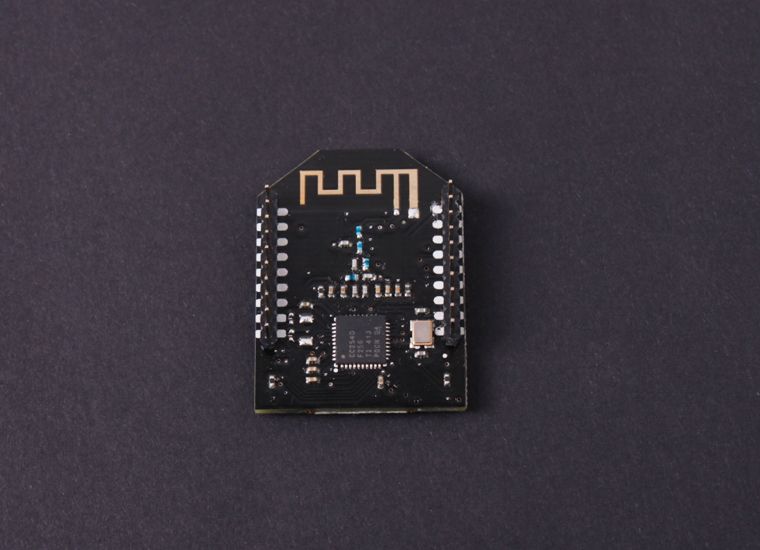

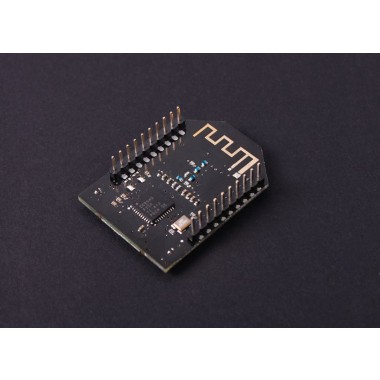

The BLE Bee is a Bluetooth 4.0 BLE and compatible with Xbee.You can use it with Arduino and other MCU. Using with our APP,you can easily control robot ,drone and others by BLE.

Adopting TI CC2540 chip with 256 KB space, the BLE Bee module can use BLE technology through the simple IO control, between the module and mobile, also between the module and module. The BLE module has both Master and Slave Mode, with the command control, through the serial port capable of switching module master-slave role, capable of configuring the serial port baud rate, capable of modifying the module radio name, capable of modifying the broadcast interval and the connection interval. Using this module, users can quickly transmit data in the form of Bluetooth packet.

Features?

  • Small size, light weight, UART interface, compatible with Bee Adapter
  • Develop bands, working band of 2.4GHz
  • Wireless transfer rate up to 1Mbps
  • Using PCB antenna, the reliable transmission distance greater than 50 m
  • BLE protocol depth optimization, standby power 60 ~ 800uA
  • Master-Slave in one, arbitrarily switching
  • Supporting Android 4.3, IOS, PC
  • Operating voltage?3.3V
  • Dimension?26*34mm

Applications?

  • POS system, Bluetooth keyboard, mouse, gamepad
  • Industrial remote control, telemetry
  • Automotive testing equipment
  • Portable, battery-powered medical equipment
  • Automated data collection
  • Bluetooth remote control toys
  • Wireless LED Display System
  • Bluetooth Printer
  • Smart home, industrial control

Documents:

  • Datasheet
  • AT Command
  • Code Demo
  • Schematics
  • Specification
  • user_guide

Please visit our wiki page for more info about this product. It will be appreciated if you can help us improve the documents, add more demo code or tutorials.
