BLEduino - BLE For Arduino

BLEduino - BLE For Arduino

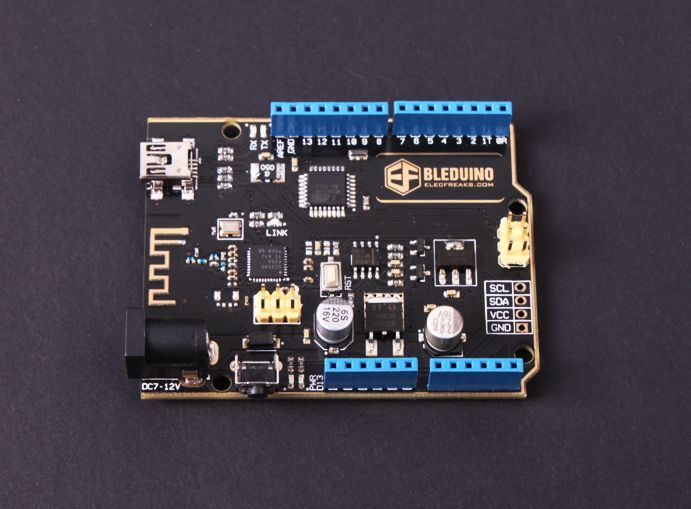

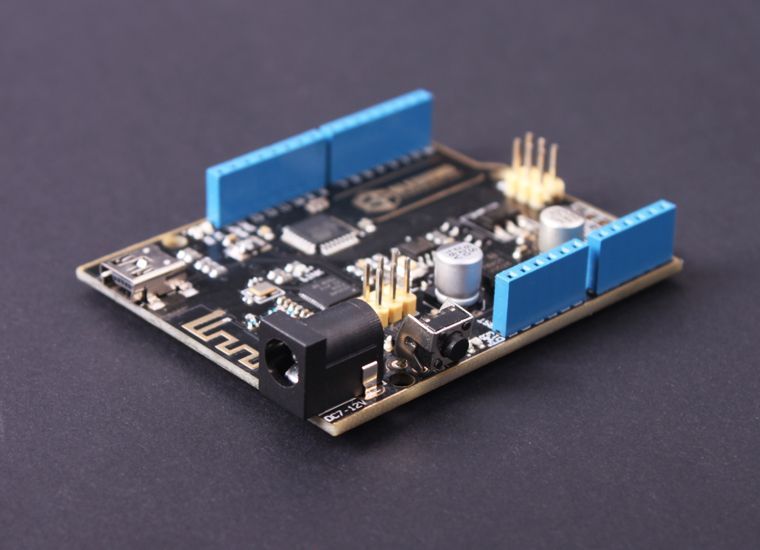

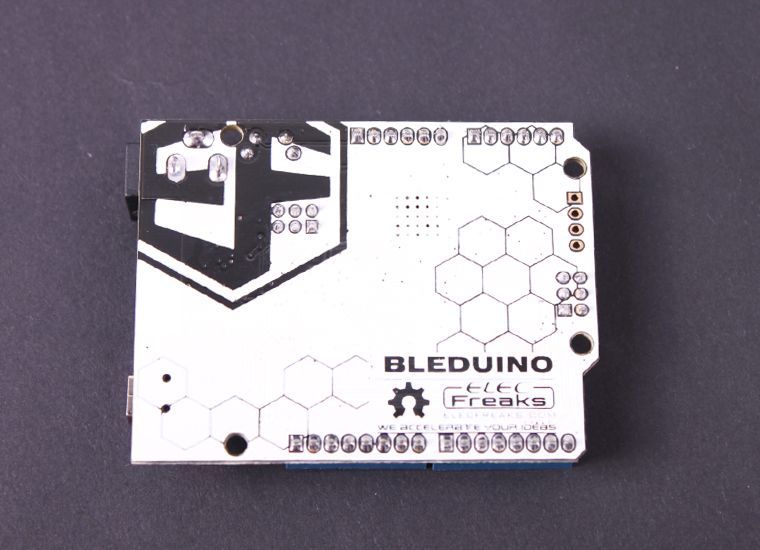

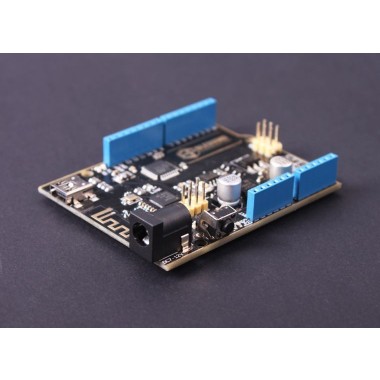

BLEduino integra el chip TI CC2540 BT 4.0 con la placa de desarrollo Arduino UNO, sumándole la funcionalidad de bluetooth a la misma.

COD: EF01021

Peso: 0.035 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 49457.00


El producto no está disponible para la venta en este momento



It's time to get Bluetooth 4.0 into your project, together with your phone! For aficionados of smart devices and wearables, now you can go further than hacking things bought in the market to building your own prototype out of garage. The BLEduino board is first of its kind in intergrating BT 4.0(BLE) module into Arduino Uno, making it an ideal prototyping platform for both software and hardware developers to go wireless. You will be able to develope your own smart bracelet,smart pedometer and more. Through the low- power Bluetooth 4.0 technology, real-time low energy communication can be made really easy. The BLEduino integrates with a TI CC2540 BT 4.0 chip with the Arduino UNO development board. It allows wireless programming via BLE, supports Bluetooth HID, supports AT command to config the BLE, and you can upgrade BLE firmware easily. The BLEduino is also compatible with all Arduino Uno pins which means any project made with Uno can directly go wireless! Whatsmore, we also developed the App for the BLEduino (both Android and IOS), and they are completely opensource, so that you can modify and develope your own BLE-hardware platform. Below is a quick demo video covering some of the major features of BLEduino with the help of an Accessory Shield for BLEduino, which will also be available very soon. In short, you can use BLEduino with any Bluetooth 4.0 compatible devices and enjoy features such as wireless transmission, master and slave settings, wireless burning, and even establishing a Bluetooth HID connection with the PC

Note: For the demo application and arduino code, we integrated elecfreaks wireless libraries for the beginners. The idea is supplying a simple way for you to use wireless modules without learning the wireless comunication protocol.However, for the developer, recommend to custom or choose the protocol according to the product features or the application.



  • On-board BLE chip: TI CC2540
  • Transmission range: more than 35m
  • Support Bluetooth HID
  • Support iBeacons
  • Support AT command to config the BLE
  • Transparent communication through Serial
  • master-slave one, arbitrary switching
  • Easy to use BLE firmware updating
  • Microcontroller: Atmega328
  • Bootloader: Arduino Uno
  • Compatible with the Arduino Uno pin mapping
  • Immersion Gold Technology
  • DC Supply: USB Powered or External 7V~12V DC
  • Size: 85mm*53mm


  • POS system, Bluetooth keyboard, Mouse, Gamepad
  • Industrial remote control, telemetry
  • Automotive testing equipment
  • Portable, battery-powered medical equipment
  • Automated data collection
  • Bluetooth remote control toys
  • Wireless LED Display System between devices.
  • Bluetooth Printer
  • Smart home, industrial control


Please visit our wiki page for more info about this product. It will be appreciated if you can help us improve the documents, add more demo code or tutorials.
