Bluetooth Bee HC-06

Bluetooth Bee HC-06

Módulo compatible con Bluetooth SPP y zócalo Xbee integrado.

COD: EF03074

Peso: 0.010 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 40133.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description

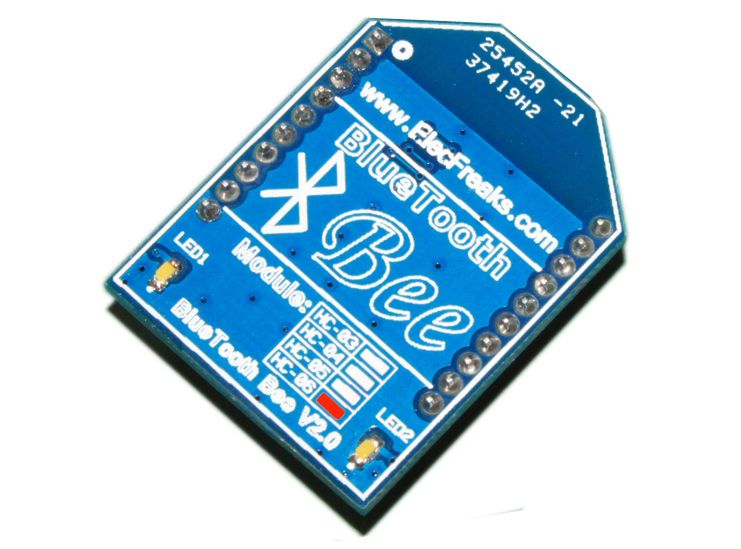

Bluetooth Bee is an easy to use Bluetooth SPP module compatible with existing Xbee sockets, designed for transparent wireless serial connection setup.

Bluetooth Bee is designed for transparent wireless serial connection setup. This is a fully qualified Bluetooth V2.0+EDR (Enhanced Data Rate) 3Mbps modulation with complete 2.4GHz radio transceiver. It uses CSR Bluecore4-external single chip Bluetooth system with CMOS technology and with AFH (Adaptive Frequency Hopping).

It can be configured to Master, Slave or Loopback three different modes(HC-06 just be Slave), and it will connect to or be connected by other devices that support SPP protocol per configuration, and it is a suitable substitute for most applications.

We recommend assemble with XBee Shield with logic level converter or Arduino XBee/Bluetooth Bee USB Adapter.

The AT command reference to "AT command set(HC-06)"

Specifications��?

Microprocessor

CSR BC417

PCB size

33.7mm * 25.2mm * 1.6mm

Indicators

PWR State

Power supply

3.3V DC

Communication Protocol

UART Bluetooth2.0

RoSH

Yes



Documents:



    Please visit our wiki page for more info about this product. It will be appreciated if you can help us improve the documents, add more demo code or tutorials.
