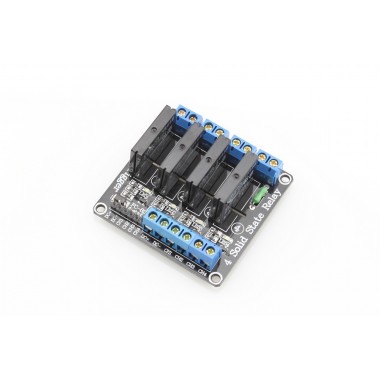

4-Channel Solid State Relay Module

4-Channel Solid State Relay Module

Módulo de relé de estado sólido de 4 canales. Soporta hasta 2A / 240VAC por canal. La señal de disparo es en nivel alto.


Peso: 0.025 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 912.00


El producto no está disponible para la venta en este momento



Compares with the traditional mechanical relay, the Solid State Relay (SSR) has many advantages: it has a longer life, with a much higher turn on/off speed and no noise. Besides, it also has better resistance to vibration and mechanical shock, and better moisture proof performance.

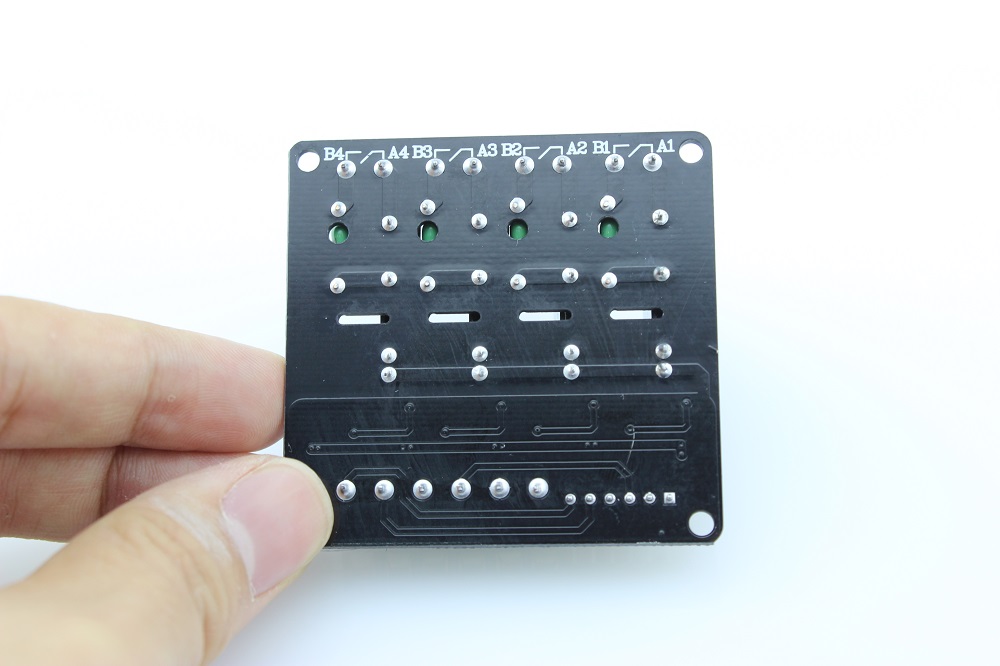

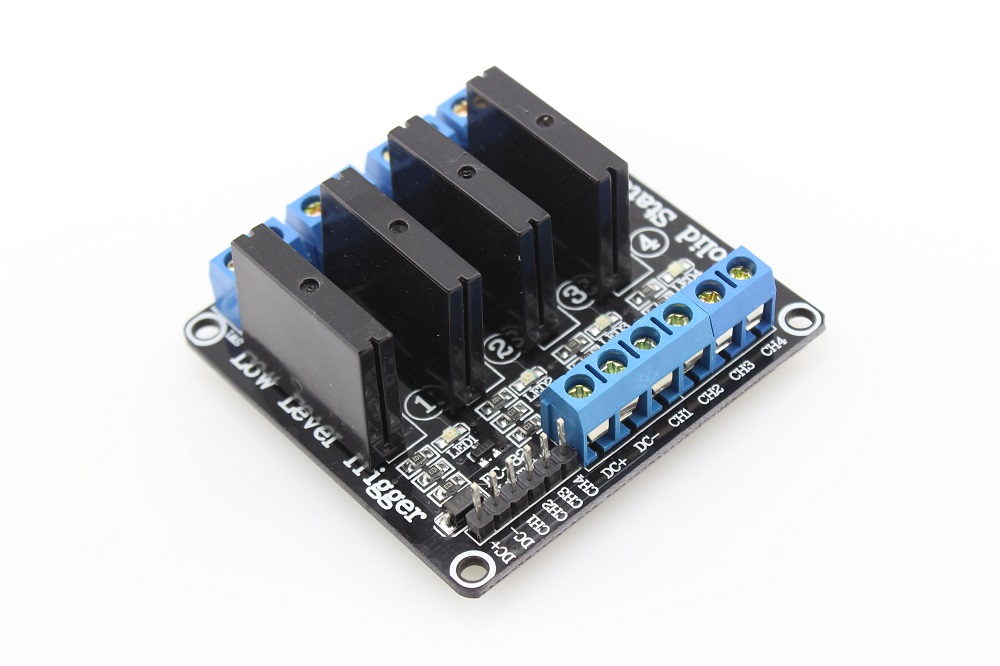

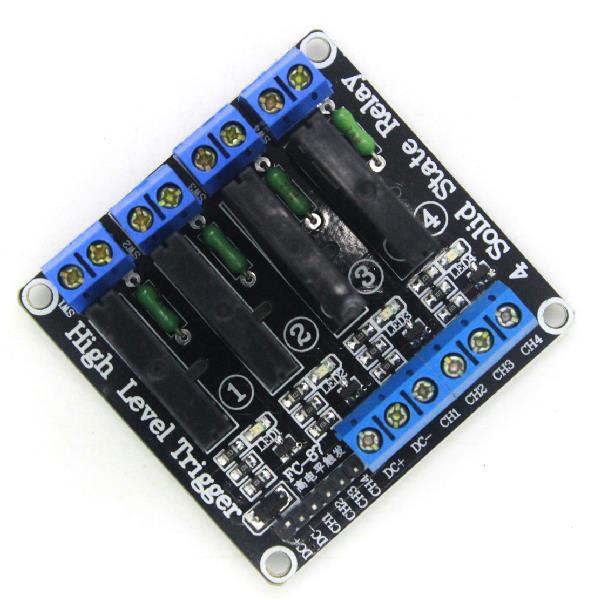

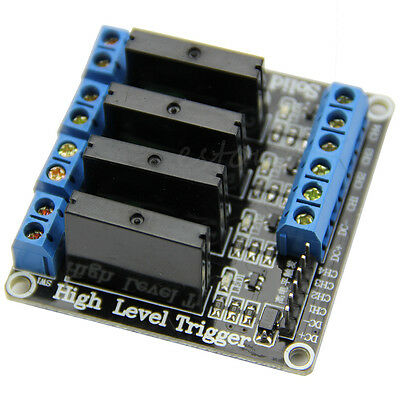

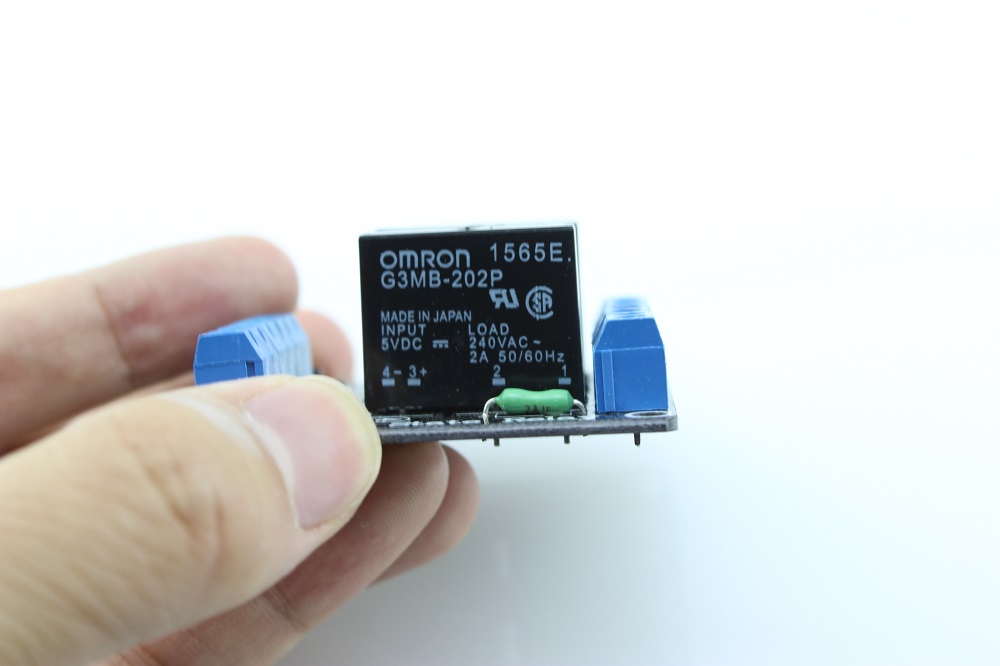

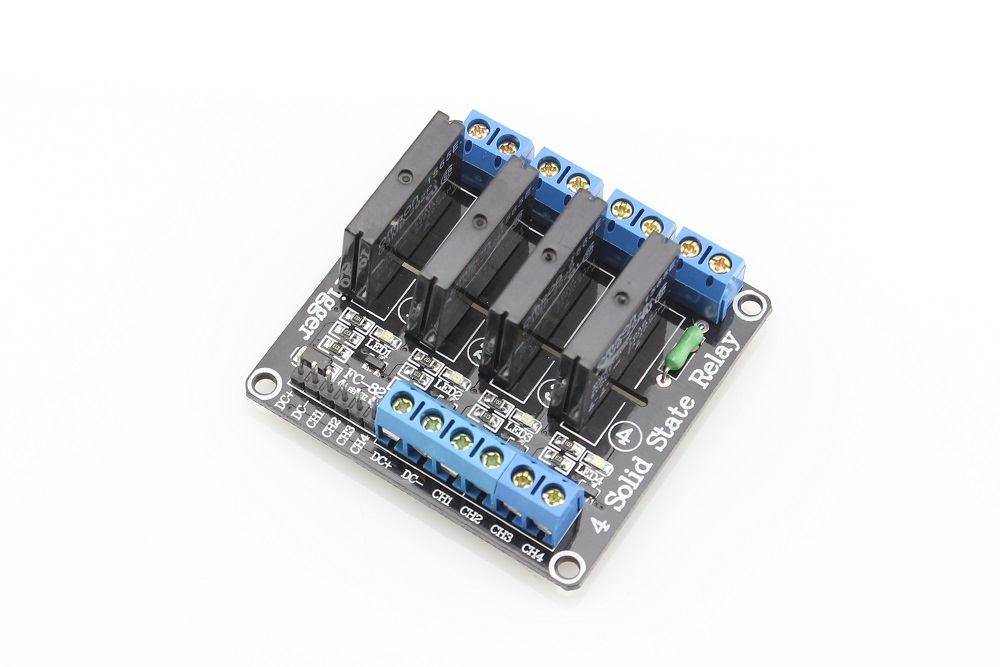

This Solid State Relay Module has four channels, which work and be controlled separately. it is based on Omron G3MB, to control current upto 2A@240VAC, can be widely used in various areas such as computer peripheral interfaces, temperature/speed light adjustment, servo control, petrochemical, medical instrumentations, financial devices, coal, meters, traffic signals, etc.



  • Channel: 4.
  • Control Voltage: 5V.
  • Working Current: 12.5mA.



  • DC+:Connect power positive.
  • DC-:Connect power negative.
  • CH1&2&3&4:Relay module signal trigger end(High level trigger is effective).
  • Wiring: When the triggered by HIGH voltage, current will get through.
