MPLAB Compatible Mini USB PIC Programmer

MPLAB Compatible Mini USB PIC Programmer

Programador de microcontroladores PIC, de Microchip. Se alimenta desde el mismo puerto USB. Incluye zócalo ZIF de 20 pines. Para programar PICs con mayor cantidad de pines, puede utilizarse el conector par programación in-circuit (ICSP). Requiere cable USB (no incluido).


Peso: 0.105 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 1664.00


El producto no está disponible para la venta en este momento

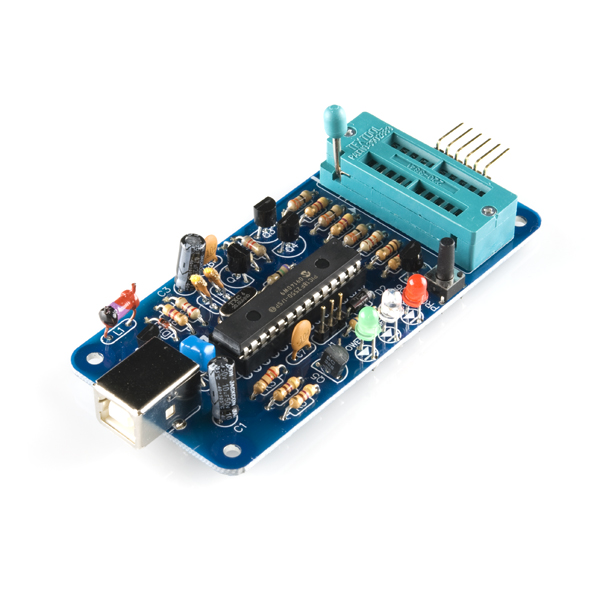

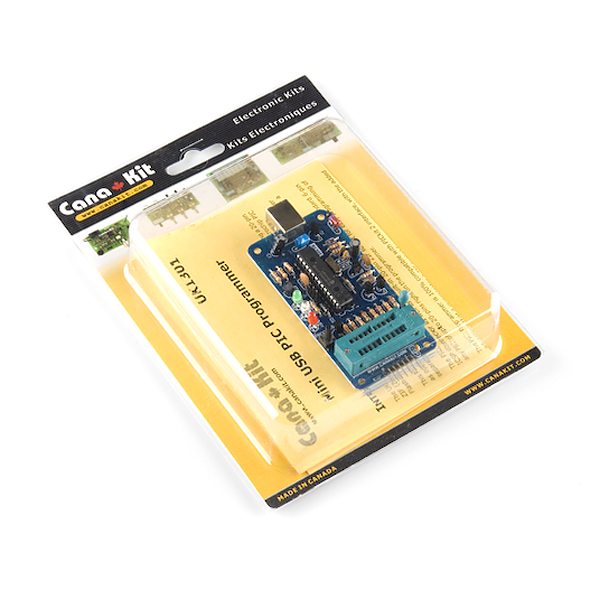

This PIC programmer, from Cana Kit, is a professional, compact USB PIC Programmer offering a 20-pin ZIF (Zero Insertion Force) socket for easy PIC programming. The PIC Programmer is 100% compatible with Microchip’s MPLAB IDE, and the PICkit 2 interface, and can program all popular PIC 5V microcontrollers including the PIC16F84A, PIC16F628, PIC18F458 and PIC16F877.

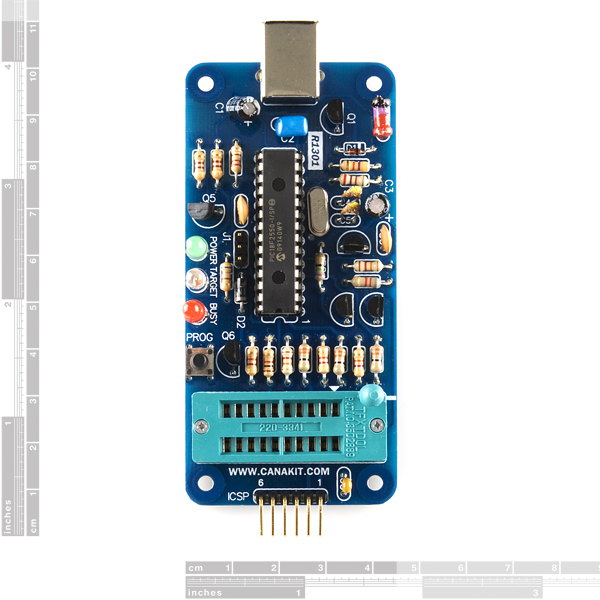

This PIC Programmer uses a USB port for power and connection to the computer, as opposed to the traditional serial port, eliminating the need for a separate power supply. The PIC Programmer offers In-circuit programming through a standard 6-pin ICSP connector as well as a built-in 20-pin ZIF socket for easy programming of any PIC of up to 20-pins right on the programmer. Higher pin count PICs can also be programmed, but through the ICSP connection header.

Standalone windows programming software, fully supported by Microchip, is available for download. The firmware of the USB PIC Programmer is also fully updatable as new devices are released and updates to the firmware can be easily downloaded via Microchip’s official website.


  • USB Connection (cable NOT Included)
  • Does not require a power supply
  • 100% compatible with Microchip’s MPLAB IDE
  • Standalone Windows Programming Software available for download.
  • 20-pin ZIF socket for easy programming and removal
  • Supports a wide range of PIC Microcontrollers from 8-Pin to 20-Pin
  • ICSP connector for programming of any PIC (8-pin to 40-pin)


Currently Supported Devices:

Important Note: Only 5V Operating Voltage versions of PICs listed below are supported with the UK1301.

Baseline Devices

PIC10F200, 202, 204, 206
PIC10F220, 222
PIC12F508, 509, 510, 519
PIC16F505, 506, 526
PIC16F54, 57, 59

Midrange Devices

PIC12F609, HV609
PIC12F615, HV615
PIC12F629, 635, 675, 683
PIC16F610, HV610
PIC16F616, HV616
PIC16F627, 628
PIC16F627A, 628A, 648A
PIC16F630, 631, 636, 639, 676
PIC16F677, 684, 685, 687
PIC16F688, 689, 690
PIC16F73, 74, 76, 77
PIC16F723, 724, 726, 727
PIC16F737, 747, 767, 777
PIC16F785, HV785
PIC16F84A, 87, 88
PIC16F818, 819
PIC16F870, 871, 872
PIC16F873, 874, 876, 877
PIC16F873A, 874A, 876A, 877A
PIC16F882, 883, 884, 886, 887
PIC16F913, 914, 916, 917
PIC16F1933, 1934, 1936, 1937
PIC16F1938, 1939
PIC16LF1933, 1934, 1936, 1937
PIC16LF1938, LF1939

PIC18F Devices

PIC18F242, 252, 442, 452
PIC18F248, 258, 448, 458
PIC18F1220, 1320, 2220, 2320
PIC18F1230, 1330
PIC18F2221, 2321
PIC18F2331, 2410, 2420, 2431
PIC18F2450, 2455, 2458, 2480
PIC18F2510, 2515, 2520, 2523
PIC18F2550, 2553, 2580, 2585
PIC18F2610, 2620, 2680
PIC18F2682, 2685
PIC18F4220, 4221
PIC18F4320, 4321, 4331
PIC18F4410, 4420, 4423
PIC18F4431, 4450, 4455
PIC18F4458, 4480
PIC18F4510, 4515, 4520, 4523
PIC18F4525, 4550, 4553, 4580
PIC18F4610, 4620, 4680
PIC18F4682, 4685
PIC18F6310, 6390, 6393
PIC18F6410, 6490, 6493
PIC18F6520, 6525, 6527, 6585
PIC18F6620, 6621, 6622, 6627
PIC18F6628, 6680
PIC18F6720, 6722, 6723
PIC18F8310, 8390, 8393
PIC18F8410, 8490, 8493
PIC18F8520, 8525, 8527, 8585
PIC18F8621, 8620, 8622, 8627
PIC18F8628, 8680
PIC18F8720, 8722, 8723
PIC18F24J10, F25J10, F44J10, F45J10
PIC18LF24J10, LF25J10, LF44J10, LF45J10
PIC18F24J11, F25J11, F44J11, F45J11
PIC18LF24J11, LF25J11, LF44J11, LF45J11
PIC18F26J11, F46J11
PIC18LF26J11, LF46J11
PIC18F24J50, F25J50, F44J50, F45J50
PIC18LF24J50, LF25J50, LF44J50, LF45J50
PIC18F26J50, F46J50
PIC18LF26J50, LF46J50
PIC18F63J11, 63J90, 64J11, 64J90
PIC18F65J10, 65J11, 65J15
PIC18F65J50, 65J90
PIC18F66J10, 66J11, 66J15, 66J16
PIC18F66J50, 66J55, 66J60, 66J65
PIC18F67J10, 67J11, 67J50, 67J60
PIC18F83J11, 83J90, 84J11, 84J90
PIC18F85J10, 85J11, 85J15, 85J50
PIC18F86J10, 86J11, 86J15, 86J16
PIC18F86J50, 86J55, 86J60, 86J65
PIC18F87J10, 87J11, 87J50, 87J60
PIC18F96J60, 96J65
PIC18F13K22, LF13K22, F14K22, LF14K22
PIC18F13K50, 14K50
PIC18F23K20, 24K20, 25K20, 26K20
PIC18F43K20, 44K20, 45K20, 46K20

PIC24 Devices

PIC24F04KA200, 04KA201
PIC24F08KA101, 08KA102
PIC24F16KA101, 16KA102
PIC24FJ16GA002, 16GA004
PIC24FJ32GA002, 32GA004
PIC24FJ32GA102, 32GA104
PIC24FJ32GB002, 32GB004
PIC24FJ48GA002, 48GA004
PIC24FJ64GA002, 64GA004
PIC24FJ64GA102, 64GA104
PIC24FJ64GB002, 64GB004
PIC24FJ64GA006, 64GA008, 64GA010
PIC24FJ64GB106, 64GB108, 64GB110
PIC24FJ96GA006, 96GA008, 96GA010
PIC24FJ128GA006, 128GA008, 128GA010
PIC24FJ128GA106, 128GA108, 128GA110
PIC24FJ128GB106, 128GB108, 128GB110
PIC24FJ192GA106, 192GA108, 192GA110
PIC24FJ192GB106, 192GB108, 192GB110
PIC24FJ256GA106, 256GA108, 256GA110
PIC24FJ256GB106, 256GB108, 256GB110
PIC24HJ12GP201, 12GP202
PIC24HJ32GP202, 32GP204
PIC24HJ32GP302, 32GP304
PIC24HJ64GP202, 64GP204
PIC24HJ64GP206, 64GP210, 64GP506
PIC24HJ64GP502, 64GP504, 64GP510
PIC24HJ128GP202, 128GP204
PIC24HJ128GP206, 128GP210, 128GP306
PIC24HJ128GP502, 128GP504
PIC24HJ128GP506, 128GP510
PIC24HJ256GP206, 256GP210, 256GP610

dsPIC30 Devices

dsPIC30F2010, 2011, 2012
dsPIC30F2020, 2023
dsPIC30F 3010, 3011, 3012
dsPIC30F3013, 3014
dsPIC30F4011, 4012, 4013
dsPIC30F5011, 5013, 5015, 5016
dsPIC30F6010A, 6011A, 6012A
dsPIC39F6013A, 6014A, 6015

dsPIC33 Devices

dsPIC33FJ12GP201, 12GP202
dsPIC33FJ32GP202, 32GP204
dsPIC33FJ32GP302, 32GP304
dsPIC33FJ64GP202, 64GP204
dsPIC33FJ64GP206, 64GP306, 64GP310
dsPIC33FJ64GP706, 64GP708, 64GP710
dsPIC33FJ64GP802, 64GP804
dsPIC33FJ128GP202, 128GP204
dsPIC33FJ128GP206, 128GP306, 128GP310
dsPIC33FJ128GP706, 128GP708, 128GP710
dsPIC33FJ128GP802, 128GP804
dsPIC33FJ256GP506, 256GP510, 256GP710
dsPIC33FJ06GS101, 06GS102, 06GS202
dsPIC33FJ16GS402, 16GS404
dsPIC33FJ16GS502, 16GS504
dsPIC33FJ12MC201, 12MC202
dsPIC33FJ32MC202, 32MC204
dsPIC33FJ32MC302, 32MC304
dsPIC33FJ64MC202, 64MC204
dsPIC33FJ64MC506, 64MC508, 64MC510
dsPIC33FJ64MC706, 64MC710
dsPIC33FJ64MC802, 64MC804
dsPIC33FJ128MC202, 128MC204
dsPIC33FJ128MC506, 128MC510
dsPIC33FJ128MC706, 128MC708, 128MC710
dsPIC33FJ128MC802, 128MC804
dsPIC33FJ256MC510, 256MC710

PIC32 Devices

PIC32MX320F032H, 320F064H
PIC32MX320F128H, 320F128L
PIC32MX340F128H, 340F128L
PIC32MX360F256L, 360F512L
PIC32MX440F128L, 440F128H
PIC32MX460F256L, 460F512L

KEELOQ® HCS Devices*

HCS200, 201
HCS300, 301, 320
HCS360, 361, 362

11 Series Serial EEPROM Devices*


24 Series Serial EEPROM Devices*

24LC/AA01B, 02B, 04B, 08B
24LC/AA16B, 32A
24LC/AA/FC64, 128, 256, 512

25 Series Serial EEPROM Devices*

25LC/AA010A, 020A, 040A
25LC/AA080A, 080B, 160A, 160B
25LC/AA320A, 640A
25LC/AA128, 256, 512, 1024

93 Series Serial EEPROM Devices*

25LC/AA/C46A, 46B, 46C
25LC/AA/C56A, 56B, 56C
25LC/AA/C66A, 66B, 66C
25LC/AA/C47A, 76B, 76C
25LC/AA/C48A, 86B, 86C

MCP250xx CAN Devices*

MCP25020, 25025
MCP25050, 25055

* These devices can only be used through the ICSP connection header and not through the ZIF socket.
