RS485 Shield V2
Shield Arduino para comunicación serial RS485, la cual permite hasta 32 dispositivos a lo largo de 1200 metros.
COD: SFDEV12965
Peso: 0.045 Kg
Disponibilidad: En Stock
ARS 36067.00
El producto no está disponible para la venta en este momento
Características
Our friends over at LinkSprite have made this nifty little RS485 Shield, now you will be able to have a communication port for your field bus directly connected to your Arduino! Even though the RS485 is sometimes thought as an “archaic” protocol, it will allow up to 32 devices to communicate through the same data line over a cable length of up to 4000ft with a maximum data rate of 10Mbit/s. Those aren’t bad numbers!

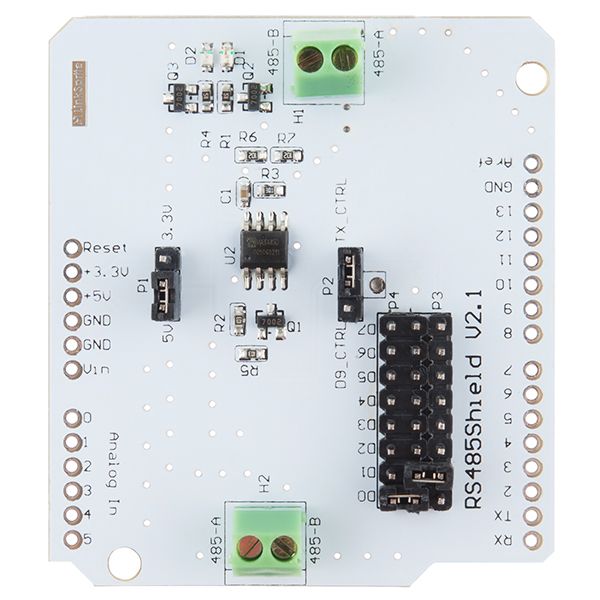

This version of the RS485 shield removes the optional DB9 connector bay and adds a second 2-pin screw terminal and the ability to choose two pins from your Arduino’s D0 to D7 as Software Serial Ports to communicate with the shield.

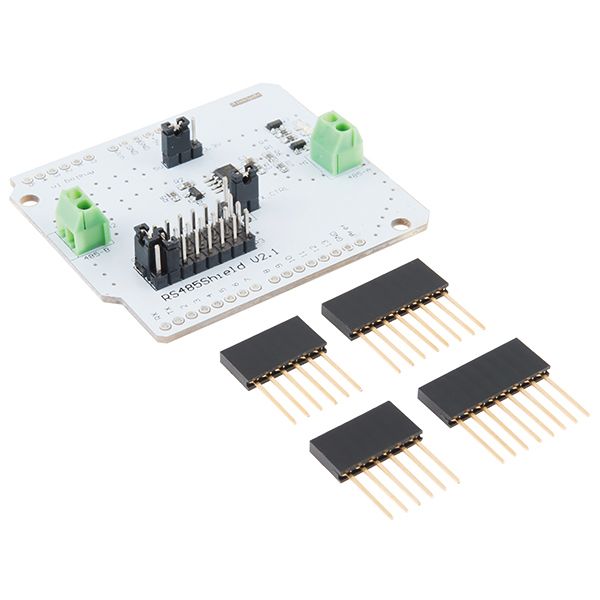

This shield does come without its headers separate so a small amount of soldering will be required before attaching it to your Arduino device.
Documents:
Datasheet (MAX481CSA) (439 Kb)
