LilyPad Tri-Color LED
Led tricolor de plataforma LilyPad con capacidad de crear cualquier color RGB.
COD: SFDEV08467
Peso: 0.001 Kg
Disponibilidad: En Stock
ARS 14767.00
El producto no está disponible para la venta en este momento
Características

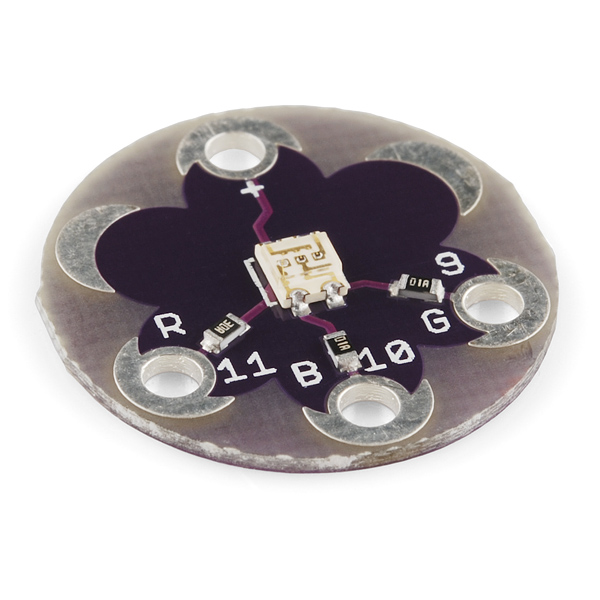

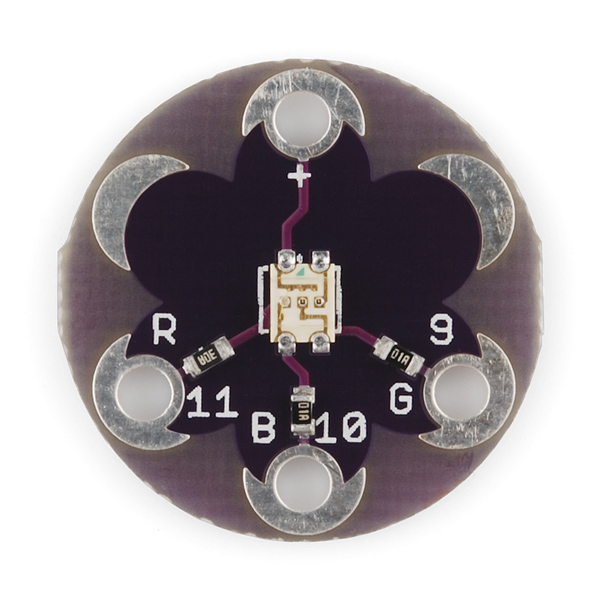

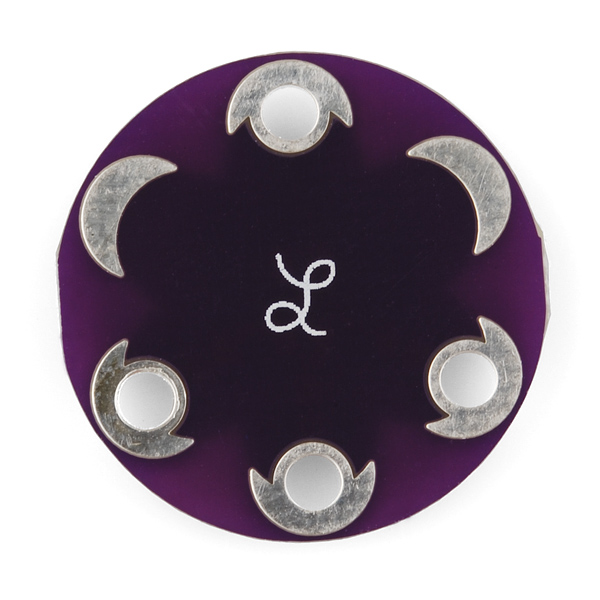

Blink any color you need! Use the Tri-Color LED board as a simple indicator, or by pulsing the red, green, and blue channels, you can create any color. Very bright output. This is a common anode design - to turn on a channel you simply need to ground one of the R/G/B pins to illuminate that channel.
LilyPad is a wearable technology developed by Leah Buechley and cooperatively designed by Leah and SparkFun. Each LilyPad was creatively designed to have large connecting pads to allow them to be sewn into clothing. Various input, output, power, and sensor boards are available. They’re even washable!
Note: A portion of this sale is given back to Dr. Leah Buechley for continued development and education of e-textiles.

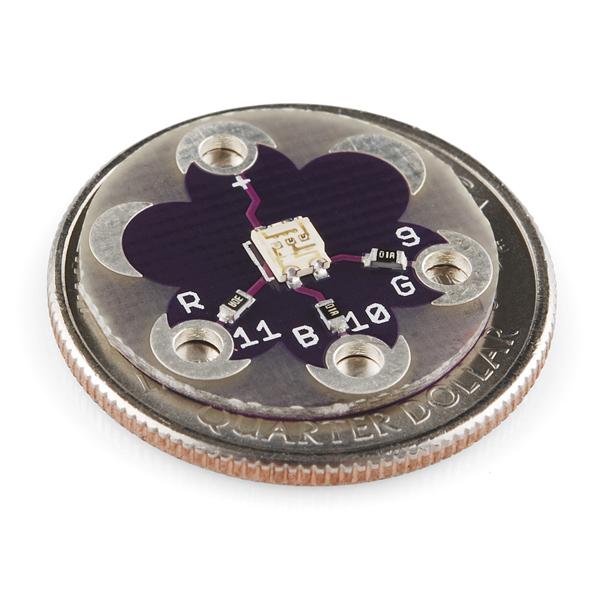

Dimensions:
- 20mm outer diameter
- Thin 0.8mm PCB
Schematic (21 Kb)
