Triple Output LED RGB - SMD

Triple Output LED RGB - SMD

Led RGB de montaje superficial.

COD: SFCOM07844

Peso: 0.000 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 35.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

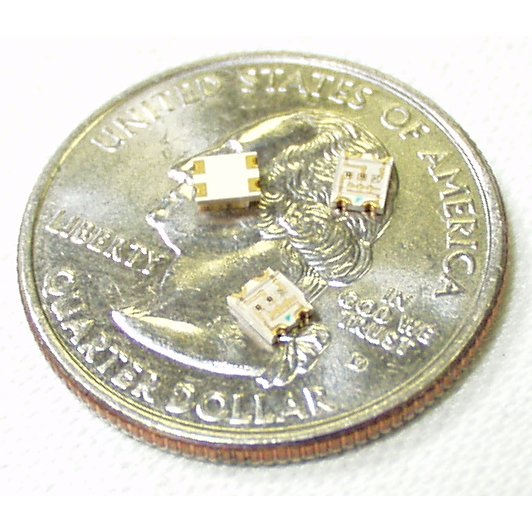

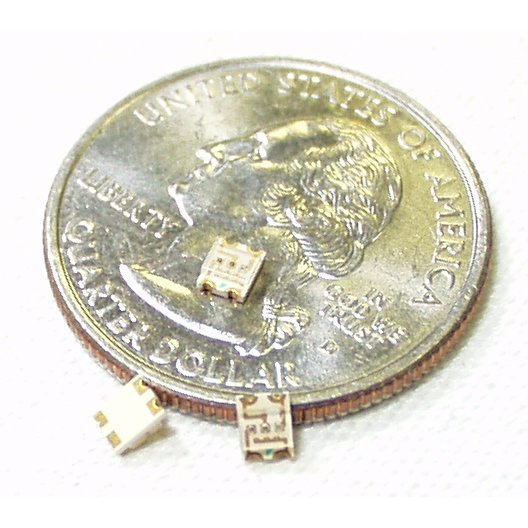

This is the very popular RGB combo but in SMD form. These units have four pads with a common anode configuration. Use this one LED for three status indicators or pulse width modulate all three and get mixed colors! Simple breakout board available below.

Iv (Typical):

  • Red: 81mcd
  • Green: 130mcd
  • Blue: 54mcd

Vf (Typical):

  • Red: 2.0V
  • Green: 3.5V
  • Blue: 3.5V

Wavelength (?D - nm):

  • Red: 615nm
  • Green: 530nm
  • Blue: 470nm
