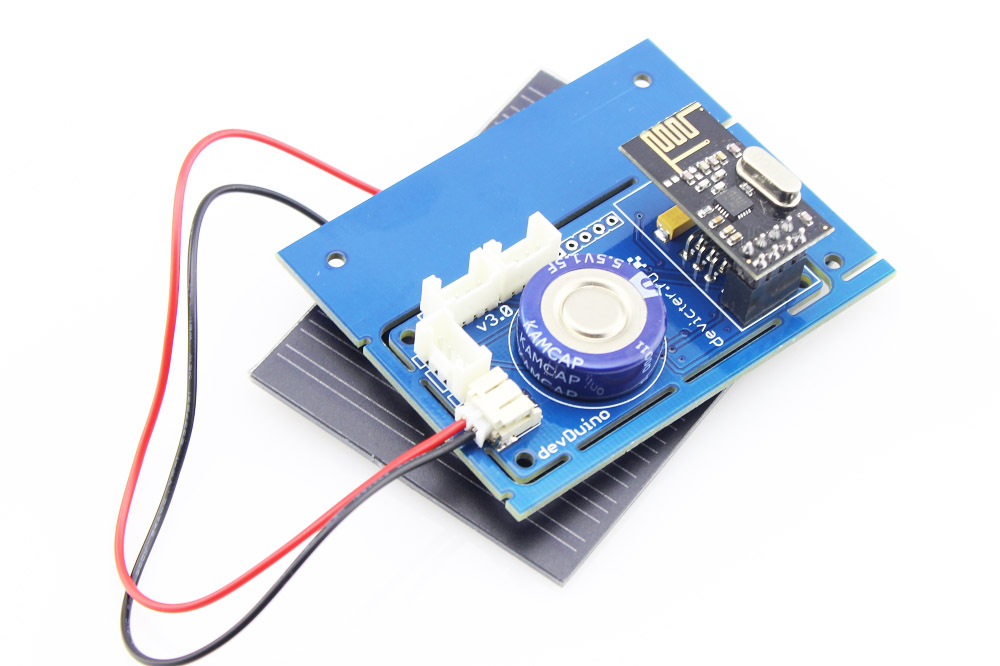

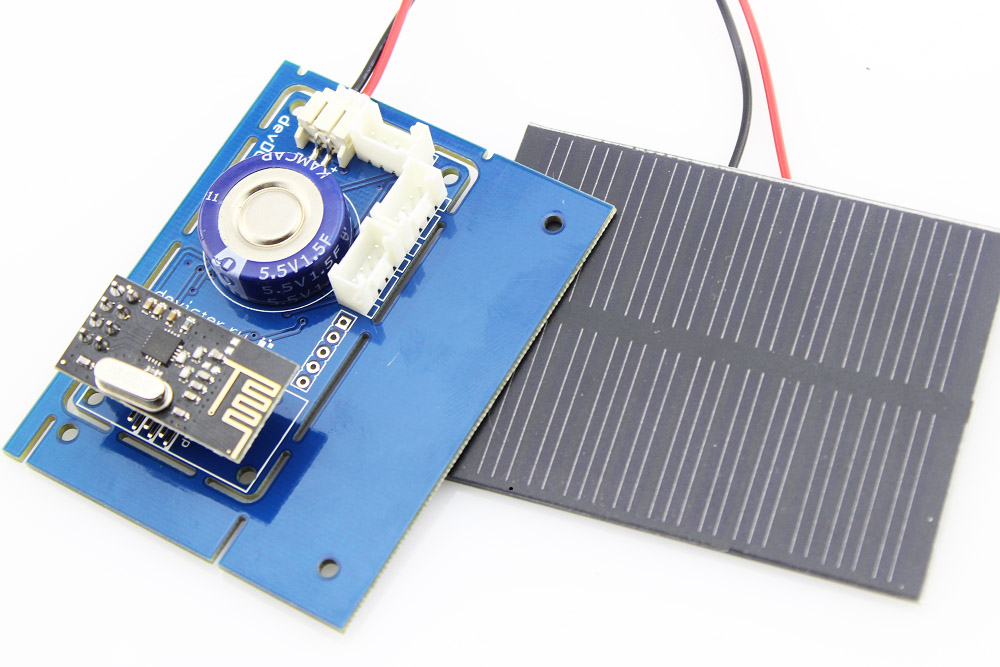

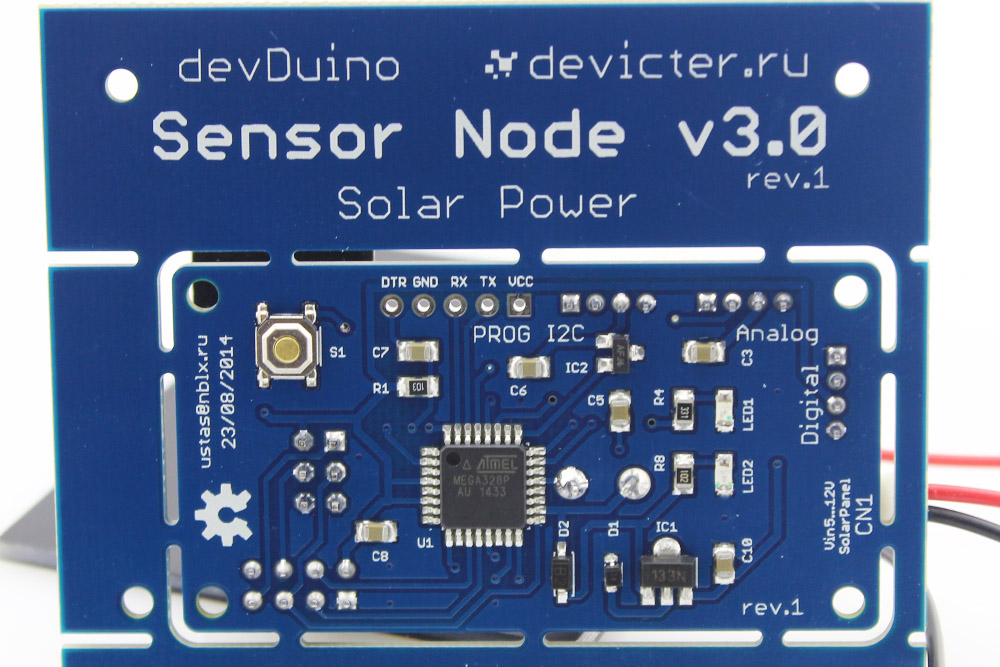

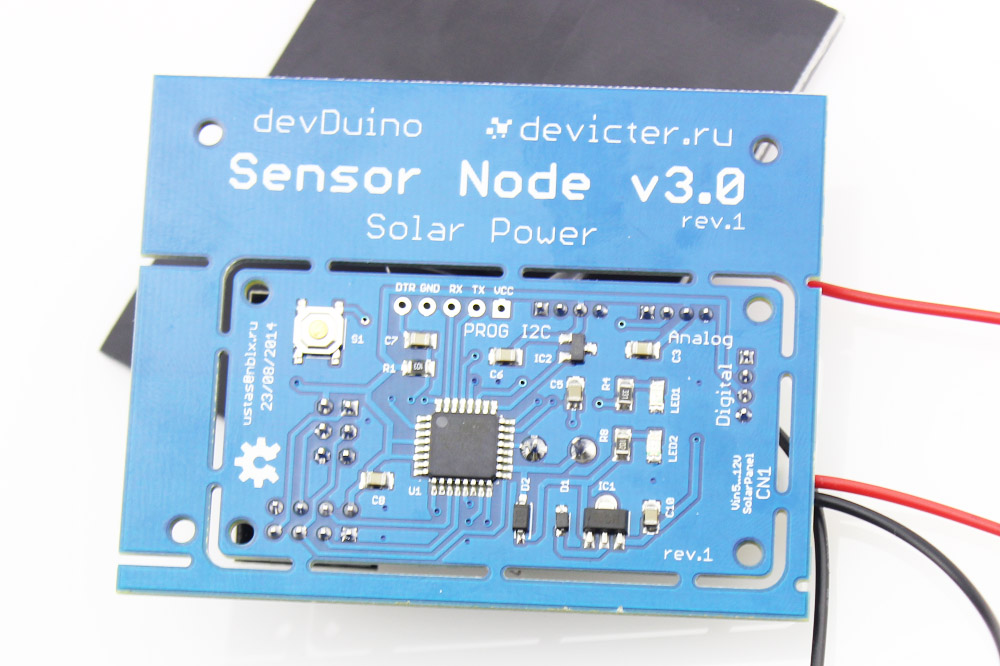

devDuino Sensor Node V3 (ATmega 328)

devDuino Sensor Node V3 (ATmega 328)

LIQUIDACION HASTA AGOTAR STOCK. Board compatible Arduino (con ATmega328) pensado como nodo inalámbrico. Incluye módulo de comunicación nRF24L01+ y panel solar con super capacitor para alimentación.

COD: ECDD13430A

Peso: 0.050 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 15469.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

devDuino Sensor Node V3 is a compact Arduino-compatible microcontroller and is designed to build wireless networks based on transceiver  nRF24L01+. You can easily connect other sensors or actuators to this platform, to build your remote monitoring or controlling system.

Features

  • Built on Arduino-compatible architecture
  • Clock frequency - 8MHz (may be reduced in order to reduce energy consumption by up to 1MHz)
  • Built-in temperature sensor MCP9700 (-40 °C +125 °C,accuracy of ± 2 °C)
  • ISP programming interface (recommended)
  • Serial programming interface
  • Built-in button
  • Built-in LED red (showing charge supercapacitors)
  • Built-in LED green (user configurable)
  • 3 GROVE-compatible connector: I2C, Analog, Digital
  • Powered by 0.5W Solar Panel with connector JST 2.0 mm and Super capacitor (from 5 to 12 V)
  • Possible to reduce the size of the board (31.4 x 57.3 mm)
  • Approximate life of 10 years (with the correct code optimization)
  • Dimensions 55 x 70 mm

Package Include

  • DevDuino Sensor Node V3 – 1 pcs.
  • 0.5W Solar Panel – 1 pcs.
  • nRF24L01+ Module – 1 pcs.

Documentation

        Please visit the  wiki page for more information about this product. We will be very grateful to you for helping us improve our documentation. Add more description or demo code. For technical support, please publish your question on our  blog
