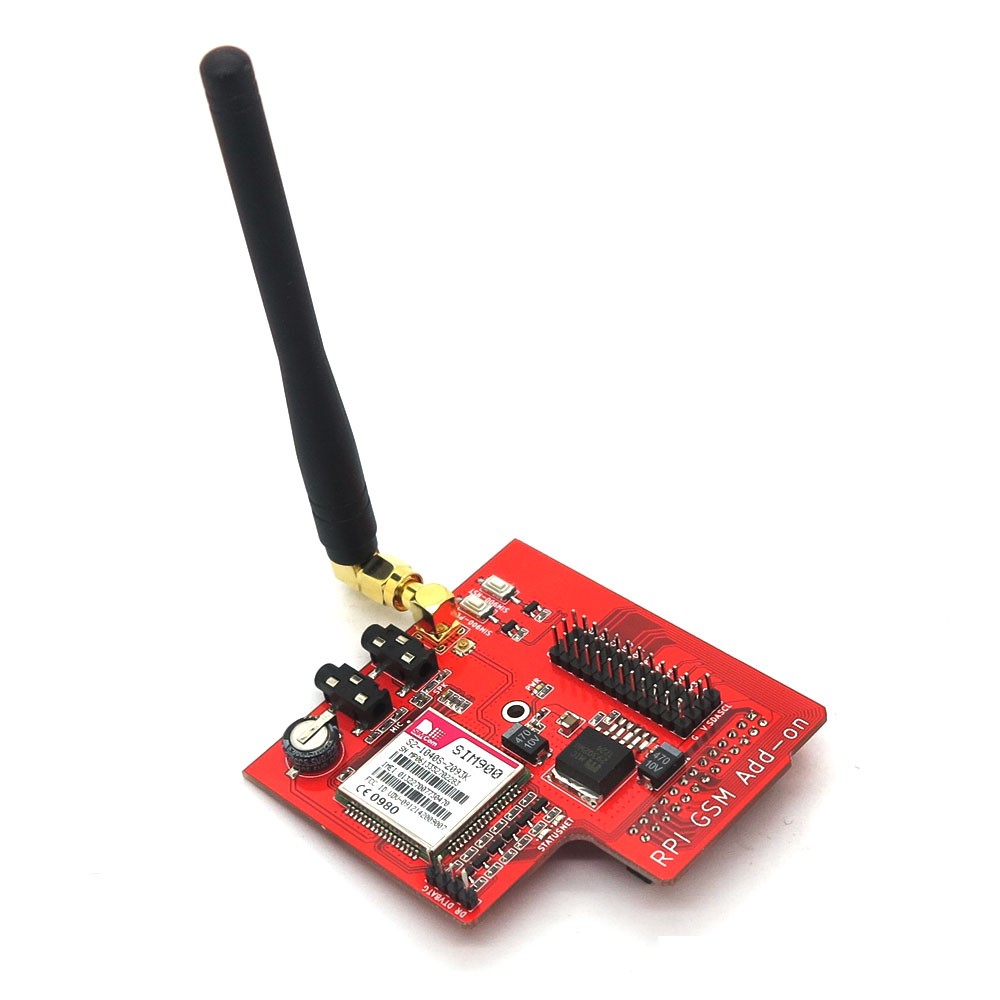

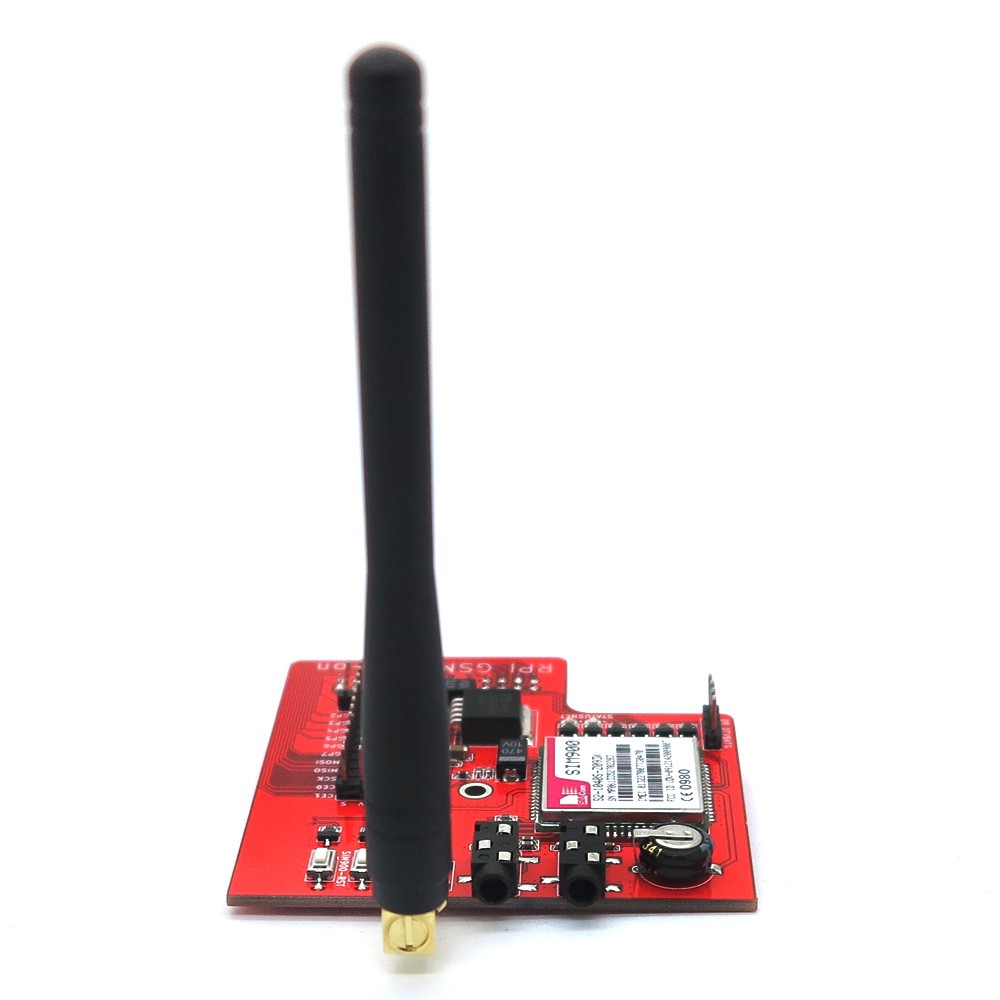

Raspberry PI SIM900 GSM/GPRS Add-on

Raspberry PI SIM900 GSM/GPRS Add-on

Módulo GSM cuatribanda para Raspberry Pi B y B+. Está basado en SIM900.

COD: IM131224002

Peso: 0.050 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 1959.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Overview

Raspberry PI GSM Add-on is customized for Raspberry Pi interface based on SIM900 quad-band GSM/GPRS module. AT commands can be sent via the serial port on Raspberry Pi, thus functions such as dialing and answering calls, sending and receiving messages and surfing on line can be realized. Moreover, the module supports powering-on and resetting via software.

Features

  • Quad-Band 850/ 900/ 1800/ 1900 MHz
  • GPRS multi-slot class 10/8GPRS mobile station class B
  • Compliant to GSM phase 2/2+Class 4 (2 W @850/ 900 MHz)
  • Class 1 (1 W @ 1800/1900MHz)
  • Control via AT commands (GSM 07.07 ,07.05 and SIMCOM enhanced AT Commands)
  • Low power consumption: 1.5mA(sleep mode)
  • Operation temperature: -40°C to +85 °C

This product is compatible with Raspberry Pi B+ as well.

Specification

Module Type No
Weight 50.00g
Model IM131224002
Board Size 73.8mm X 70mm X 1.6mm
Version V1.0
Operation Level Digital 3.3V
Power Supply External 5V

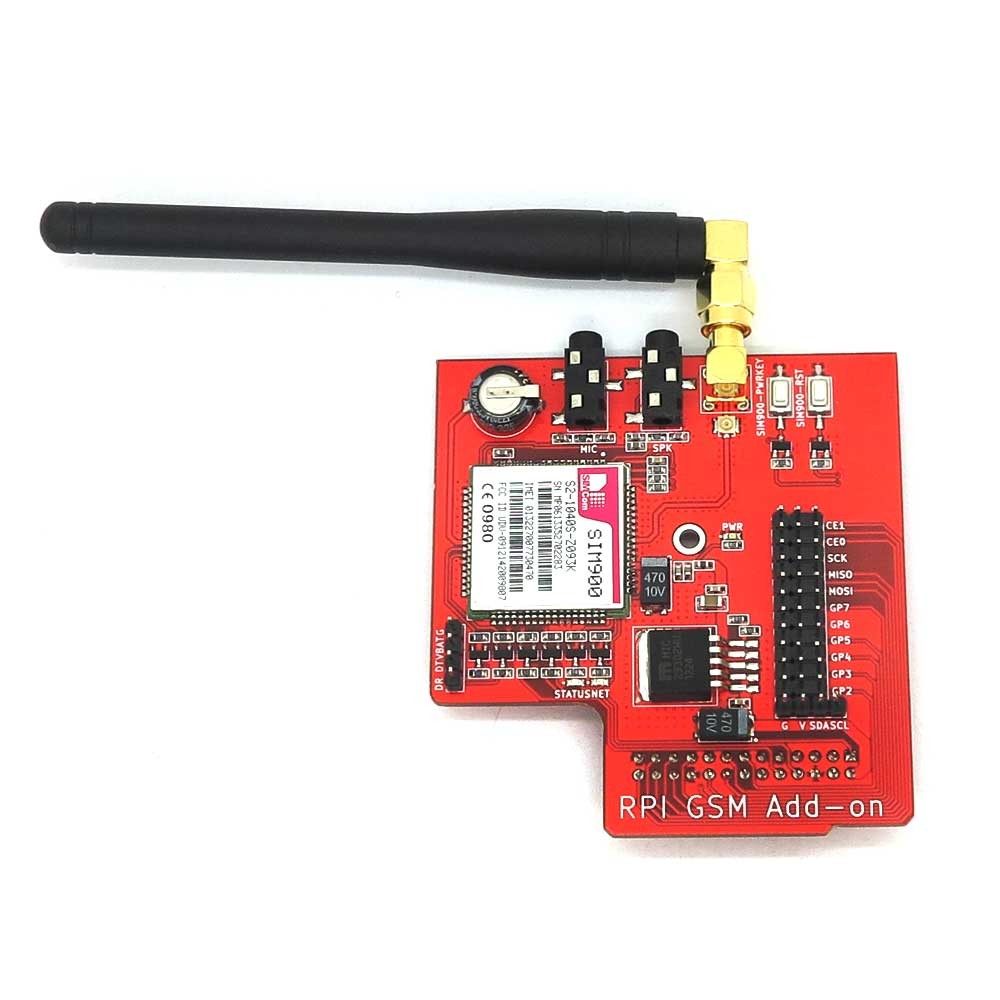

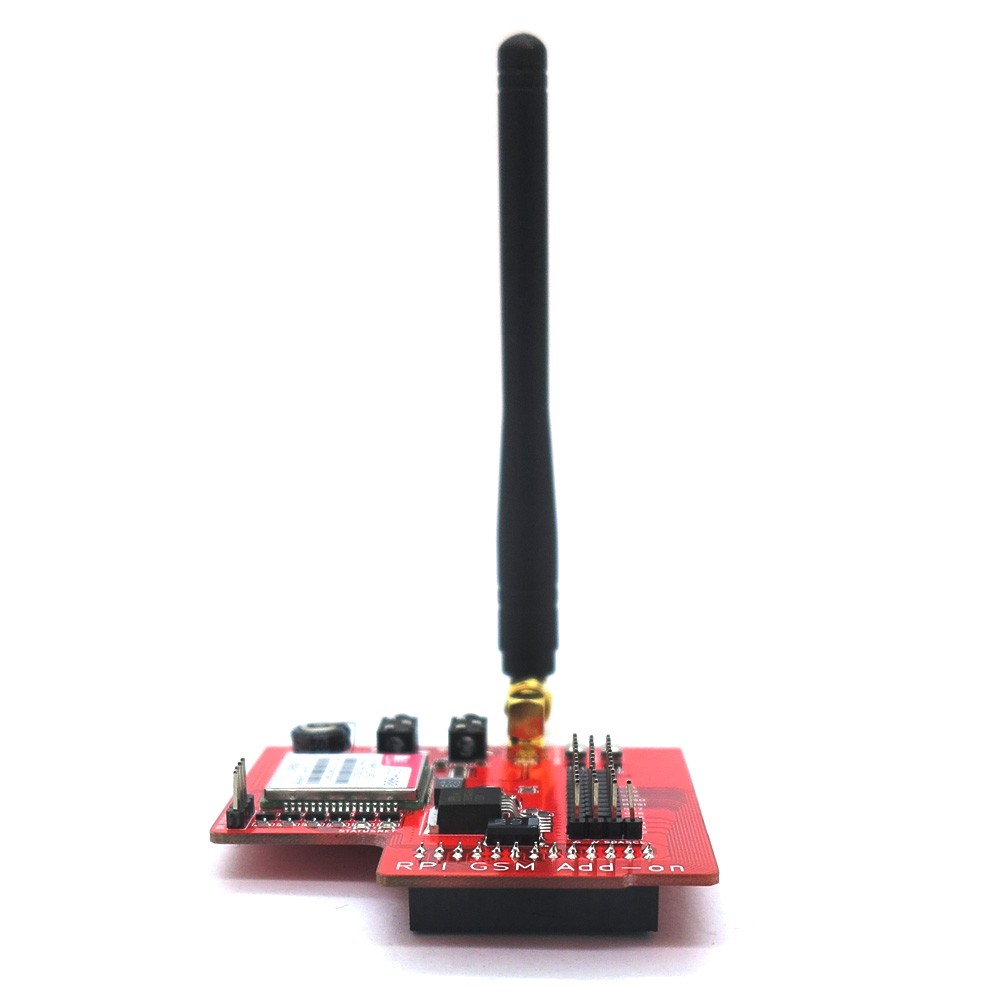

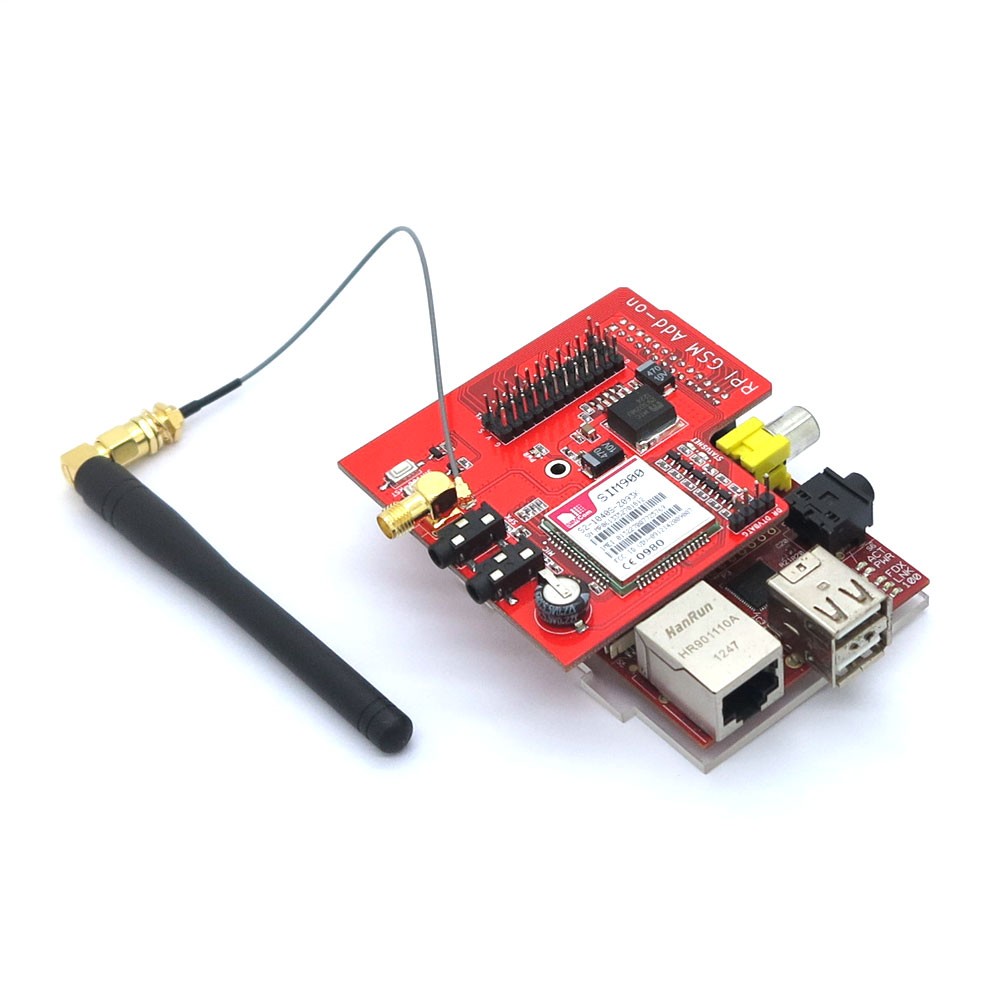

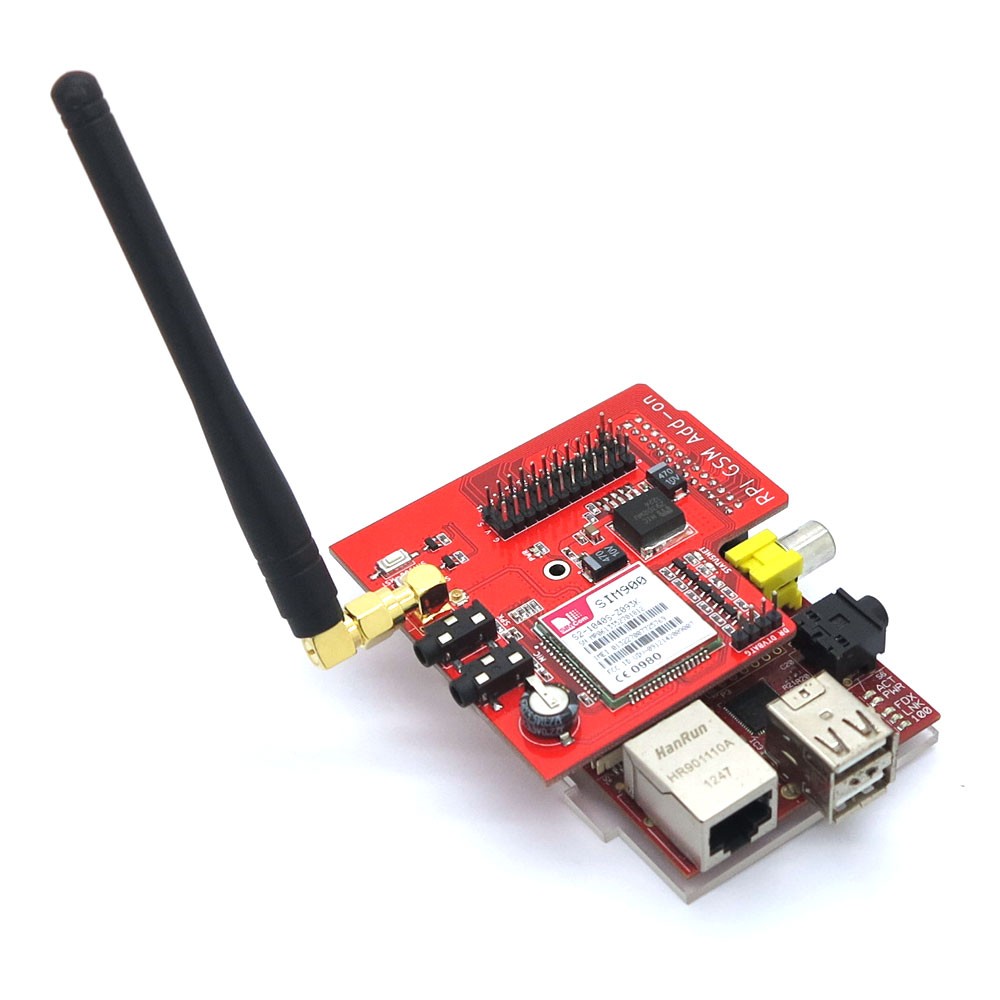

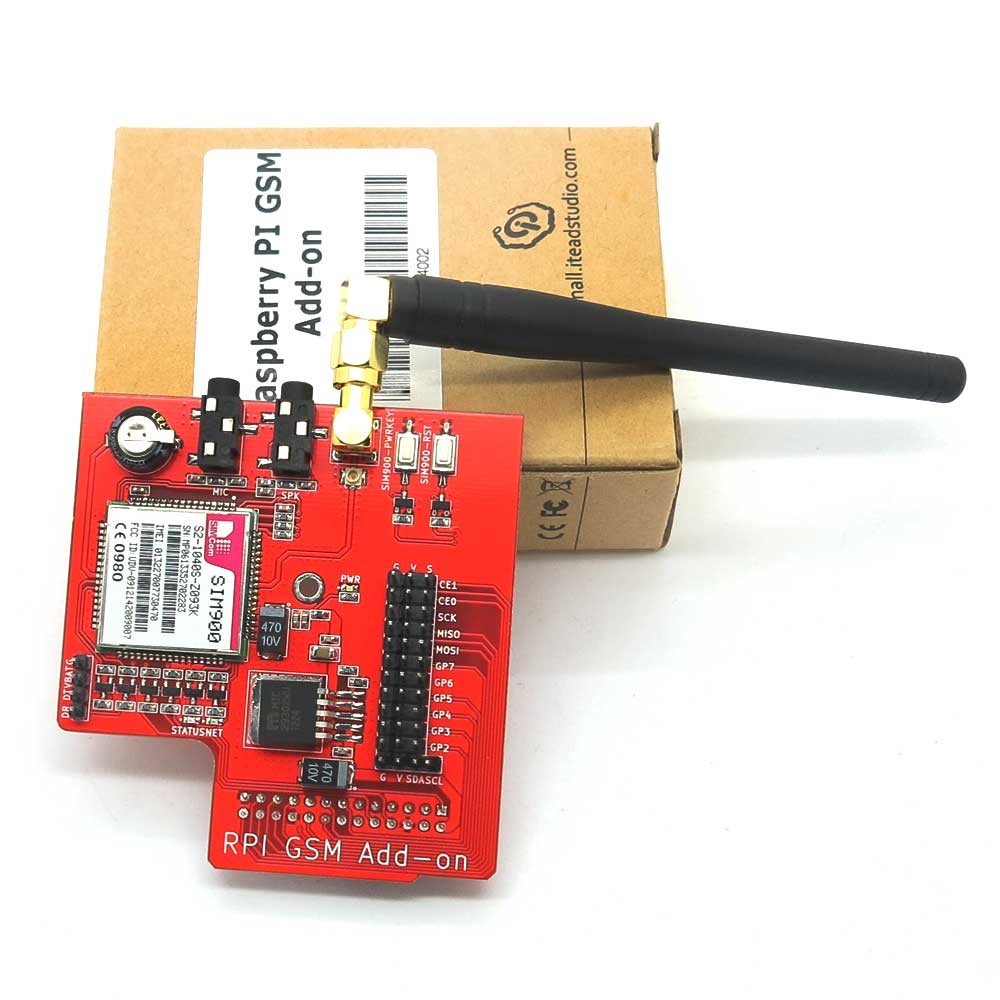

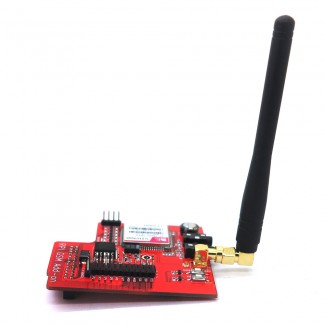

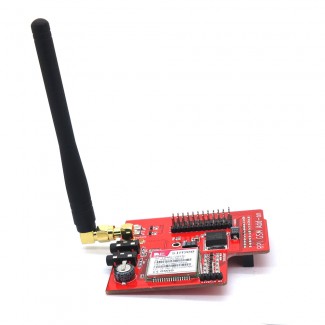

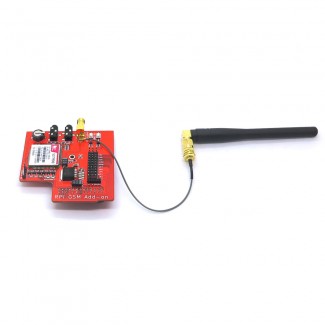

Galería de Imágenes
