Servo - Generic High Torque Full Rotation (Standard Size)

Servo - Generic High Torque Full Rotation (Standard Size)

Servo de alto torque y de rotación completa. Trabaja a 6 Voltios y con una velocidad de de 70 RPM.

COD: SFROB09347

Peso: 0.044 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 37209.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description

Here, for all your mechatronic needs, is a simple, high quality continuous full-rotation servo motor. This servo is able to take in 6 volts and deliver 66.7 oz-in. of maximum torque at 70 r/min.

A standard 3-pin power and control cable is attached and all hardware listed below is included.

Features:

  • Voltage: 4.8-6.0 Volts
  • Torque: 45.8/66.7 oz-in. (4.8/6.0V)
  • Speed: 60/70 r/min (4.8/6.0V)
  • Rotation: 360°
  • Dual Ball Bearing
  • 4 Plastic Gears + 1 Metal Gear
  • 25T Spline
  • Rest point adjustment

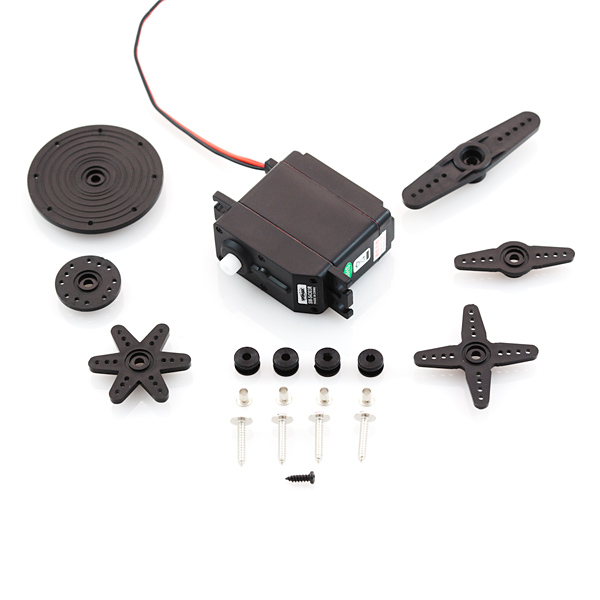

Includes:

  • 1x SM-S4303R High Torque Full Rotation Servo
  • 1x Mounting Screw
  • 1x Four Point Horn
  • 1x Six Point Horn
  • 2x Double Arm Horn (1x Large, 1x Medium)
  • 2x Circle Horn (1x Large, 1x Medium)
  • 4x Rubber Grommets
  • 4x 2x15mm Phillips Screw
  • 4x Brass Eyelets

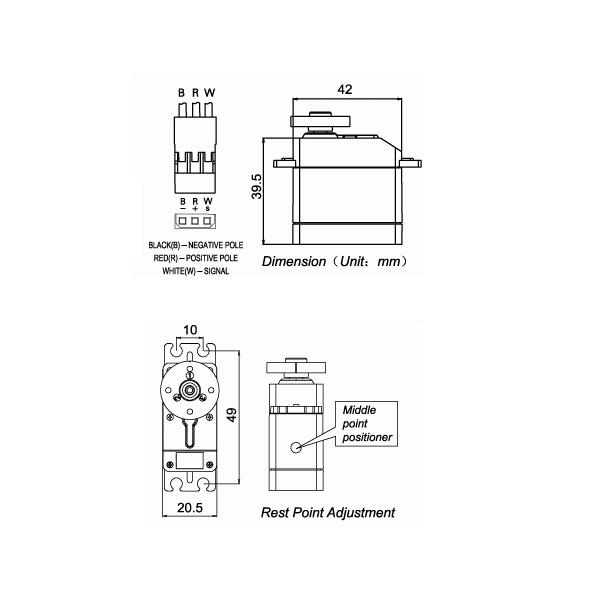

Dimensions:

  • 42 x 39.5 x 22.5mm
  • Wire length: 300mm
  • Weight: 44g

Galería de Imágenes

Comentarios

Escribir Comentario

OpenHacks (23/11/2015 - 16:00)

Hola Rodrigo, si, sirve para movimiento continuo (como para mover una rueda). Saludos!

Rodrigo (19/11/2015 - 23:20)

Que tal? Sirve para movimiento continuo? Por ejemplo que mueva una rueda
