Caudalímetro 1 pulgada

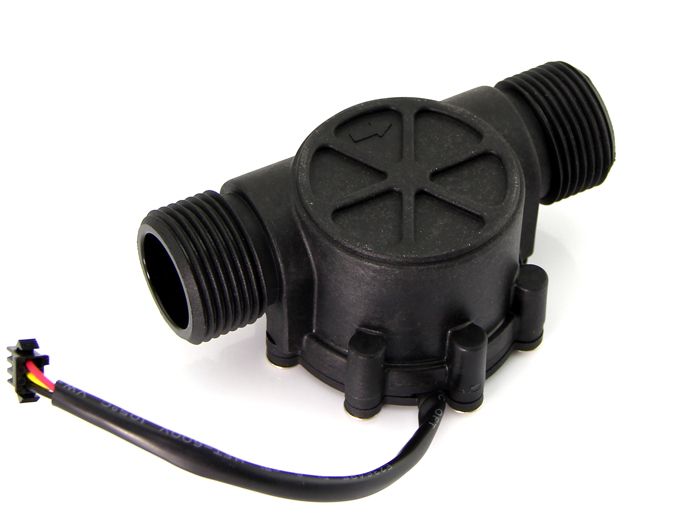

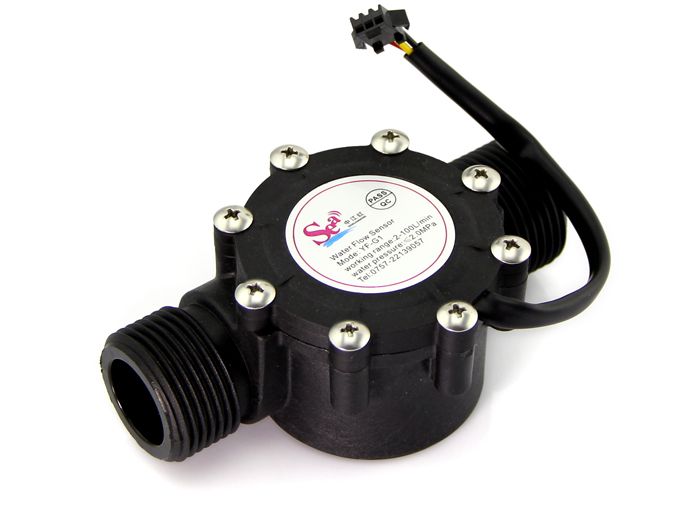

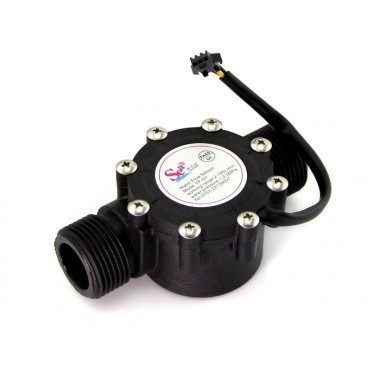

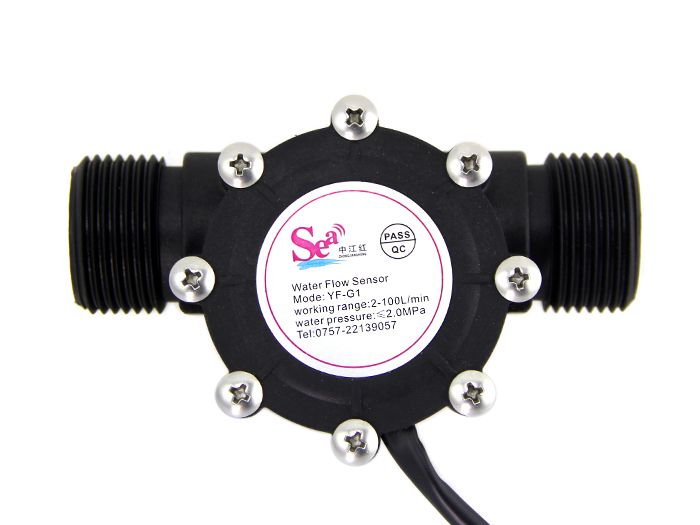

Caudalímetro plástico de 1" con sensor de efecto hall para utilizar con agua
COD: SE209015001
Peso: 0.160 Kg
Disponibilidad: Sin Stock
ARS 39976.00
El producto no está disponible para la venta en este momento
Características
ATENCION: Este sensor está diseñado para ser utilizado con agua. No utilizar este sensor con líquidos combustibles o corrosivos, como así tampoco con líquidos viscosos.
Water flow sensor consists of a plastic valve body, a water rotor, and a hall-effect sensor. When water flows through the rotor, rotor rolls. Its speed changes with different rate of flow. The hall-effect sensor outputs the corresponding pulse signal. This one is suitable to detect flow in water dispenser or coffee machine.
Features
- Compact, Easy to Install
- High Sealing Performance
- High Quality Hall Effect Sensor
- RoHS Compliant
Specifications
- Mini. Wokring Voltage: DC 4.5V
- Max. Working Current: 15mA (DC 5V)
- Working Voltage: DC 5V~24V
- Flow Rate Range: 2~100L/min
- Load Capacity: ≤10mA (DC 5V)
- Operating Temperature: ≤80°C
- Liquid Temperature: ≤80°C
- Operating Humidity: 35%~90%RH
- Water Pressure: ≤1.75MPa
- Storage Temperature: -25°C+ 80°C
- Storage Humidity: 25%~95%RH
Wiki Manual (798 Kb)
