RGB Controller

RGB Controller

Controlador para tiras flexibles de leds RGB

COD: EDDR00601A

Peso: 0.065 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 7533.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

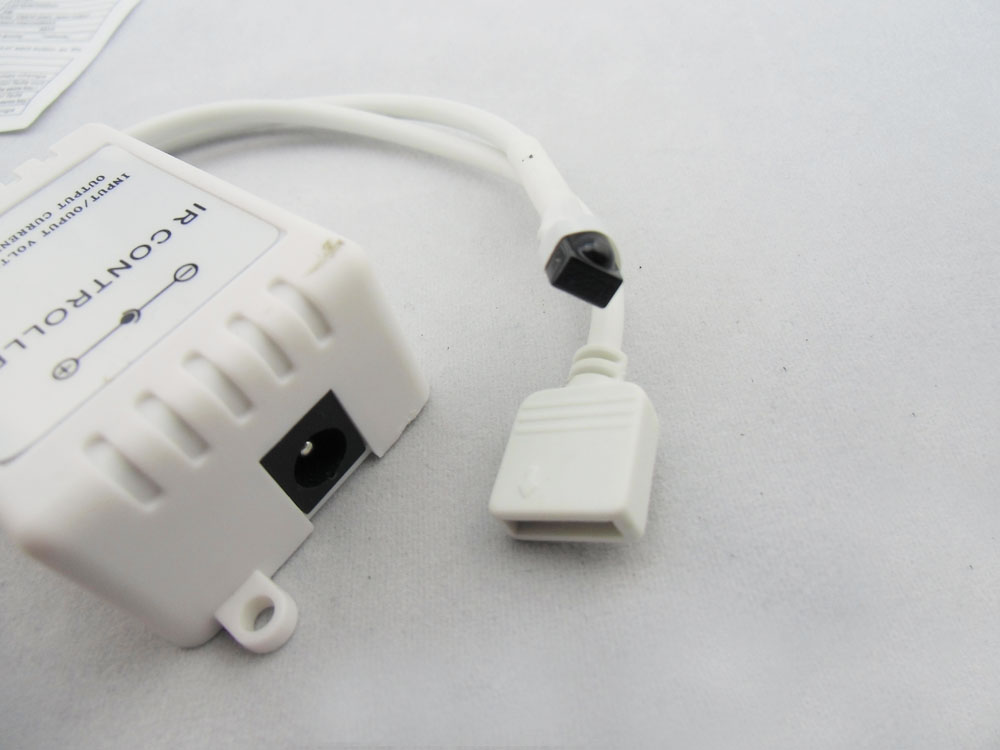

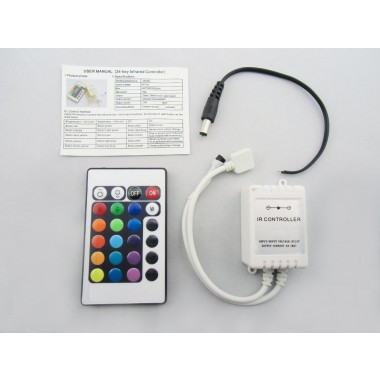

This RGB Controller with IR wireless remote, adopts the advanced micro control unit, which is used to control different color changes of a variety of LED lights such as point source of LED light, LED flexible strip(RGB LED Waterproof Flexi-Strip), LED wall washer lamp, glass curtain wall light, LED lighting module, advertisement box of LED lights and so on; It is convenient to connect, and easy to use; According to the actual need of customers, it can carry out hopping changing, gradual changing, strobe flash and other effects of change!

Specification

  • Voltage: DC 12V
  • Size: 64 * 34.5 * 22.5 mm

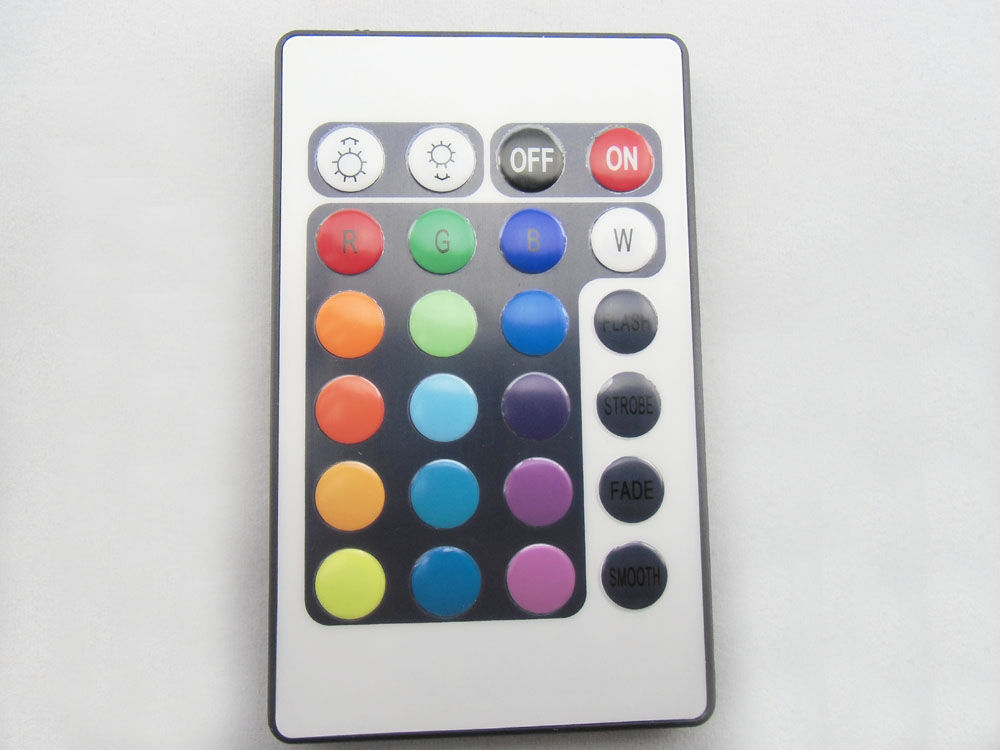

  • Remote Distance: 8m
  • Current: 2A x 3
  • Work Temperature: -20~60°C
  • Connecting mode: Common anode

Specification

Brightness
+
Brightness
-
OFF ON
Static Red Static green Static blue Static white
Static rose red Static light green Static sapphire blue 3 colors jumpy
Static orange Static green blue Static violet and grey 3 colors gradual
Static light yellow Static sky blue Static brown and purple 7 colors gradual
Static yellow Static cyan Static purple 7 colors jumpy

Caution

  • The input voltage of this controller should be follow the specifications, other high voltage would most probably destroy it
  • The 4-wires coming out of the controller can't be incorrectly interconnected, or short circuit could occur.
  • Connect the wires of the controller and LED fitting as per the instruction.
  • Don't peel off the label on the controller in case any indication information will be missed.
