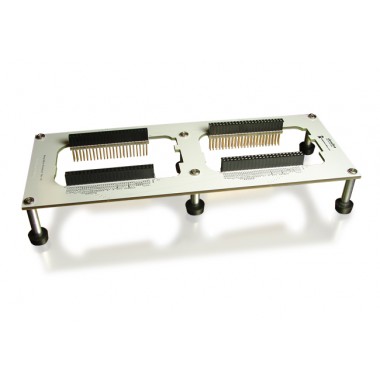

Breakout Cape
Módulo de conectrores que proveen accesibilidad a varios componentes de BeagleBone
COD: BBBRKT01
Peso: 0.220 Kg
Disponibilidad: Sin Stock
ARS 31188.00
El producto no está disponible para la venta en este momento
Características
Description

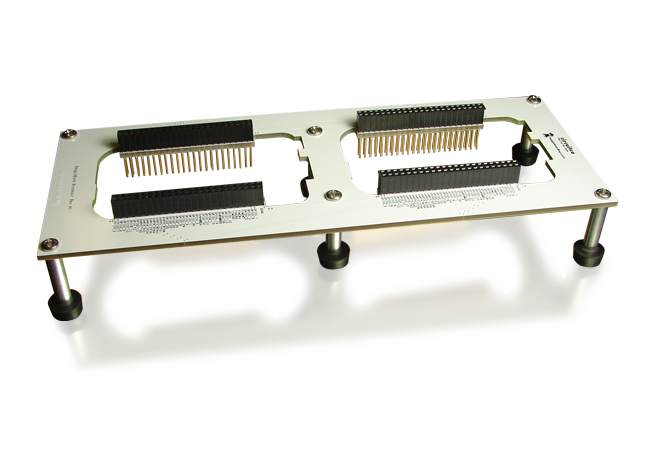

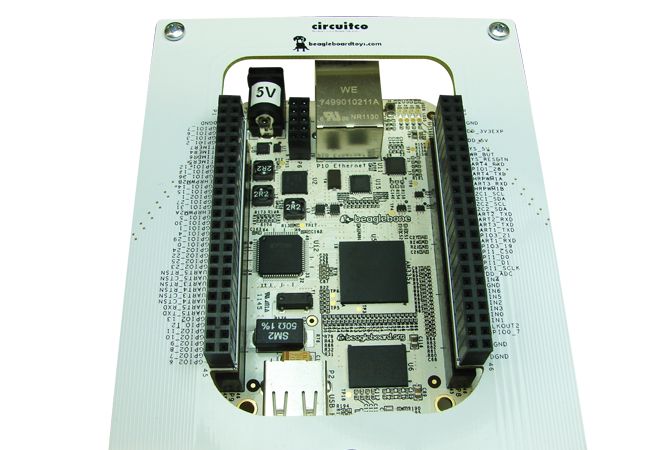

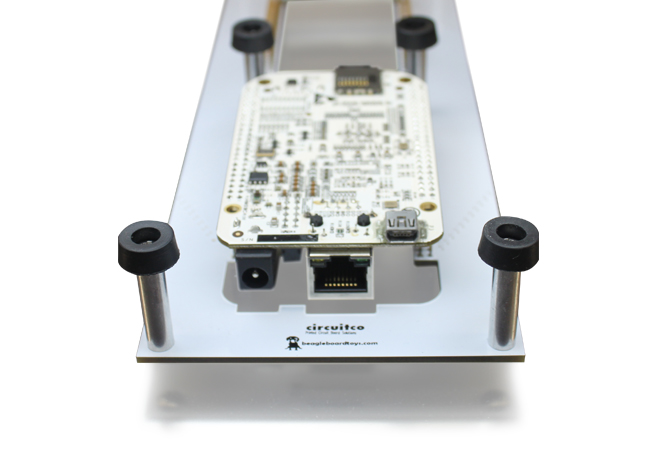

The BeagleBone Breakout Cape provides accessibility to the various BeagleBone components during troubleshooting. If you are using a BeagleBone, there is a good chance your BeagleBone is stacked with one or more capes; If this happens, signals and testpoints on the topside of the BeagleBone will not be accessible. The BeagleBone Breakout Cape solves this problem by separating a BeagleBone and its cape on two different sets of connectors. Each BeagleBone Breakout Cape is made by thick PCB and equipped with six standoffs for stress endurance and stability.
Software Support & Compatibility
No software support is required by this board. All revisions are compatible with BeagleBone and BeagleBone Black.
Components
| Connectors | Four 46-position headers |
Mechanical Specifications
| Size | 3.55" x 9.05" |
| Layers | 4 |
| PCB Thickness | .093" |
| RoHS Compliant | Yes |
Signal Usage
No signals are used by this cape.
Schematic (17 Kb)
Manufacturing files (742 Kb)
